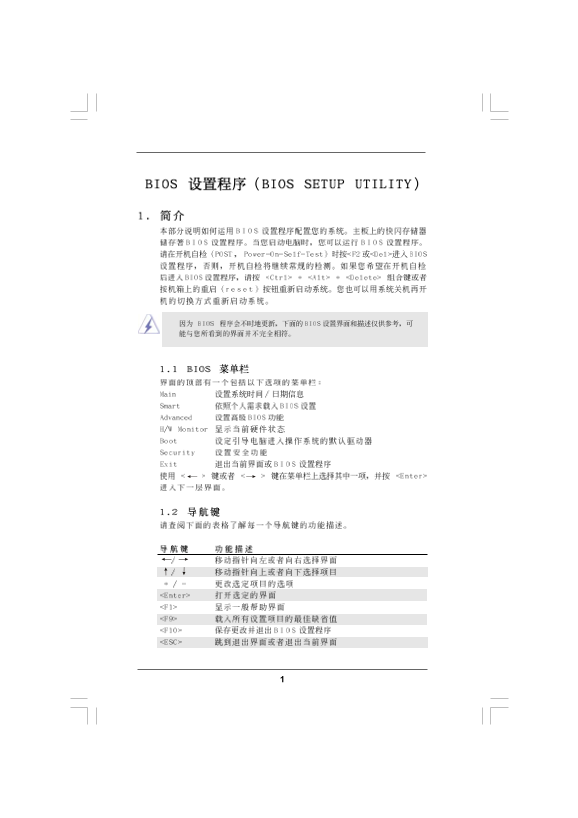

Page 2
BIOS SETUP UTILITY Main Smart H/W Monitor Boot Security Exit Advanced System Overview Use [Enter], [TAB] System Time :00:09] or [SHIFT-TAB] to System Date [Wed 06/24/2009] select field. BIOS Version M...
Page 4
BIOS SETUP UTILITY Main Smart Advanced H/W Monitor Boot Security Exit Options for CPU Advanced Settings WARNING Setting wrong values in below sections may cause system to malfunction. CPU Configuratio...
Page 5
BIOS SETUP UTILITY Advanced CPU Configuration Select the over clock mode. Overclock Mode [Auto] CPU Frequency (MHz) [200] PCIE Frequency (MHz) [100] Spread Spectrum [Auto] Boot Failure Guard [Enabled]...
Page 6
BIOS SETUP UTILITY Advanced CPU Configuration Select the over clock mode. Overclock Mode [Auto] CPU Frequency (MHz) [200] PCIE Frequency (MHz) [100] Spread Spectrum [Auto] Boot Failure Guard [Enabled]...
Page 8
BIOS SETUP UTILITY Advanced Memory Configuration Memory Clock [Auto] Memory Controller Mode [Unganged] Power Down Enable [Disabled] Bank Interleaving [Auto] Channel Interleaving [XOR of Address bit] T...
Page 12
BIOS SETUP UTILITY Advanced Chipset Settings To set DRAM Voltage. Onboard HD Audio [Auto] Panel [Auto] On Board Lan [Enabled] Graphics Adapter Primary [PCI] DRAM Voltage [Auto] Select Screen Select It...
Page 13
BIOS SETUP UTILITY Advanced ACPI Settings Select auto-detect or disable the STR Suspend To RAM [Disabled] feature. Away Mode Support [Disabled] Restore on AC Power Loss [Power Off] Ring-In Power On [D...
Page 14
BIOS SETUP UTILITY Advanced Configure onboard Storage Configuration serial ATA controller. Onboard SATA Controller [Enabled] SATA Operation Mode [IDE] IDE1 Master [Hard Disk] IDE1 Slave [Not Detected]...
Page 16
BIOS SETUP UTILITY Advanced Advanced PCI Pn P Settings Value in units of PCI clocks for PCI device latency timer PCI Latency Timer [32] register. PCI IDE Bus Master [Enabled] Select Screen Select Item...
Page 17
BIOS SETUP UTILITY Advanced Configure Super IO Chipset Allow BIOS to Enable or Disable Floppy On Board Floppy Controller [Enabled] Controller. Serial Port Address [3F8 IRQ4] Infrared Port Address [Dis...
Page 18
BIOS SETUP UTILITY Advanced USB Configuration To enable or disable the onboard USB USB Controller [Enabled] controllers. USB 2.0 Support [Enabled] Legacy USB Support [Enabled] Select Screen Select Ite...
Page 19
BIOS SETUP UTILITY Main Smart Advanced Monitor Boot Security Exit H/W Enable/Disable Hardware Health Event Monitoring CPU Quiet Fan Function. CPU Temperature Temperature CPU Fan Speed RPM Chassis Fan ...
Page 20
BIOS SETUP UTILITY Main Smart Advanced H/W Monitor Boot Security Exit Boot Settings Configure Settings during System Boot. Boot Settings Configuration 1st Boot Device [1st Floppy Device] 2nd Boot Devi...
Page 21
BIOS SETUP UTILITY Main Smart Advanced H/W Monitor Boot Security Exit Security Settings Install or Change the password. Supervisor Password Not Installed User Password Not Installed Change Supervisor ...
Page 22
BIOS SETUP UTILITY Main Smart Advanced H/W Monitor Boot Security Exit Exit Options Exit system setup after saving the Save Changes and Exit changes. Discard Changes and Exit Discard Changes F10 key ca...
