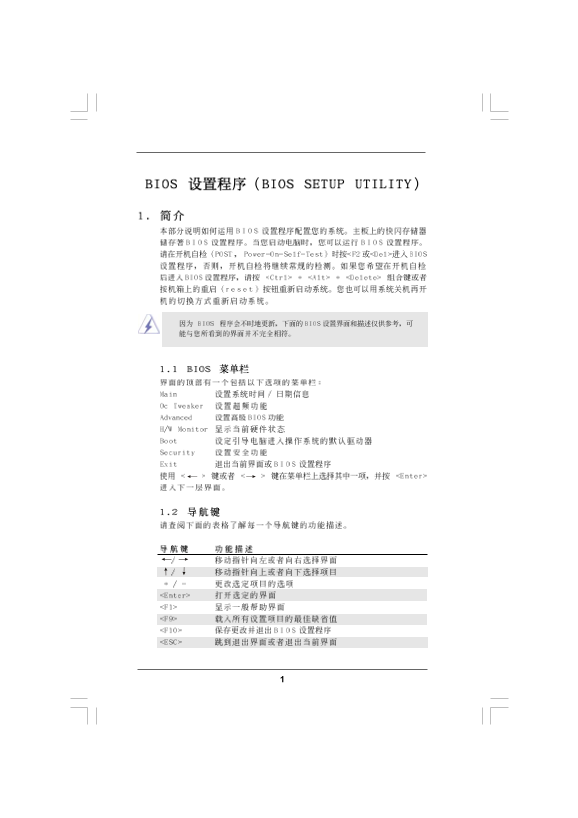

Page 2
BIOS SETUP UTILITY Main OC Tweaker H/W Monitor Boot Security Exit Advanced System Overview Use [Enter], [TAB] System Time :00:09] or [SHIFT-TAB] to System Date [Tue 11/02/2010] select field. BIOS Vers...
Page 3
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit EZ Overclocking Overclocking may cause Turbo [Press Enter] damage to your CPU and Load Optimized CPU OC Setting [Press Enter]...
Page 4
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit EZ Overclocking Overclocking may cause Load Optimized CPU OC Setting [Press Enter] damage to your CPU and Load Optimized m GP...
Page 5
BIOS SETUP UTILITY OC Tweaker Memory Timing Power Down Enable [Disabled] Bank Interleaving [Auto] Channel Interleaving [HASH 2] CAS Latency (CL) [Auto] TRCD [Auto] TRP [Auto] TRAS [Auto] TRTP [Auto] T...
Page 10
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Advanced Settings Options for CPU WARNING Setting wrong values in below sections may cause system to malfunction. CPU Configu...
Page 11
BIOS SETUP UTILITY Advanced CPU Configuration Cool' n' Quiet [Enabled] Secure Virtual Machine Enhanced Halt State(C1E) [Enabled] L3 Cache Allocation [Auto] CPU Thermal Throttle [Auto] Select Screen Se...
Page 12
BIOS SETUP UTILITY Advanced Chipset Settings PCIE2 Link ASPM [Disabled] Onboard HD Audio [Disabled] Panel [Auto] Onboard Lan [Auto] Dr. LAN [Enabled] Link speed Mbps Primary Graphics Adapter [PCI] Int...
Page 13
BIOS SETUP UTILITY Advanced ACPI Settings Select auto-detect or disable the STR Suspend To RAM [Auto] feature. Check Ready Bit [Auto] Away Mode Support [Disabled] Restore on AC Power Loss [Power Off] ...
Page 14
BIOS SETUP UTILITY Advanced Configure onboard Storage Configuration serial ATA controller. Onboard SATA Controller [Enabled] SATA Operation Mode [IDE] IDE1 Master [Hard Disk] IDE1 Slave [Not Detected]...
Page 16
BIOS SETUP UTILITY Advanced Advanced PCI Pn P Settings Value in units of PCI clocks for PCI device latency timer PCI Latency Timer [32] register. PCI IDE Bus Master [Enabled] Select Screen Select Item...
Page 17
BIOS SETUP UTILITY Advanced Configure Super IO Chipset Allow BIOS to Enable or Disable Floppy On Board Floppy Controller [Enabled] Controller. Serial Port Address [3F8 IRQ4] Parallel Port Address [378...
Page 18
BIOS SETUP UTILITY Advanced USB Configuration To enable or disable the onboard USB USB Controller [Enabled] controllers. USB 2.0 Support [Enabled] Legacy USB Support [Enabled] USB Keyboard/Remote Powe...
Page 19
BIOS SETUP UTILITY Main OC Tweaker Advanced Monitor Boot Security Exit H/W Enable/Disable Hardware Health Event Monitoring CPU Quiet Fan Function. CPU Temperature Temperature CPU Fan Speed RPM Chassis...
Page 20
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Boot Settings Configure Settings during System Boot. Boot Settings Configuration 1st Boot Device [1st Floppy Device] 2nd Boot...
Page 21
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Security Settings Install or Change the password. Supervisor Password Not Installed User Password Not Installed Change Superv...
Page 22
BIOS SETUP UTILITY Main OC Tweaker Advanced H/W Monitor Boot Security Exit Exit Options Exit system setup after saving the Save Changes and Exit changes. Discard Changes and Exit Discard Changes F10 k...
