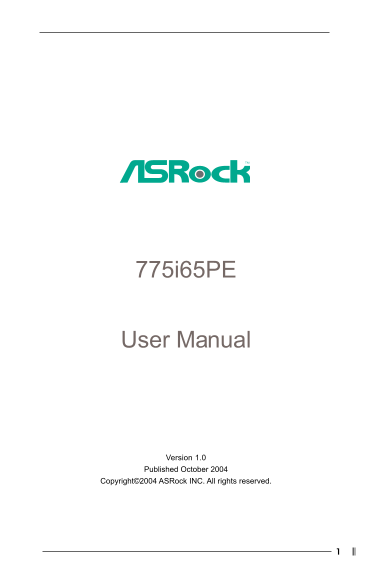

775i65PE
User Manual
Version 1.0 Published October 2004
Copyright©2004 ASRock INC. All rights reserved.
Page Summary Contents For ASRock 775i65PE User's Guide
Page 1
775i65PE User Manual Version 1.0 Published October 2004 Copyright©2004 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents 1 Introduction ... 5 1.1 Package Contents................................................................ 5 1.2 Specifications ...................................................................
Page 4
4 Software Support 4.1 Install Operating System 4.2 Support CD Information 4.2.1 Running Support CD 4.2.2 Drivers Menu 4.2.3 Utilities Menu 4.2.4 “LGA 775 CPU Installation Live Demo” Program.... 37 4....
Page 5
Chapter 1 Introduction Thank you for purchasing ASRock 775i65PE motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance wi...
Page 6
1.2 Specifications Platform: ATX Form Factor: 12.0-in x 9.0-in, 30.5 cm x 22.9 cm CPU: 775-Pin Socket Supporting Intel® Pentium® 4 / Celeron® processor (in 775-land LGA package) Chipsets: North Bridge...
Page 7
Audio Jack: Side Speaker / Rear Speaker / Central/Bass / Line In / Front Speaker / Microphone (see CAUTION 8) BIOS: AMI legal BIOS, Supports “Plug and Play”, ACPI 1.1 compliance wake up events, Suppor...
Page 8
1.3 Motherboard Layout 22.9cm (9.0 in) PS2 PS2_USB_PWR1 Mouse ATX12V1 USB 2.0 T: USB2 B: USB3 USB 2.0 Top: T: USB0 RJ-45 B: USB1 Intel 865PE Chipset (6 /7 it -p in le AGP 8X (6 /7 it -p in le 1.5V_AGP...
Page 9
1.4 ASRock 8CH I/O Parallel Port Microphone (Pink) RJ-45 Port USB 2.0 Ports (USB01) Rear Speaker (Gray) USB 2.0 Ports (USB23) Side Speaker (Black) Serial Port: COM1 Central / Bass (Orange) PS/2 Keyboa...
Page 10
Chapter 2 Installation 775i65PE is an ATX form factor (12.0" x 9.0", 30.5 x 22.9 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to ensure that t...
Page 11
black line 2.3 CPU Installation For the installation of Intel 775-LAND CPU, please follow the steps below. black line 775-Pin Socket Overview Before you insert the 775-LAND CPU into the socket, please...
Page 12
For proper inserting, please ensure to match the two orientation key notches of the CPU with the two alignment keys of the socket. Step 2-3. Carefully place the CPU into the socket by using a purely v...
Page 13
2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 775-Pin socket that supports Intel 775-LAND CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 775-L...
Page 14
2.5 Installation of Memory Modules (DIMM) 775i65PE motherboard provides four 184-pin DDR (Double Data Rate) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you...
Page 15
Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Alig...
Page 16
2.6 Expansion Slots (PCI and AGP Slots) There are 5 PCI slots and 1 AGP slot on 775i65PE motherboard. PCI slots: The PCI slots are used to install expansion cards that have the 32-bit PCI interface. A...
Page 17
2.7 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration...
Page 18
2.8 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will ...
Page 19
Serial ATA (SATA) Please connect the black end of Power Cable SATA power cable to the power (Optional) connect to the connector on each drive. Then connect to the SATA HDD power supply power connector...
Page 20
System Panel Header PLED+ This header accommodates PLED- PWRBTN# (9-pin PANEL1) GND several system front panel (see p.8 No. 15) functions. DUMMY RESET# GND HDLED- HDLED+ Chassis Speaker Header Please ...
Page 21
2.9 Serial ATA (SATA) Hard Disks Installation This motherboard adopts Intel ICH5 south bridge chipset that supports Serial ATA (SATA) hard disks. You may install SATA hard disks on this motherboard fo...
Page 22
Chapter 3 BIOS SETUP UTILITY 3.1 Introduction This section explains how to use the BIOS SETUP UTILITY to configure your system. The BIOS FWH chip on the motherboard stores the BIOS SETUP UTILITY. You ...
Page 23
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description Moves cursor left or right to select Screens Moves cu...
Page 24
BIOS SETUP UTILITY Main Advanced H/W Monitor Boot Security Exit Advanced Settings Configure CPU WARNING Setting wrong values in below sections may cause system to malfunction. CPU Configuration Chipse...
Page 25
Ratio Actual Value This is a read-only item, which displays the ratio actual value of this motherboard. CPU Thermal Throttling You may select [Enabled] to enable P4 CPU internal thermal control mecha-...
Page 26
DRAM Frequency If [Auto] is selected, the motherboard will detect the memory module(s) inserted and assigns appropriate frequency automatically. You may also select other value as operating frequency:...
Page 27
3.3.3 ACPI Configuration BIOS SETUP UTILITY Advanced ACPI Configuration Select auto-detect or disable the STR Suspend To RAM [Disabled] feature. Restore on AC Power Loss [Power Off] Ring-In Power On [...
Page 28
3.3.4 IDE Configuration BIOS SETUP UTILITY Advanced Set [Compatible Mode] IDE Configuration when both Legacy OS (MS-DOS, Win Me 98SE) On Board IDE Operate Mode [Enhanced Mode] and SATA device On Board...
Page 29
IDE Device Configuration You may set the IDE configuration for the device that you specify. We will use the “Primary IDE Master” as the example in the following instruction, which can be applied to th...
Page 30
Block (Multi-Sector Transfer) The default value of this item is [Auto]. If this feature is enabled, it will enhance hard disk performance by reading or writing more data during each transfer. PIO Mode...
Page 31
3.3.6 Floppy Configuration In this section, you may configure the type of your floppy drive. BIOS SETUP UTILITY Advanced Floppy Configuration Select the type of floppy drive Floppy [1.44 MB connected ...
Page 32
Parallel Port Address Use this item to set the address for the onboard parallel port or disable it. Configuration options: [Disabled], [378], and [278]. Parallel Port Mode Use this item to set the ope...
Page 33
3.3.8 USB Configuration BIOS SETUP UTILITY Advanced USB Configuration To enable or disable the onboard USB USB Devices Enabled controllers. USB Controller [Enabled] USB 2.0 Support [Enabled] Legacy US...
Page 34
3.5 Boot Screen In this section, it will display the available devices on your system for you to config- ure the boot settings and the boot priority. BIOS SETUP UTILITY Main Advanced H/W Monitor Boot ...
Page 35
3.6 Security Screen In this section, you may set or change the supervisor/user password for the system. For the user password, you may also clear it. 3.7 Exit Screen BIOS SETUP UTILITY Main Advanced H...
Page 36
Discard Changes When you select this option, it will pop-out the following message, “Dis- card changes?” Select [OK] to discard all changes. Load Optimal Defaults When you select this option, it will ...
Page 37
Chapter 4 Software Support 4.1 Install Operating System This motherboard supports various Microsoft® Windows® operating systems: 98 SE / ME / 2000 / XP. Because motherboard settings and hardware optio...
