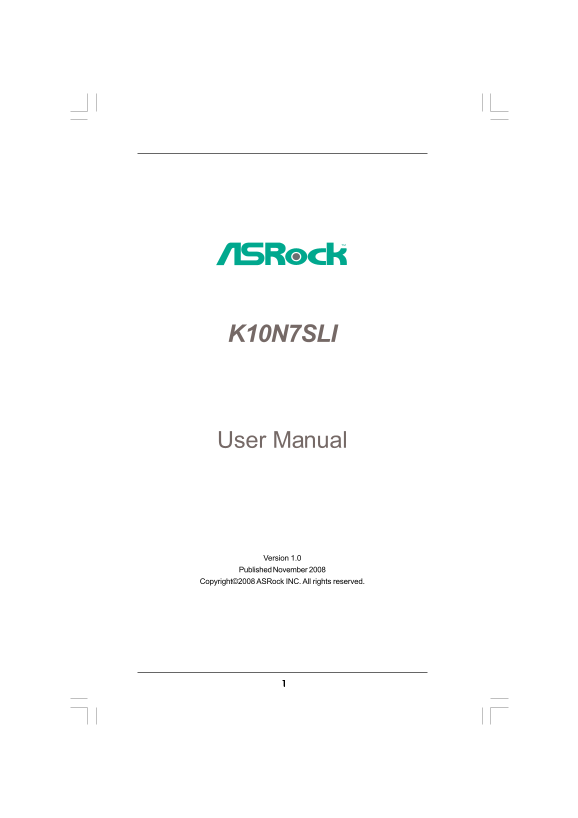

K10N7SLI
User Manual
Version 1.0 Published November 2008
Copyright©2008 ASRock INC. All rights reserved.
Page Summary Contents For ASRock K10N7SLI User Guide
Page 1
K10N7SLI User Manual Version 1.0 Published November 2008 Copyright©2008 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents Introduction 1.1 Package Contents 1.2 Specifications 1.3 Supported PCI Express VGA Card List for SLITM Mode 1.4 Motherboard Layout 1.5 I/O Panel Instal lat ion Pre-installation Precautions 2....
Page 4
3.1.1 BIOS Menu Bar 3.1.2 Navigation Keys 3.2 Main Screen 3.3 Smart Screen 3.4 Advanced Screen 3.4.1 CPU Configuration 3.4.2 Chipset Configuration 3.4.3 ACPI Configuration 3.4.4 IDE Configuration 3.4....
Page 5
1. Introduction Thank you for purchasing ASRock K10N7SLI motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It de- livers excellent performance with ro...
Page 6
.2 Specifications Platform - ATX Form Factor: 12.0-in x 8.8-in, 30.5 cm x 22.4 cm - All Solid Capacitor design (100% Japan-made high-quality Conductive Polymer Capacitors) CPU - Support for Socket AM2...
Page 7
Connector - 6 x SATAII 3.0Gb/s connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI and “Hot Plug” functions (see CAUTION 8) - 1 x e SATAII 3.0Gb/s connector (shared with 1 ...
Page 8
- CPU Quiet Fan - Voltage Monitoring: +12V, +5V, +3.3V, CPU Vcore OS - Microsoft® Windows® XP / XP Media Center / XP 64-bit / Vista TM / Vista TM 64-bit compliant Certifications - FCC, CE, WHQL * For ...
Page 9
7. For microphone input, this motherboard supports both stereo and mono modes. For audio output, this motherboard supports 2-channel, 4-channel, 6-channel, and 8-channel modes. Please check the table ...
Page 10
15. This motherboard supports ASRock AM2 Boost overclocking technology for AM2 CPU. If you enable this function in the BIOS setup, the memory performance will improve up to 12.5%, but the effect still...
Page 11
1.3 Supported PCI Express VGA Card List for SLITM Mode (for Windows® XP / XP 64-bit / Vista TM / Vista TM 64-bit only) Graphics Chip Model Name Chipset Name Vendor NVIDIA ASUS EN8800GTX Ge Force 8800G...
Page 12
1.4 Motherboard Layout 22.4cm (8.8-in) PS2_USB_PW1 II ATX12V1 SO KET AM USB T: USB2 2.0 Top: IEEE B: USB3 USB T: USB0 2.0 Top: B: USB1 RJ-45 SLI/XFIRE_PWR1 140W CPU FSB2.6GHz CPU_FAN1 PCIE1 K10N7SLI L...
Page 13
.5 I/O Panel PS/2 Mouse Port (Green) 9 Microphone (Pink) IEEE 1394 Port USB 2.0 Ports (USB01) LAN RJ-45 Port USB 2.0 Ports (USB23) Side Speaker (Gray) USB 2.0 Ports (USB45) Rear Speaker (Black) e SATA...
Page 14
2. Installation This is an ATX form factor (12.0-in x 8.8-in, 30.5 cm x 22.4 cm) motherboard. Before you install the motherboard, study the configuration of your chassis to en- sure that the motherboa...
Page 15
2.1 CPU Installation Step 1. Unlock the socket by lifting the lever up to a 90o angle. Step 2. Position the CPU directly above the socket such that the CPU corner with the golden triangle matches the ...
Page 16
2.3 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR2 (Double Data Rate 2) DIMM slots, and supports Dual Channel Memory Technology. For dual channel configuration, you ...
Page 17
Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Alig...
Page 18
2.4 Expansion Slots (PCI and PCI Express Slots) There are 3 PCI slots and 3 PCI Express slots on this motherboard. PCI Slots: PCI slots are used to install expansion cards that have the 32-bit PCI int...
Page 19
1. If you plan to install only one PCI Express VGA card on this motherboard, please install it on PCIE2 slot (Green). In this mode, you do not need to adjust the default setting of ASRock SLI/XFire Sw...
Page 20
2.5 SLITM Operation Guide This motherboard supports NVIDIA® SLITM (Scalable Link Interface) technology that allows you to install two identical NVIDIA® SLITM enabled PCI Express x16 graphics cards. Cu...
Page 21
Step 3. Reverse the card direction so as to have the “X8 / X8 MODE” wording side toward the retention slot base. Insert the card into the bottom of the base. Step 4. Push the card down into the retent...
Page 22
Step 8. Connect a VGA cable or a DVI-I cable to the monitor connector and the DVI connector of the graphics card that is inserted to PCIE2 slot. Step 9. Connect a 4-pin ATX power cable to SLI/XFIRE po...
Page 23
E. From the Display Properties dialog box, select the Settings tab then click Advanced. F. Select the NVIDIA Ge Force tab. G. Click the slider to display the following screen, then select the SLI mult...
Page 24
For Windows® Vista TM / Vista TM 64-bit OS: A. Click the Start icon on your Windows taskbar. B. From the pop-up menu, select All Programs, and then click NVIDIA Corporation. C. Select NVIDIA Control P...
Page 25
2.6 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration...
Page 26
2.7 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will ...
Page 27
e SATAII Connector This e SATAII connector (e SATAII_TOP: see p.12, No. 37) supports SATA data cable for external SATAII function. The current e SATAII interface allows up to 3.0 Gb/s data transfer ra...
Page 28
Internal Audio Connectors This connector allows you (4-pin CD1) to receive stereo audio input (CD1: see p.12, No. 29) from sound sources such as a CD-ROM, DVD-ROM, TV tuner card, or MPEG card. Front P...
Page 29
System Panel Header PLED+ This header accommodates PLED- PWRBTN# (9-pin PANEL1) GND several system front panel (see p.12, No. 21) functions. DUMMY RESET# GND HDLED- HDLED+ Chassis Speaker Header Pleas...
Page 30
ATX 12V Power Connector Please note that it is necessary (8-pin ATX12V1) to connect a power supply with (see p.12, No. 3) ATX 12V plug to this connector. Failing to do so will cause power up failure. ...
Page 31
HDMI_SPDIF Cable Please connect the black end (A) (Optional) of HDMI_SPDIF cable to the HDMI_SPDIF header on the motherboard. Then connect the white end (B or C) of HDMI_SPDIF cable to the HDMI_SPDIF ...
Page 32
2.8 HDMI_SPDIF Header Connection Guide HDMI (High-Definition Multi-media Interface) is an all-digital audio/video specification, which provides an interface between any compatible digital audio/video ...
Page 33
2.9 e SATAII Interface Introduction What is e SATAII? This motherboard supports e SATAII interface, the external SATAII specification. e SATAII allows you to enjoy the SATAII function provided by the ...
Page 34
How to install e SATAII? e SATAII_TOP SATAII_6 (PORT5) 1. In order to enable the e SATAII port of the I/O shield, you need to connect the orange SATAII connector (SATAII_6 (PORT5); see p.12 No.12) and...
Page 35
Comparison between e SATAII and other devices IEEE 1394 400Mb/s USB 2.0 480Mb/s SATA 1.5Gb/s (1500Mb/s) e SATAII/SATAII 3.0Gb/s (3000Mb/s)
Page 36
2.10 SATAII Hard Disk Setup Guide Before installing SATAII hard disk to your computer, please carefully read below SATAII hard disk setup guide. Some default setting of SATAII hard disks may not be at...
Page 37
2.11 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation This motherboard adopts NVIDIA® n Force 740a SLI chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and R...
Page 38
2.12 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs and e SATAII Devices This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII / e SATAII Devices in RAID / AHCI mode. NVI...
Page 39
2.13 SATA / SATAII HDD Hot Plug Feature and Operation Guide This motherboard supports Hot Plug feature for SATA / SATAII HDD in RAID / AHCI mode. Please read below operation guide of SATA / SATAII HDD...
Page 40
How to Hot Plug a SATA / SATAII HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause the SATA /...
