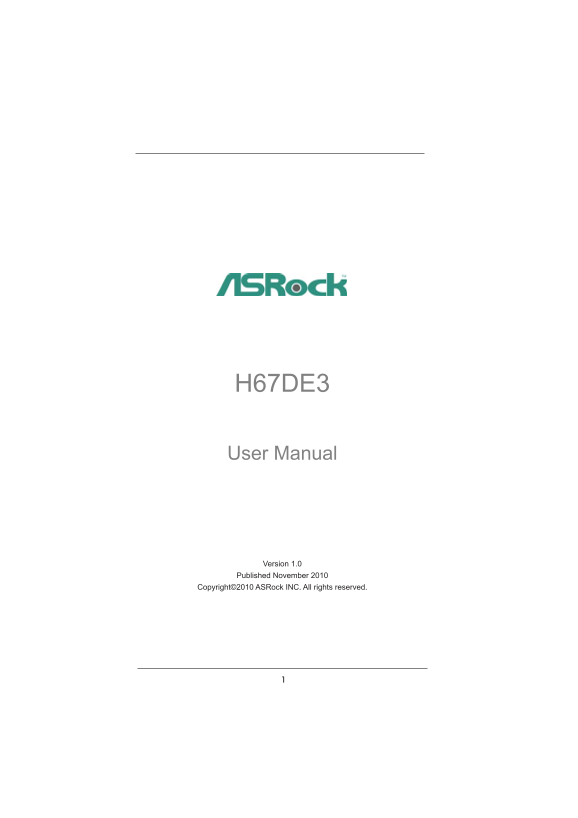

H67DE3
User Manual
Version 1.0 Published November 2010
Copyright©2010 ASRock INC. All rights reserved.
Page Summary Contents For ASRock H67DE3 User Guide
Page 1
H67DE3 User Manual Version 1.0 Published November 2010 Copyright©2010 ASRock INC. All rights reserved.
Page 2
Copyright Notice: No part of this manual may be reproduced, transcribed, transmitted, or translated in any language, in any form or by any means, except duplication of documentation by the purchaser f...
Page 3
Contents 1 Introduction ......................................................... 5 1.1 Package Contents ......................................................... 1.2 Speci cations ......................
Page 4
3 UEFI SETUP UTILITY ................................................. 37 3.1 Introduction .................................................................... 3.1.1 UEFI Menu Bar .......................
Page 5
Chapter 1: Introduction Thank you for purchasing ASRock H67DE3 motherboard, a reliable motherboard produced under ASRock’s consistently stringent quality control. It delivers excellent performance wit...
Page 6
1.2 Specifications Platform - ATX Form Factor: 12.0-in x 8.3-in, 30.5 cm x 21.1 cm - All Solid Capacitor design CPU - Supports 2nd Generation Intel® Core TM i7 / i5 / i3 in LGA1155 Package - Supports ...
Page 7
LAN - PCIE x1 Gigabit LAN 10/100/1000 Mb/s - Realtek RTL8111E - Supports Wake-On-LAN - Supports LAN Cable Detection - Supports Energy Ef cient Ethernet 802.3az Rear Panel I/O I/O Panel - 1 x PS/2 Keyb...
Page 8
- SMBIOS 2.3.1 Support - IGPU, DRAM, PCH, CPU PLL, VTT, VCCSA Voltage Multi-adjustment Support CD - Drivers, Utilities, Anti Virus Software (Trial Version), ASRock Software Suite (Cyber Link DVD Suite...
Page 9
CAUTION! 1. Please be noted that CPU ratio and host clock cannot be overclocked. Only embedded graphics can be overclocked. 2. About the setting of “Hyper Threading Technology”, please check page 43. ...
Page 10
BIOS setup menu to access ASRock Instant Flash. Just launch this tool and save the new BIOS le to your USB ash drive, oppy disk or hard drive, then you can update your BIOS only in a few clicks withou...
Page 11
16. Combo Cooler Option (C.C.O.) provides the exible option to adopt three different CPU cooler types, Socket LGA 775, LGA 1155 and LGA 1156. Please be noticed that not all the 775 and 1156 CPU Fan ca...
Page 12
1.3 Motherboard Layout 21.1cm (8.3 in) ig in ip USB 2.0 PWR_FAN1 T: USB0 B: USB1 ATX12V1 DX10.1 USB 3.0 T: USB0 B: USB1 USB 2.0 Top: T: USB4 RJ-45 B: USB5 (6 it -p in le LAN PHY H67DE3 (6 it -p in le ...
Page 13
1.4 I/O Panel 1 USB 2.0 Ports (USB01) ** 8 Front Speaker (Lime) 2 VGA/D-Sub Port 9 Microphone (Pink) * 3 LAN RJ-45 Port 10 USB 2.0 Ports (USB45) 4 Central / Bass (Orange) 11 USB 3.0 Ports (USB3_0_1) 5...
Page 14
To enable Multi-Streaming function, you need to connect a front panel audio cable to the front panel audio header. After restarting your computer, you will nd “Mixer” tool on your system. Please selec...
Page 15
Chapter 2: Installation This is an ATX form factor (12.0" x 8.3", 30.5 x 21.1 cm) motherboard. Before you install the motherboard, study the con guration of your chassis to ensure that the m...
Page 16
2.3 CPU Installation For the installation of Intel 1155-Pin CPU, please follow the steps below. Load Plate Load Lever Contact Array Socket Body 1155-Pin Socket Overview Before you insert the 1155-Pin ...
Page 17
Step 3. Insert the 1155-Pin CPU: Step 3-1. Hold the CPU by the edge where is marked with black line. black line Step 3-2. Orient the CPU with IHS (Integrated Heat Sink) up. Locate Pin1 and the two ori...
Page 18
2.4 Installation of CPU Fan and Heatsink This motherboard is equipped with 1155-Pin socket that supports Intel 1155-Pin CPU. Please adopt the type of heatsink and cooling fan compliant with Intel 1155...
Page 19
2.5 Installation of Memory Modules (DIMM) This motherboard provides four 240-pin DDR3 (Double Data Rate 3) DIMM slots, and supports Dual Channel Memory Technology. For dual channel con- guration, you ...
Page 20
Installing a DIMM Please make sure to disconnect power supply before adding or removing DIMMs or the system components. Step 1. Unlock a DIMM slot by pressing the retaining clips outward. Step 2. Alig...
Page 21
2.6 Expansion Slots (PCI and PCI Express Slots) There are 2 PCI slots and 4 PCI Express slots on this motherboard. PCI slots: PCI slots are used to install expansion cards that have the 32-bit PCI int...
Page 22
2.7 Dual Monitor and Surround Display Features Dual Monitor Feature This motherboard supports dual monitor feature. With the internal VGA output sup- port (DVI-D, D-Sub and HDMI), you can easily enjoy...
Page 23
Surround Display Feature This motherboard supports surround display upgrade. With the internal VGA output support (DVI-D, D-Sub and HDMI) and external add-on PCI Express VGA cards, you can easily enjo...
Page 24
For Windows® 7 / 7 64-bit / Vista TM / Vista TM 64-bit OS: Right click the desktop, choose “Personalize”, and select the “Display Settings” tab so that you can adjust the parameters of the multi-monit...
Page 25
2.8 Jumpers Setup The illustration shows how jumpers are setup. When the jumper cap is placed on pins, the jumper is “Short”. If no jumper cap is placed on pins, the jumper is “Open”. The illustration...
Page 26
2.9 Onboard Headers and Connectors Onboard headers and connectors are NOT jumpers. Do NOT place jumper caps over these headers and connectors. Placing jumper caps over the headers and connectors will ...
Page 27
Consumer Infrared Module Header This header can be used to (4-pin CIR1) connect the remote (see p.12 No. 23) controller receiver. IRTX IRRX ATX+5VSB Front Panel Audio Header This is an interface for f...
Page 28
PLED (System Power LED): Connect to the power status indicator on the chassis front panel. The LED is on when the system is operating. The LED keeps blinking when the sys- tem is in S1 sleep state. Th...
Page 29
CPU Fan Connectors Please connect the CPU fan FAN_SPEED_CONTROL (4-pin CPU_FAN1) cable to the connector and CPU_FAN_SPEED (see p.12 No. 35) match the black wire to the ground pin. Though this motherbo...
Page 30
Serial port Header This COM1 header supports a (9-pin COM1) serial port module. (see p.12 No. 25) HDMI_SPDIF Header HDMI_SPDIF header, providing (2-pin HDMI_SPDIF1) SPDIF audio output to HDMI (see p.1...
Page 31
2.10 Serial ATA (SATA) / Serial ATAII (SATAII) Hard Disks Installation This motherboard adopts Intel® H67 chipset that supports Serial ATA (SATA) / Serial ATAII (SATAII) hard disks and RAID (RAID 0, R...
Page 32
2.12 Hot Plug and Hot Swap Functions for SATA / SATAII HDDs This motherboard supports Hot Plug and Hot Swap functions for SATA / SATAII in RAID / AHCI mode. Intel® H67 chipset provides hardware suppor...
Page 33
2.14 SATA / SATAII / SATA3 HDD Hot Plug Feature and Operation Guide This motherboard supports Hot Plug feature for SATA / SATAII / SATA3 HDD in RAID / AHCI mode. Please read below operation guide of H...
Page 34
How to Hot Plug a SATA / SATAII / SATA3 HDD: Points of attention, before you process the Hot Plug: Please do follow below instruction sequence to process the Hot Plug, improper procedure will cause th...
Page 35
2.15 Driver Installation Guide To install the drivers to your system, please insert the support CD to your optical drive rst. Then, the drivers compatible to your system can be auto-detected and liste...
Page 36
2.17 Installing Windows® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP 64-bit Without RAID Functions If you want to install Windows® 7 / 7 64-bit / Vista TM / Vista TM 64-bit / XP / XP 64- bit O...
Page 37
Chapter 3: UEFI SETUP UTILITY 3.1 Introduction This section explains how to use the UEFI SETUP UTILITY to con gure your system. The UEFI chip on the motherboard stores the UEFI SETUP UTILITY. You may ...
Page 38
3.1.2 Navigation Keys Please check the following table for the function description of each navigation key. Navigation Key(s) Function Description / Moves cursor left or right to select Screens / Move...
Page 39
3.3 OC Tweaker Screen In the OC Tweaker screen, you can set up overclocking features. Load GPU EZ OC Setting Use this item to load GPU EZ overclocking setting. Please note that overclocking may cause ...
Page 40
Turbo Boost Power Limit Use this item to adjust Turbo Boost power limit. Con guration options: [Auto] and [Manual]. The default value is [Auto]. Core Current Limit Use this item to add voltage when CP...
