The NLP250 Series is a compact, high-reliability embedded power solution providing up to 250W for business-critical continuity. Featuring Active PFC and universal input (85–264Vac), it ensures protected operation in low-profile 1U applications. This documentation comprehensively covers electrical specifications, compliance standards (EMC/RoHS), thermal guidelines, and auxiliary output details. It is essential reading for professional IT technicians and system integrators requiring dependable, regulated backup power for sensitive electronic equipment.

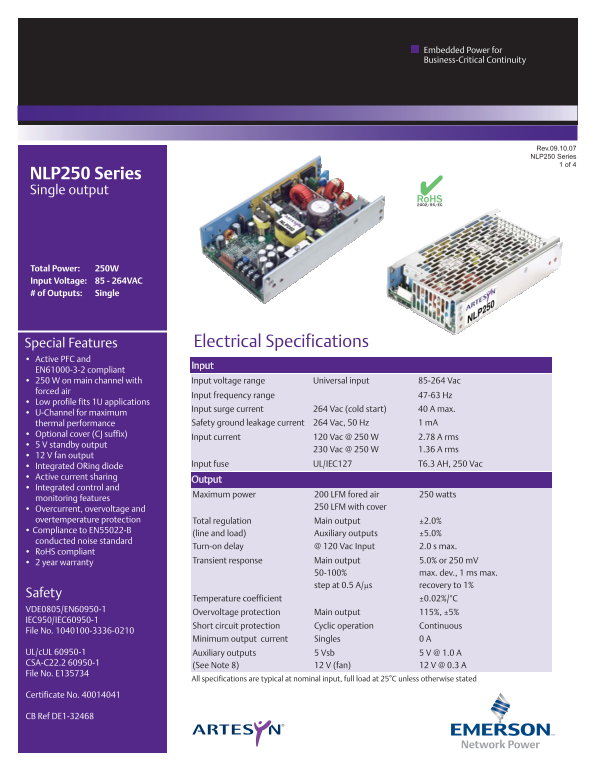

Page 1 Text Content
Embedded Power for Business-Critical Continuity
Rev.09.10.07 NLP250 Series
NLP250 Series Single output
Ro HS
Total Power: 250W Input Voltage: 85 - 264VAC # of Outputs: Single
Special Features Electrical Specifications
Active PFC and
Input
EN61000-3-2 compliant 250 W on main channel with Input voltage range Universal input 85-264 Vac forced air
Input frequency range 47-63 Hz
Low profile fits 1U applications
Input surge current 264 Vac (cold start) 40 A max.
U-Channel for maximum
thermal performance Safety ground leakage current 264 Vac, 50 Hz 1 m A
Optional cover (CJ suffix)
Input current 120 Vac @ 250 W 2.78 A rms
5 V standby output
230 Vac @ 250 W 1.36 A rms
12 V fan output
Input fuse UL/IEC127 T6.3 AH, 250 Vac
Integrated ORing diode Active current sharing
Output
Integrated control and
Maximum power 200 LFM fored air 250 watts
monitoring features
Overcurrent, overvoltage and 250 LFM with cover
overtemperature protection Total regulation Main output ±2.0% • Compliance to EN55022-B
(line and load) Auxiliary outputs ±5.0%
conducted noise standard
Turn-on delay @ 120 Vac Input 2.0 s max.
Ro HS compliant
2 year warranty Transient response Main output 5.0% or 250 m V
50-100% max. dev., 1 ms max. step at 0.5 A/μs recovery to 1%
Safety
Temperature coefficient ±0.02%/°C
VDE0805/EN60950-1
Overvoltage protection Main output 115%, ±5%
IEC950/IEC60950-1
Short circuit protection Cyclic operation Continuous
File No. 1040100-3336-0210
Minimum output current Singles 0 A
UL/c UL 60950-1 Auxiliary outputs 5 Vsb 5 V @ 1.0 A CSA-C22.2 60950-1
(See Note 8) 12 V (fan) 12 V @ 0.3 A
File No. E135734
All specifications are typical at nominal input, full load at 25°C unless otherwise stated
Certificate No. 40014041
CB Ref DE1-32468
Page Summary Contents For ARTESYN Emerson NLP250 Series Single Output Technical Specifications - User Guide
Manual Details
| Brand | Artesyn |
|---|---|
| Pages | 4 |
| File Size | 444.75 KB |
| Published | May 14, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating ambient temperature range?
The unit operates in an ambient temperature range of 0°C to +70 °C.
How is max continuous output power affected by airflow?
For full power (250W), it requires 250 LFM forced air; otherwise, convection cooling limits the power and requires consulting the derating curve.
What are the standard input voltage requirements?
The unit accepts a universal input voltage range of 85-264 Vac, with an input frequency range of 47-63 Hz.
Does it offer protection against various electrical faults?
Yes, it includes overcurrent, overvoltage, and overtemperature protection, along with short circuit and ground leakage protection.
