ARTESYN TLP150 Series Single Output User Guide and Installation Manual
Summary
This highly reliable embedded power module delivers stable, multi-output electrical power for business-critical continuity in demanding electronics applications. The comprehensive guide details every aspect of the TLP150 series, covering intricate specifications like Active PFC integration, extensive fault protection features, and environmental compliance standards (UL/IEC). It is essential reading for professional system engineers and installers building mission-critical computing solutions that require maximum uptime and robust performance.

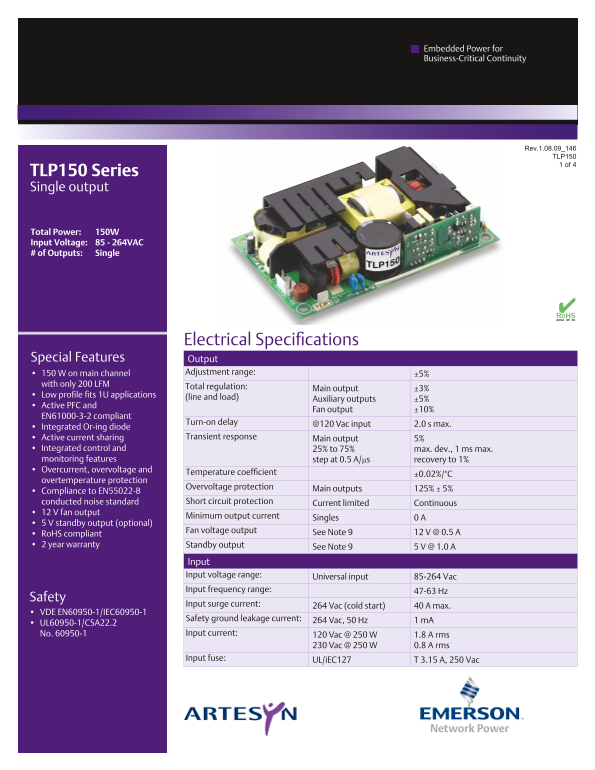

Page 1 Text Content
process yellow
Embedded Power for Business-Critical Continuity
Rev.1.08.09_146
TLP150 1 of 4
TLP150 Series Single output
Total Power: 150W Input Voltage: 85 - 264VAC # of Outputs: Single
Ro HS
Electrical Specifications
Special Features Output
150 W on main channel Adjustment range: ±5%
with only 200 LFM
Total regulation: Main output ±3%
Low profile fits 1U applications
(line and load) Auxiliary outputs ±5%
Active PFC and
Fan output ±10%
EN61000-3-2 compliant
Turn-on delay @120 Vac input 2.0 s max.
Integrated Or-ing diode
Active current sharing Transient response Main output 5%
Integrated control and 25% to 75% max. dev., 1 ms max. monitoring features step at 0.5 A/µs recovery to 1% Overcurrent, overvoltage and
Temperature coefficient ±0.02%/°C
overtemperature protection
Overvoltage protection Main outputs 125% ± 5%
Compliance to EN55022-B
conducted noise standard Short circuit protection Current limited Continuous
12 V fan output
Minimum output current Singles 0 A
5 V standby output (optional)
Fan voltage output See Note 9 12 V @ 0.5 A
Ro HS compliant 2 year warranty Standby output
See Note 9 5 V @ 1.0 A
Input Input voltage range: Universal input 85-264 Vac Input frequency range: 47-63 Hz
Safety
Input surge current: 264 Vac (cold start) 40 A max.
VDE EN60950-1/IEC60950-1
Safety ground leakage current: 264 Vac, 50 Hz 1 m A
UL60950-1/CSA22.2
No. 60950-1 Input current: 120 Vac @ 250 W 1.8 A rms
230 Vac @ 250 W 0.8 A rms
Input fuse: UL/i EC127 T 3.15 A, 250 Vac
Page Summary Contents For ARTESYN TLP150 Series Single Output User Guide and Installation Manual
Manual Details
| Brand | Artesyn |
|---|---|
| Pages | 4 |
| File Size | 792.25 KB |
| Published | May 14, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the required airflow for maximum power output?
For 150W max continuous output, 200 LFM forced air cooling is recommended.
How does the device handle thermal management?
Operating ambient temperature range is 0°C to +70°C. A derating curve must be used for optimal performance at higher temperatures.
What electrical standards are met by this unit?
It complies with UL/cUL UL60950-1/CSA22.2, VDE EN60950-1/IEC60950-1, and is RoHS compliant.
Is the standby output optional?
Yes, the 5V standby output is optional and requires an equivalent with specific crimp terminals.
