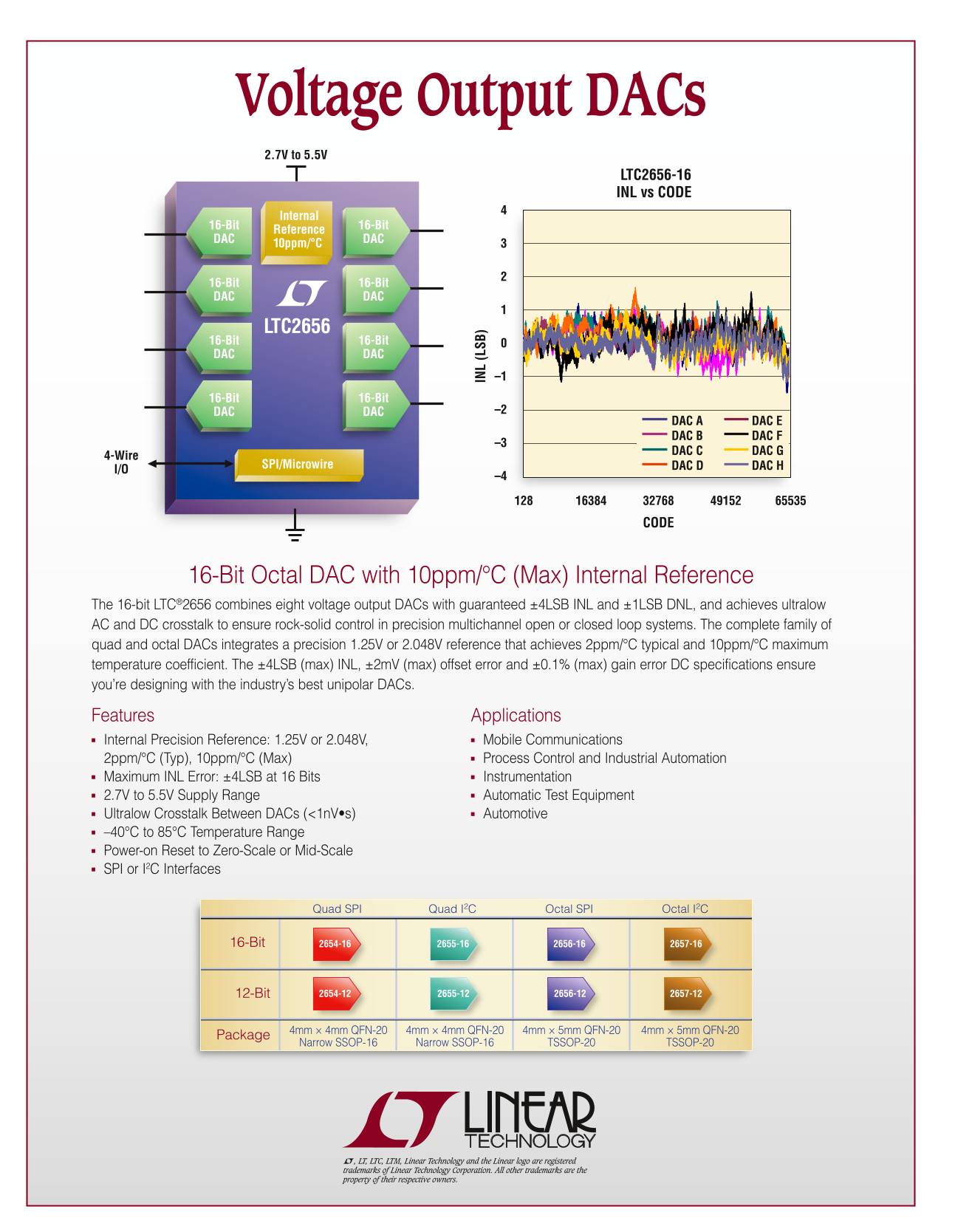

LINEAR 2PB_2656c Voltage Output DACs User Guide and Manual

Voltage Output DACs 2.7V to 5.5V

LTC2656-16 INL vs CODE

Internal

16-Bit 16-Bit

Reference

DAC DAC

10ppm/°C

16-Bit 16-Bit DAC DAC

LTC2656 16-Bit 16-Bit DAC DAC

16-Bit 16-Bit

DAC DAC –2

DAC A DAC E DAC B DAC F

DAC C DAC G

4-Wire

SPI/Microwire DAC D DAC H

IN (L SB

16-Bit Octal DAC with 10ppm/°C (Max) Internal Reference

The 16-bit LTC®2656 combines eight voltage output DACs with guaranteed ±4LSB INL and ±1LSB DNL, and achieves ultralow AC and DC crosstalk to ensure rock-solid control in precision multichannel open or closed loop systems. The complete family of quad and octal DACs integrates a precision 1.25V or 2.048V reference that achieves 2ppm/°C typical and 10ppm/°C maximum temperature coefficient. The ±4LSB (max) INL, ±2m V (max) offset error and ±0.1% (max) gain error DC specifications ensure you’re designing with the industry’s best unipolar DACs.

Features Applications n Internal Precision Reference: 1.25V or 2.048V, n Mobile Communications 2ppm/°C (Typ), 10ppm/°C (Max) n Process Control and Industrial Automation n Maximum INL Error: ±4LSB at 16 Bits n Instrumentation

n 2.7V to 5.5V Supply Range n Automatic Test Equipment

n Ultralow Crosstalk Between DACs (<1n V•s) n Automotive

n –40°C to 85°C Temperature Range

n Power-on Reset to Zero-Scale or Mid-Scale

n SPI or I2C Interfaces

Quad SPI Quad I2C Octal SPI Octal I2C

16-Bit 2655-16 2656-16 2657-162654-16

12-Bit 2655-12 2656-12 2657-122654-12

4mm × 4mm QFN-20 4mm × 4mm QFN-20 4mm × 5mm QFN-20 4mm × 5mm QFN-20

Package

Narrow SSOP-16 Narrow SSOP-16 TSSOP-20 TSSOP-20
