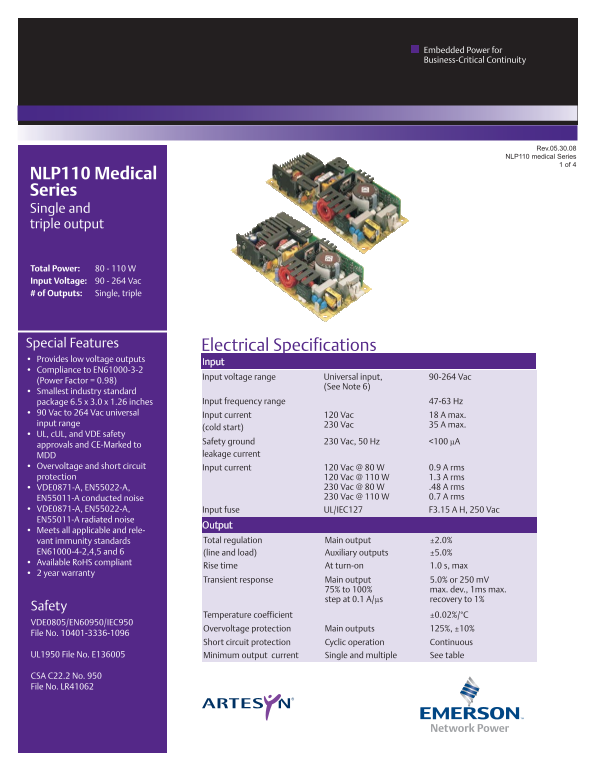

ARTESYN NLP110 Medical Series Single Output Specifications User Guide

Embedded Power for Business-Critical Continuity

Rev.05.30.08

NLP110 medical Series

NLP110 Medical Series Single and triple output

Total Power: 80 - 110 W Input Voltage: 90 - 264 Vac # of Outputs: Single, triple

Special Features Electrical Specifications Provides low voltage outputs

Input

Compliance to EN61000-3-2

Input voltage range Universal input, 90-264 Vac

(Power Factor = 0.98)

(See Note 6)

Smallest industry standard

package 6.5 x 3.0 x 1.26 inches Input frequency range 47-63 Hz

90 Vac to 264 Vac universal

Input current 120 Vac 18 A max.

input range 230 Vac 35 A max.

(cold start)

UL, c UL, and VDE safety

Safety ground 230 Vac, 50 Hz <100 μA

approvals and CE-Marked to

MDD leakage current

Overvoltage and short circuit Input current 120 Vac @ 80 W 0.9 A rms protection 120 Vac @ 110 W 1.3 A rms

VDE0871-A, EN55022-A, 230 Vac @ 80 W .48 A rms EN55011-A conducted noise 230 Vac @ 110 W 0.7 A rms

VDE0871-A, EN55022-A, Input fuse UL/IEC127 F3.15 A H, 250 Vac EN55011-A radiated noise

Output

Meets all applicable and rele-

vant immunity standards Total regulation Main output ±2.0%

EN61000-4-2,4,5 and 6 (line and load) Auxiliary outputs ±5.0% Available Ro HS compliant

Rise time At turn-on 1.0 s, max

2 year warranty

Transient response Main output 5.0% or 250 m V

75% to 100% max. dev., 1ms max. step at 0.1 A/μs recovery to 1%

Safety

Temperature coefficient ±0.02%/°C

VDE0805/EN60950/IEC950

Overvoltage protection Main outputs 125%, ±10%

File No. 10401-3336-1096

Short circuit protection Cyclic operation Continuous

UL1950 File No. E136005 Minimum output current Single and multiple See table

CSA C22.2 No. 950 File No. LR41062
