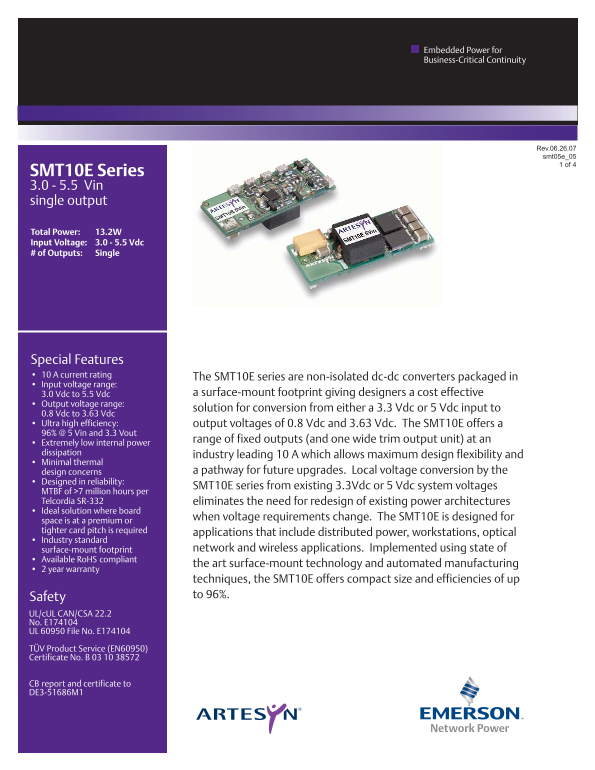

SMT10E Series 3.0 - 5.5 Vin single output
Total Power: 13.2W Input Voltage: 3.0 - 5.5 Vdc # of Outputs: Single
Special Features 10 A current rating The SMT10E series are non-isolated dc-dc converters packaged in Input voltage range:
3.0 Vdc to 5.5 Vdc a surface-mount footprint giving designers a cost effective
Output voltage range:
solution for conversion from either a 3.3 Vdc or 5 Vdc input to
0.8 Vdc to 3.63 Vdc Ultra high efficiency: output voltages of 0.8 Vdc and 3.63 Vdc. The SMT10E offers a 96% @ 5 Vin and 3.3 Vout
range of fixed outputs (and one wide trim output unit) at an
Extremely low internal power dissipation industry leading 10 A which allows maximum design flexibility and Minimal thermal
design concerns a pathway for future upgrades. Local voltage conversion by the
Designed in reliability:
SMT10E series from existing 3.3Vdc or 5 Vdc system voltages
MTBF of >7 million hours per Telcordia SR-332 eliminates the need for redesign of existing power architectures Ideal solution where board
when voltage requirements change. The SMT10E is designed for
space is at a premium or tighter card pitch is required applications that include distributed power, workstations, optical Industry standard
surface-mount footprint network and wireless applications. Implemented using state of
Available Ro HS compliant
the art surface-mount technology and automated manufacturing
2 year warranty
techniques, the SMT10E offers compact size and efficiencies of up Safety to 96%.
UL/c UL CAN/CSA 22.2 No. E174104 UL 60950 File No. E174104
TÜV Product Service (EN60950) Certificate No. B 03 10 38572
CB report and certificate to DE3-51686M1
