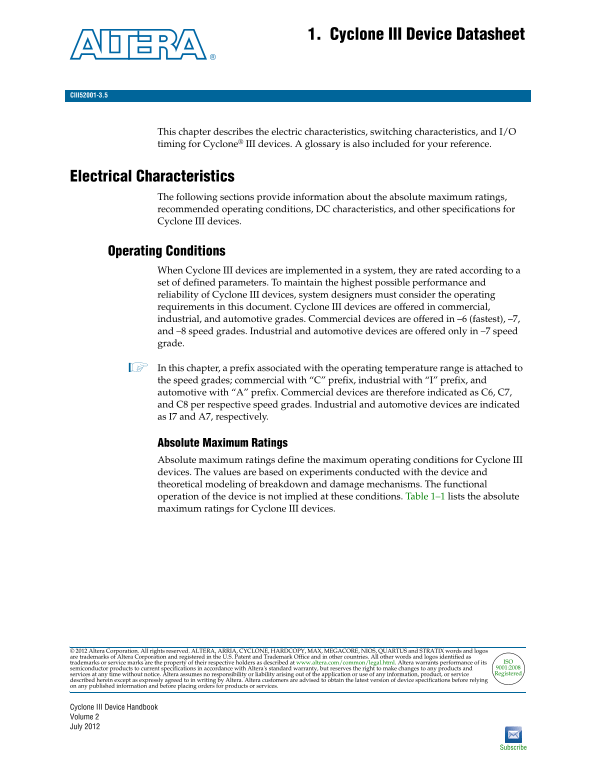

Page 1 Text Content

1. Cyclone III Device Datasheet

July 2012 CIII52001-3.5

CIII52001-3.5

This chapter describes the electric characteristics, switching characteristics, and I/O timing for Cyclone® III devices. A glossary is also included for your reference.

Electrical Characteristics

The following sections provide information about the absolute maximum ratings, recommended operating conditions, DC characteristics, and other specifications for Cyclone III devices.

Operating Conditions When Cyclone III devices are implemented in a system, they are rated according to a

set of defined parameters. To maintain the highest possible performance and reliability of Cyclone III devices, system designers must consider the operating requirements in this document. Cyclone III devices are offered in commercial, industrial, and automotive grades. Commercial devices are offered in –6 (fastest), –7, and –8 speed grades. Industrial and automotive devices are offered only in –7 speed grade.

In this chapter, a prefix associated with the operating temperature range is attached to the speed grades; commercial with “C” prefix, industrial with “I” prefix, and automotive with “A” prefix. Commercial devices are therefore indicated as C6, C7, and C8 per respective speed grades. Industrial and automotive devices are indicated as I7 and A7, respectively.

Absolute Maximum Ratings Absolute maximum ratings define the maximum operating conditions for Cyclone III devices. The values are based on experiments conducted with the device and theoretical modeling of breakdown and damage mechanisms. The functional operation of the device is not implied at these conditions. Table 1–1 lists the absolute maximum ratings for Cyclone III devices.

© 2012 Altera Corporation. All rights reserved. ALTERA, ARRI A, CYCLONE, HARDCOPY, MAX, MEGACORE, NIOS, QUARTUS and STRATIX words and logos are trademarks of Altera Corporation and registered in the U.S . Patent and Trademark Office and in other countries. All other words and logos identified as

trademarks or service marks are the property of their respectiv e holders as described at www.altera.com/common/legal.html. Altera warrants performance of its ISO semiconductor products to current specifications in accordance with Altera's standard warranty, but reserves the right to make changes to any products and 9001:2008 services at any time without notice. Altera assumes no respons ibility or liability arising out of the application or use of any information, product, or service Registered

described herein except as expressly agreed to in writing by Al tera. Altera customers are advised to obtain the latest version of device specifications before relying on any published information and before placing orders for pr oducts or services.

Cyclone III Device Handbook Volume 2 July 2012

Subscribe

Page Summary Contents For ALTERA Cyclone III Device Handbook Volume 2. Chapter 1. Cyclone III Manual

Page 1 1. Cyclone III Device Datasheet July 2012 CIII52001-3.5 CIII52001-3.5 This chapter describes the electric characteristics, switching characteristics, and I/O timing for Cyclone® III devices. A glossar...
Page 2 1–2 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics Conditions beyond those listed in Table 1–1 cause permanent damage to the device. Additionally, device operation at the absolute ...
Page 3 Chapter 1: Cyclone III Device Datasheet 1–3 Electrical Characteristics A DC signal is equivalent to 100% duty cycle. For example, a signal that overshoots to 4.2 V can only be at 4.2 V for 10.74% over...
Page 4 1–4 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics Recommended Operating Conditions This section lists the functional operation limits for AC and DC parameters for Cyclone III devi...
Page 5 Chapter 1: Cyclone III Device Datasheet 1–5 Electrical Characteristics DC Characteristics This section lists the I/O leakage current, pin capacitance, on-chip termination (OCT) tolerance, and bus hold...
Page 6 1–6 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics Table 1–5. Cyclone III Devices Bus Hold Parameter (Part 2 of 2) VCCIO (V) Parameter Condition 1.5 1.8 2.5 3.0 3.3 Unit1.2 Min Max...
Page 7 Chapter 1: Cyclone III Device Datasheet 1–7 Electrical Characteristics The OCT resistance may vary with the variation of temperature and voltage after calibration at device power-up. Use Table 1–8 and...
Page 8 1–8 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics Example 1–1 shows you the example to calculate the change of 50 I/O impedance from 25°C at 3.0 V to 85°C at 3.15 V: Example 1–1...
Page 9 Chapter 1: Cyclone III Device Datasheet 1–9 Electrical Characteristics Internal Weak Pull-Up and Weak Pull-Down Resistor Table 1–10 lists the weak pull-up and pull-down resistor values for Cyclone III...
Page 10 1–10 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics Schmitt Trigger Input Cyclone III devices support Schmitt trigger input on TDI, TMS, TCK, n STATUS, n CONFIG, n CE, CONF_DONE, a...
Page 11 Chapter 1: Cyclone III Device Datasheet 1–11 Electrical Characteristics Table 1–14. Cyclone III Devices Single-Ended SSTL and HSTL I/O Reference Voltage Specifications VCCIO (V) VREF (V) VTT (V) (2) I...
Page 12 1–12 Chapter 1: Cyclone III Device Datasheet Electrical Characteristics For more illustrations of receiver input and transmitter output waveforms, and for other differential I/O standards, refer to th...
Page 13 Chapter 1: Cyclone III Device Datasheet 1–13 Electrical Characteristics Table 1–18. Cyclone III Devices Differential I/O Standard Specifications (Part 2 of 2) VCCIO (V) VID (m V) VIc M (V) VOD (m V) (...
Page 14 1–14 Chapter 1: Cyclone III Device Datasheet Switching Characteristics Power Consumption You can use the following methods to estimate power for a design: the Excel-based EPE. the Quartus II Power Pla...
Page 15 Chapter 1: Cyclone III Device Datasheet 1–15 Switching Characteristics PLL Specifications Table 1–20 describes the PLL specifications for Cyclone III devices when operating in the commercial junction ...
Page 16 1–16 Chapter 1: Cyclone III Device Datasheet Switching Characteristics (1) (Part 2 of 2) Table 1–20. Cyclone III Devices PLL Specifications Symbol Parameter Min Typ Max Un it f SCANCLK scanclk frequen...
Page 17 Chapter 1: Cyclone III Device Datasheet 1–17 Switching Characteristics Table 1–24 lists the active configuration mode specifications for Cyclone III devices. Table 1–24. Cyclone III Devices Active Con...
Page 18 1–18 Chapter 1: Cyclone III Device Datasheet Switching Characteristics High-Speed I/O Specifications Table 1–26 through Table 1–31 list the high-speed I/O timing for Cyclone III devices. For definitio...
Page 19 Chapter 1: Cyclone III Device Datasheet 1–19 Switching Characteristics Table 1–27. Cyclone III Devices Emulated RSDS_E_1R Transmitter Timing Specifications (Part 2 of 2) Symbol Modes Unit Min Typ Max ...
Page 20 1–20 Chapter 1: Cyclone III Device Datasheet Switching Characteristics Table 1–28. Cyclone III Devices Mini-LVDS Transmitter Timing Specifications (Part 2 of 2) Symbol Modes Unit Min Typ Max Min Typ M...
Page 21 Chapter 1: Cyclone III Device Datasheet 1–21 Switching Characteristics Table 1–29. Cyclone III Devices True LVDS Transmitter Timing Specifications Symbol Modes Unit Min Max Min Max Min Max ×10 MHz ×8 ...
Page 22 1–22 Chapter 1: Cyclone III Device Datasheet Switching Characteristics Table 1–30. Cyclone III Devices Emulated LVDS Transmitter Timing Specifications (Part 2 of 2) Symbol Modes Unit Min Max Min Max M...
Page 23 Chapter 1: Cyclone III Device Datasheet 1–23 Switching Characteristics Table 1–32 lists the FPGA sampling window specifications for Cyclone III devices. Table 1–32. Cyclone III Devices FPGA Sampling W...
Page 24 1–24 Chapter 1: Cyclone III Device Datasheet Switching Characteristics (1) (Part 2 of 2) Table 1–33. Cyclone III Devices Transmitter Channel-to-Channel Skew (TCCS) – Write Side Column I/Os (ps) Row I/...
Page 25 Chapter 1: Cyclone III Device Datasheet 1–25 Switching Characteristics Table 1–34. Cyclone III Devices Memory Output Clock Jitter Specifications (Part 2 of 2) Parameter Symbol Min Max Unit Duty cycle ...
Page 26 1–26 Chapter 1: Cyclone III Device Datasheet I/O Timing Table 1–37. Cyclone III Devices IOE Programmable Delay on Column Pins (Part 2 of 2) Max Offset Number Paths Min Parameter of Fast Corner Slow Co...
Page 27 Chapter 1: Cyclone III Device Datasheet 1–27 Glossary The Excel-based I/O Timing spreadsheet is downloadable from Cyclone III Devices Literature website. Glossary Table 1–39 lists the glossary for thi...
Page 28 1–28 Chapter 1: Cyclone III Device Datasheet Glossary Table 1–39. Glossary (Part 2 of 5) Letter Term Definitions The following block diagram highlights the PLL Specification parameters. CLKOUT Pins Sw...
Page 29 Chapter 1: Cyclone III Device Datasheet 1–29 Glossary Table 1–39. Glossary (Part 3 of 5) Letter Term Definitions VCCIO VIH(AC) VIH(DC) VIL(DC) VIL(AC) Single-ended Voltage referenced I/O Standard The ...
Page 30 1–30 Chapter 1: Cyclone III Device Datasheet Glossary Table 1–39. Glossary (Part 4 of 5) Letter Term Definitions Transmitter Output Waveforms for the LVDS, mini-LVDS, PPDS and RSDS Differential I/O St...
Page 31 Chapter 1: Cyclone III Device Datasheet 1–31 Glossary Table 1–39. Glossary (Part 5 of 5) Letter Term Definitions VCM(DC) DC Common Mode Input Voltage. VDIF(AC) AC differential Input Voltage: The minim...
Page 32 1–32 Chapter 1: Cyclone III Device Datasheet Document Revision History Document Revision History Table 1–40 lists the revision history for this document. Table 1–40. Document Revision History (Part 1 ...
Page 33 Chapter 1: Cyclone III Device Datasheet 1–33 Document Revision History Table 1–40. Document Revision History (Part 2 of 3) Date Version Changes Updated “Operating Conditions” section and included info...
Page 34 1–34 Chapter 1: Cyclone III Device Datasheet Document Revision History Table 1–40. Document Revision History (Part 3 of 3) Date Version Changes Corrected current unit in Tables 1-1, 1-12, and 1-14. Ad...
