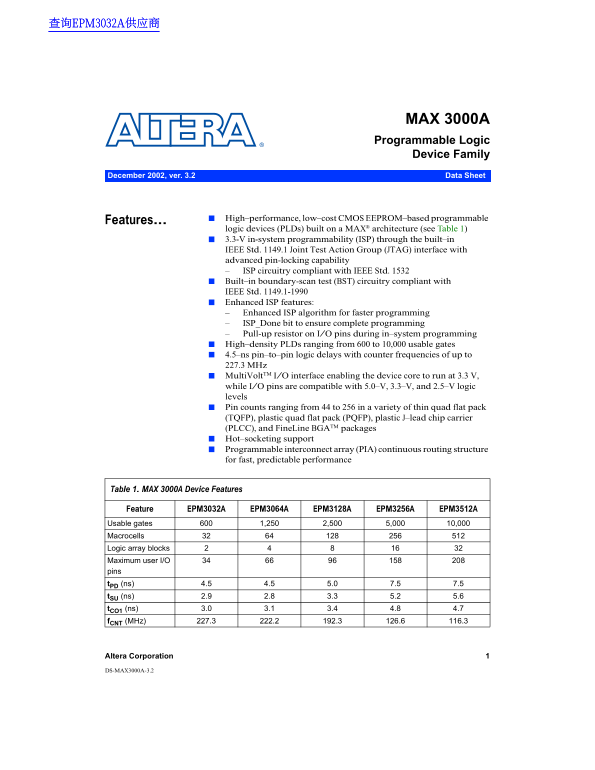

MAX 3000A Programmable Logic Device Family
December 2002, ver. 3.2 Data Sheet
High–performance, low–cost CMOS EEPROM–based programmable
Features...
logic devices (PLDs) built on a MAX® architecture (see Table 1)
3.3-V in-system programmability (ISP) through the built–in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability ISP circuitry compliant with IEEE Std. 1532 Built–in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990 Enhanced ISP features: Enhanced ISP algorithm for faster programming ISP_Done bit to ensure complete programming Pull-up resistor on I/O pins during in–system programming High–density PLDs ranging from 600 to 10,000 usable gates 4.5–ns pin–to–pin logic delays with counter frequencies of up to 227.3 MHz Multi Volt TM I/O interface enabling the device core to run at 3.3 V, while I/O pins are compatible with 5.0–V, 3.3–V, and 2.5–V logic levels Pin counts ranging from 44 to 256 in a variety of thin quad flat pack (TQFP), plastic quad flat pack (PQFP), plastic J–lead chip carrier (PLCC), and Fine Line BGATM packages Hot–socketing support Programmable interconnect array (PIA) continuous routing structure for fast, predictable performance
Table 1. MAX 3000A Device Features
Feature EPM3032A EPM3064A EPM3128A EPM3256A EPM3512A Usable gates 1,250 2,500 5,000 10,000 Macrocells Logic array blocks Maximum user I/O pins
t PD (ns) 4.5 4.5 5.0 7.5 7.5
t SU (ns) 2.9 2.8 3.3 5.2 5.6
t CO1 (ns) 3.0 3.1 3.4 4.8 4.7
f CNT (MHz) 227.3 222.2 192.3 126.6 116.3
Altera Corporation
DS-MAX3000A-3.2
