ALTERA MAX 7000A Handbook

Summary

Explore high-performance MAX 7000A Programmable Logic Devices (PLDs), offering robust, EEPROM-based digital control from low to high density. This datasheet provides comprehensive technical details on devices featuring 3.3V operation, built-in JTAG and boundary-scan test circuitry, and support for up to 10,000 usable gates. Designed for hardware engineers and electronics designers, it covers crucial specifications, including ultra-fast timing parameters (4.5ns), various industry standards compliance, and development integration utilizing Altera’s advanced design tools.

📄 Preview PAGE OF 64

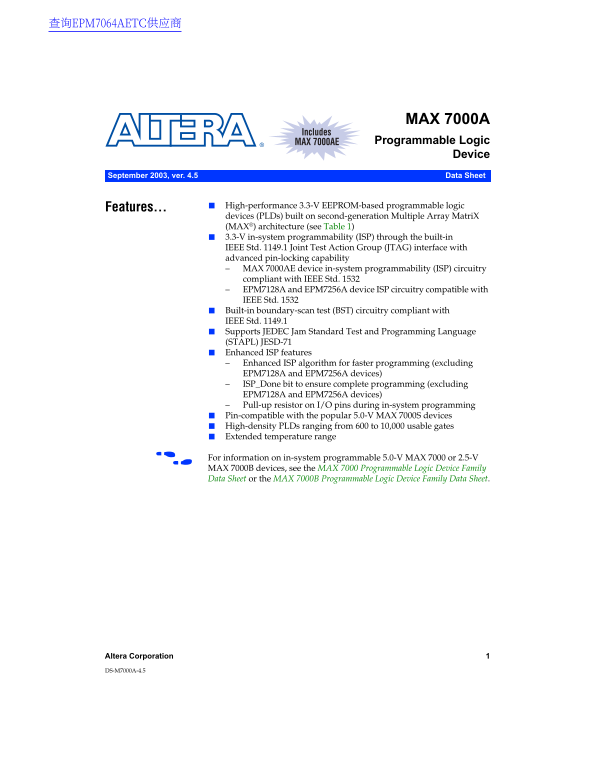

Page 1 Text Content

查询EPM7064AETC供应商

MAX 7000A

Includes

MAX 7000AE Programmable Logic

Device

September 2003, ver. 4.5 Data Sheet

High-performance 3.3-V EEPROM-based programmable logic

Features...

devices (PLDs) built on second-generation Multiple Array Matri X (MAX®) architecture (see Table 1) 3.3-V in-system programmability (ISP) through the built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability MAX 7000AE device in-system programmability (ISP) circuitry compliant with IEEE Std. 1532 EPM7128A and EPM7256A device ISP circuitry compatible with IEEE Std. 1532 Built-in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1 Supports JEDEC Jam Standard Test and Programming Language (STAPL) JESD-71 Enhanced ISP features Enhanced ISP algorithm for faster programming (excluding EPM7128A and EPM7256A devices) ISP_Done bit to ensure complete programming (excluding EPM7128A and EPM7256A devices) Pull-up resistor on I/O pins during in-system programming Pin-compatible with the popular 5.0-V MAX 7000S devices High-density PLDs ranging from 600 to 10,000 usable gates Extended temperature range

For information on in-system programmable 5.0-V MAX 7000 or 2.5-V MAX 7000B devices, see the MAX 7000 Programmable Logic Device Family Data Sheet or the MAX 7000B Programmable Logic Device Family Data Sheet.

Altera Corporation

DS-M7000A-4.5

Page Summary Contents For ALTERA MAX 7000A Handbook

Page 1 查询EPM7064AETC供应商 MAX 7000A Includes MAX 7000AE Programmable Logic Device September 2003, ver. 4.5 Data Sheet High-performance 3.3-V EEPROM-based programmable logic Features... devices (PLDs) built on ...
Page 2 MAX 7000A Programmable Logic Device Data Sheet Table 1. MAX 7000A Device Features Feature EPM7032AE EPM7064AE EPM7128AE EPM7256AE EPM7512AE Usable gates 1,250 2,500 5,000 10,000 Macrocells Logic array...
Page 3 MAX 7000A Programmable Logic Device Data Sheet Software design support and automatic place-and-route provided by Altera’s development systems for Windows-based PCs and Sun SPARCstation, and HP 9000 Se...
Page 4 MAX 7000A Programmable Logic Device Data Sheet The MAX 7000A architecture supports 100% transistor-to-transistor logic (TTL) emulation and high-density integration of SSI, MSI, and LSI logic functions...
Page 5 MAX 7000A Programmable Logic Device Data Sheet MAX 7000A devices use CMOS EEPROM cells to implement logic functions. The user-configurable MAX 7000A architecture accommodates a variety of independent ...
Page 6 MAX 7000A Programmable Logic Device Data Sheet The MAX 7000A architecture includes the following elements: Functional Description Logic array blocks (LABs) Macrocells Expander product terms (shareable...
Page 7 MAX 7000A Programmable Logic Device Data Sheet Figure 1. MAX 7000A Device Block Diagram INPUT/GCLK1 INPUT/OE2/GCLK2 INPUT/OE1 INPUT/GCLRn 6 or 10 Output Enables (1) 6 or 10 Output Enables (1) 2 to 16 ...
Page 8 MAX 7000A Programmable Logic Device Data Sheet Macrocells MAX 7000A macrocells can be individually configured for either sequential or combinatorial logic operation. The macrocells consist of three fu...
Page 9 MAX 7000A Programmable Logic Device Data Sheet For registered functions, each macrocell flipflop can be individually programmed to implement D, T, JK, or SR operation with programmable clock control. ...
Page 10 MAX 7000A Programmable Logic Device Data Sheet Expander Product Terms Although most logic functions can be implemented with the five product terms available in each macrocell, more complex logic funct...
Page 11 MAX 7000A Programmable Logic Device Data Sheet Parallel Expanders Parallel expanders are unused product terms that can be allocated to a neighboring macrocell to implement fast, complex logic function...
Page 12 MAX 7000A Programmable Logic Device Data Sheet Figure 4. MAX 7000A Parallel Expanders Unused product terms in a macrocell can be allocated to a neighboring macrocell. From Previous Macrocell Preset Pr...
Page 13 MAX 7000A Programmable Logic Device Data Sheet Figure 5. MAX 7000A PIA Routing To LAB PIA Signals While the routing delays of channel-based routing schemes in masked or FPGAs are cumulative, variable,...
Page 14 MAX 7000A Programmable Logic Device Data Sheet Figure 6. I/O Control Block of MAX 7000A Devices 6 or 10 Global Output Enable Signals (1) OE Select Multiplexer To Other I/O Pins GND From Macrocell Open...
Page 15 MAX 7000A Programmable Logic Device Data Sheet MAX 7000A devices support the Same Frame pin-out feature for Same Frame Fine Line BGA packages. The Same Frame pin-out feature is the Pin-Outs arrangemen...
Page 16 MAX 7000A Programmable Logic Device Data Sheet MAX 7000A devices can be programmed in-system via an industry- In-System standard 4-pin IEEE Std. 1149.1 (JTAG) interface. ISP offers quick, efficient Pr...
Page 17 MAX 7000A Programmable Logic Device Data Sheet For more information on using the Jam STAPL language, see Application Note 88 (Using the Jam Language for ISP & ICR via an Embedded Processor) and Ap...
Page 18 MAX 7000A Programmable Logic Device Data Sheet Programming Times The time required to implement each of the six programming stages can be broken into the following two elements: A pulse time to erase,...
Page 19 MAX 7000A Programmable Logic Device Data Sheet The programming times described in Tables 5 through 7 are associated with the worst-case method using the enhanced ISP algorithm. Table 5. MAX 7000A t PU...
Page 20 MAX 7000A Programmable Logic Device Data Sheet Table 7. MAX 7000A Stand-Alone Verification Times for Different Test Clock Frequencies Device f TCK Units 10 MHz 5 MHz 2 MHz 1 MHz 500 k Hz 200 k Hz 100 ...
Page 21 MAX 7000A Programmable Logic Device Data Sheet Table 8. MAX 7000A JTAG Instructions JTAG Instruction Description SAMPLE/PRELOAD Allows a snapshot of signals at the device pins to be captured and exami...
Page 22 MAX 7000A Programmable Logic Device Data Sheet The instruction register length of MAX 7000A devices is 10 bits. The user electronic signature (UES) register length in MAX 7000A devices is 16 bits. The...
Page 23 MAX 7000A Programmable Logic Device Data Sheet Figure 8 shows timing information for the JTAG signals. Figure 8. MAX 7000A JTAG Waveforms TMS t JCP JCL t JCH t JPSU t t JPH t JPZX t JPCO JPXZ t JSSU t...
Page 24 MAX 7000A Programmable Logic Device Data Sheet MAX 7000A devices offer a power-saving mode that supports low-power Programmable operation across user-defined signal paths or the entire device. This Sp...
Page 25 MAX 7000A Programmable Logic Device Data Sheet Open-Drain Output Option MAX 7000A devices provide an optional open-drain (equivalent to open-collector) output for each I/O pin. This open-drain output ...
Page 26 MAX 7000A Programmable Logic Device Data Sheet Because MAX 7000A devices can be used in a mixed-voltage environment, Power they have been designed specifically to tolerate any possible power-up Sequen...
Page 27 MAX 7000A Programmable Logic Device Data Sheet Figure 9. MAX 7000A AC Test Conditions Power supply transients can affect AC measurements. Simultaneous transitions VCC of multiple outputs should be avo...
Page 28 MAX 7000A Programmable Logic Device Data Sheet Table 14. MAX 7000A Device Recommended Operating Conditions Symbol Parameter Conditions Min Max Unit VCCINT Supply voltage for internal logic (3), (13) 3...
Page 29 MAX 7000A Programmable Logic Device Data Sheet Table 15. MAX 7000A Device DC Operating Conditions Note (6) Symbol Parameter Conditions Min Max Unit VIH High-level input voltage 1.7 5.75 VIL Low-level ...
Page 30 MAX 7000A Programmable Logic Device Data Sheet Notes to tables: (1) See the Operating Requirements for Altera Devices Data Sheet. (2) Minimum DC input voltage is –0.5 V. During transitions, the inputs...
Page 31 MAX 7000A Programmable Logic Device Data Sheet Figure 10 shows the typical output drive characteristics of MAX 7000A devices. Figure 10. Output Drive Characteristics of MAX 7000A Devices MAX 7000AE De...
Page 32 MAX 7000A Programmable Logic Device Data Sheet Figure 11. MAX 7000A Timing Model Internal Output Enable Delay IOE Input Global Control Delay Delay t GLOB Register Output Parallel Delay Delay Logic Arr...
Page 33 MAX 7000A Programmable Logic Device Data Sheet Figure 12. MAX 7000A Switching Waveforms t R & t F < 2 ns. Inputs are Combinatorial Mode driven at 3 V for a logic high and 0 V for a logic low. A...
Page 34 MAX 7000A Programmable Logic Device Data Sheet Tables 17 through 30 show EPM7032AE, EPM7064AE, EPM7128AE, EPM7256AE, EPM7512AE, EPM7128A, and EPM7256A timing information. Table 17. EPM7032AE External ...
Page 35 MAX 7000A Programmable Logic Device Data Sheet Table 18. EPM7032AE Internal Timing Parameters (Part 1 of 2) Note (1) Symbol Parameter Conditions Speed Grade Unit -4 -7 -10 Min Max Min Max Min Max t IN...
Page 36 MAX 7000A Programmable Logic Device Data Sheet Table 18. EPM7032AE Internal Timing Parameters (Part 2 of 2) Note (1) Symbol Parameter Conditions Speed Grade Unit -4 -7 -10 Min Max Min Max Min Max t IC...
Page 37 MAX 7000A Programmable Logic Device Data Sheet Table 19. EPM7064AE External Timing Parameters Note (1) Symbol Parameter Conditions Speed Grade Unit -4 -7 -10 Min Max Min Max Min Max t PD1 Input to non...
Page 38 MAX 7000A Programmable Logic Device Data Sheet Table 20. EPM7064AE Internal Timing Parameters (Part 1 of 2) Note (1) Symbol Parameter Conditions Speed Grade Unit -4 -7 -10 Min Max Min Max Min Max t IN...
Page 39 MAX 7000A Programmable Logic Device Data Sheet Table 20. EPM7064AE Internal Timing Parameters (Part 2 of 2) Note (1) Symbol Parameter Conditions Speed Grade Unit -4 -7 -10 Min Max Min Max Min Max t EN...
Page 40 MAX 7000A Programmable Logic Device Data Sheet Table 21. EPM7128AE External Timing Parameters Note (1) Symbol Parameter Conditions Speed Grade Unit -5 -7 -10 Min Max Min Max Min Max t PD1 Input to non...

Manual Details

Brand Altera
Pages 64
File Size 387.51 KB
Published May 13, 2026
156 views

Enter the captcha to get the download link:

captcha

Frequently Asked Questions

What voltage levels can I connect to this device's I/O pins?

The MultiVolt I/O interface allows core operation at 3.3 V while being compatible with 5.0-V, 3.3-V, and 2.5-V logic levels.

Does the MAX 7000A support in-system programming?

Yes, it supports ISP via a built-in IEEE Std. 1149.1 JTAG interface and is compliant with IEEE Std. 1532 standards.

What is the range of usable gates available for these PLDs?

The high-density PLDs range in capacity from 600 to 10,000 usable gates.

What kinds of packages are available?

Pins count ranges from 44 to 256 and is offered in multiple formats including TQFP, PQFP, BGA, and PLCC.
