A high-precision, RoHS compliant surface mount quartz crystal unit designed for reliable clock signal generation at 32 MHz. This component offers exceptional frequency stability and an extended operating range of -40 to +85°C, making it ideal for demanding applications. The accompanying technical specifications provide engineers with all necessary electrical, mechanical, and environmental data—including capacitance, tolerances, and soldering guidelines—to ensure accurate integration into any embedded electronic system design.

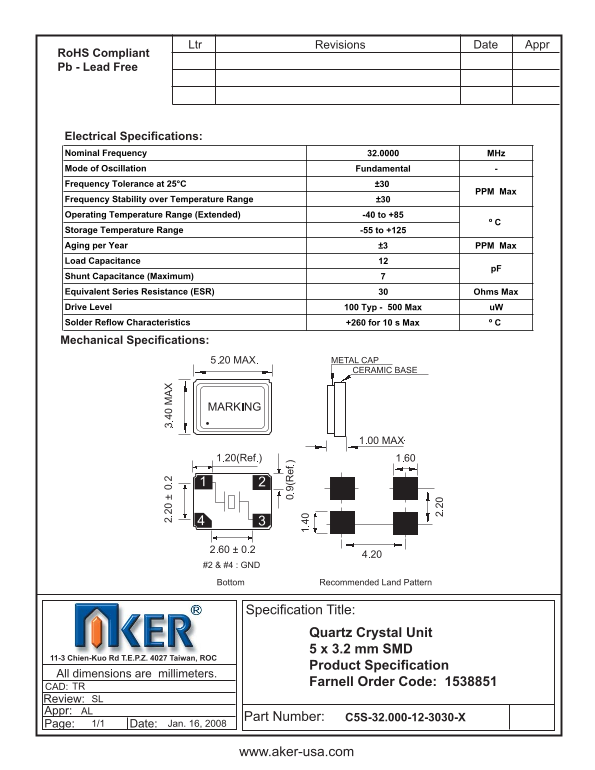

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 32.0000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±30 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 5 x 3.2 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538851TR
Review: SL
Appr: AL
Part Number: C5S-32.000-12-3030-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER Quartz Crystal Unit 5 x 3.2 mm SMD Product Specification Technical Report Farnell Order Code 1538851 Owner's Manual - Instructions and User Guide
Manual Details
| Brand | Crystal |
|---|---|
| Pages | 1 |
| File Size | 66.93 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the operating temperature limits for this crystal unit?
The extended operating temperature range is -40 to +85 degrees Celsius.
What are the key electrical specifications of the crystal?
The nominal frequency is 32.000 MHz, with a fundamental mode of oscillation and a capacitance of up to 12 pF.
How stable is this unit over temperature variations?
It has a maximum frequency stability of ±30 parts per million (PPM) over the device's operating temperature range.
What are the storage temperature limits?
The quartz crystal unit can be stored in temperatures ranging from -55 to +125 degrees Celsius.
