AKER RoHS Compliant Pb Quartz Crystal Unit 3.2 x 2.5 mm SMD Product Specification TR Farnell Order Code 1640982 Owner's Manual, User Guide
Summary
This high-precision SMD Quartz Crystal Unit is an essential timing component designed for advanced electronics applications requiring robust frequency stability and reliable clocking. The comprehensive manual provides technical details, including operation parameters, temperature tolerances, capacitance values, and reflow characteristics, guiding engineers through optimal integration. Ideal for professional electronics designers and manufacturers working on embedded systems or portable devices where consistent, high-accuracy timing performance across extreme temperatures is critical.
Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free

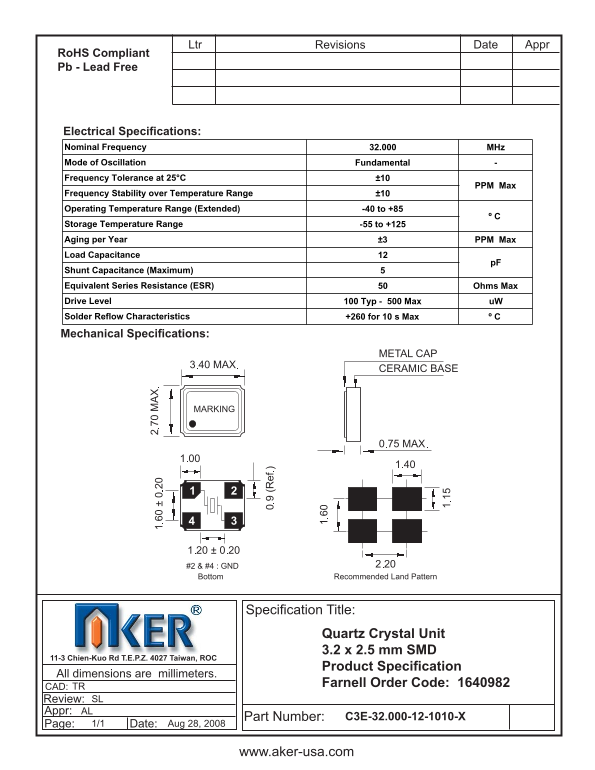

Electrical Specifi cations: Nominal Frequency 32.000 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±10
PPM Max
Frequency Stability over Temperature Range ±10 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 3.2 x 2.5 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1640982TR
Review: SL
Appr: AL
Part Number: C3E-32.000-12-1010-X
Page: 1/1 Date: Aug 28, 2008
www.aker-usa.com
