AKER Clock Oscillator 3.2 x 2.5 mm SMD Product Specification Technical Review Farnell Order Code 1538911
Summary
This precision clock oscillator provides reliable and stable timing signals at a nominal frequency of 14.74560 MHz. Featuring an extended operating temperature range (-40 to +85°C) and RoHS compliance, this robust SMD component is engineered for demanding electronic applications where signal integrity is critical. This summary guides developers through the detailed electrical specifications—including supply voltage, output symmetry, and low power consumption (7 mA max)—and mechanical details, ensuring proper integration into complex circuit designs. It is ideal for hardware engineers needing a dependable, accurate timing source for networking or specialized control systems.
Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 14.74560 MHz Temperature Stability ±50
PPM Max
Aging per Year ±3 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Supply Voltage 3.3 ± 5% Vdc Supply Current m A Max
Logic High (Voh) 90% Vdc Min
Output Voltage
Logic Low (Vol) 10% Vdc Max
Output Symmetry 40 to 60 Output Load p F HCMOS Rise and Fall Time ns Max Enable-Disable Function Tri-State Mechanical Specifi cations:
Specifi cation Title:
Clock Oscillator 3.2 x 2.5 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538911TR
Review: SL
Appr: AL
Part Number: S33305-14.7456-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com

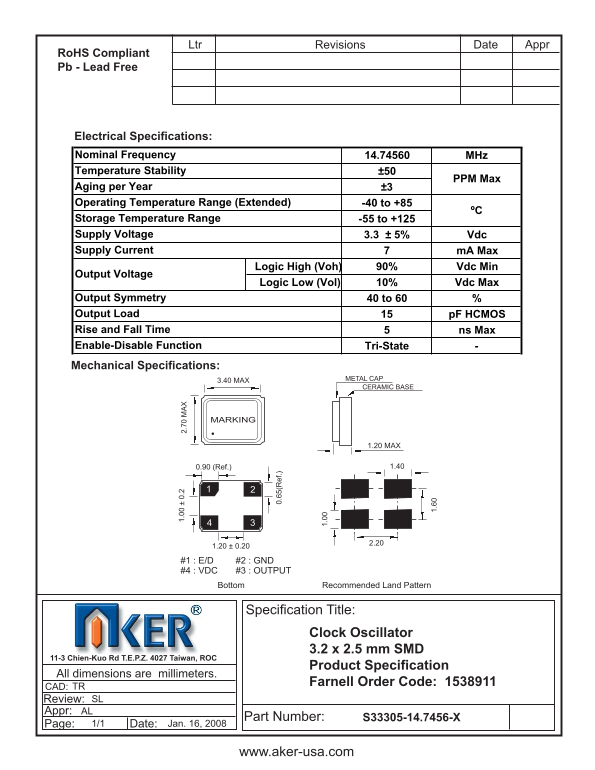

Page Summary Contents For AKER Clock Oscillator 3.2 x 2.5 mm SMD Product Specification Technical Review Farnell Order Code 1538911
