Aker -Clock Oscillator 3.2x2.5mm SMD Product Specification TR Farnell Order Code 1538919 Owner's Manual
Summary
A high-performance, lead-free clock oscillator designed for demanding electronic systems requiring stable timing at 40 MHz. This component is built to meet stringent industry standards, including RoHS compliance, and operates reliably across an extended temperature range of -40°C to +85°C. The accompanying datasheet provides comprehensive technical specifications—including detailed electrical characteristics (Voh, Vol) and mechanical dimensions—making it the essential resource for hardware engineers integrating a reliable, low-power timing solution into their design projects.

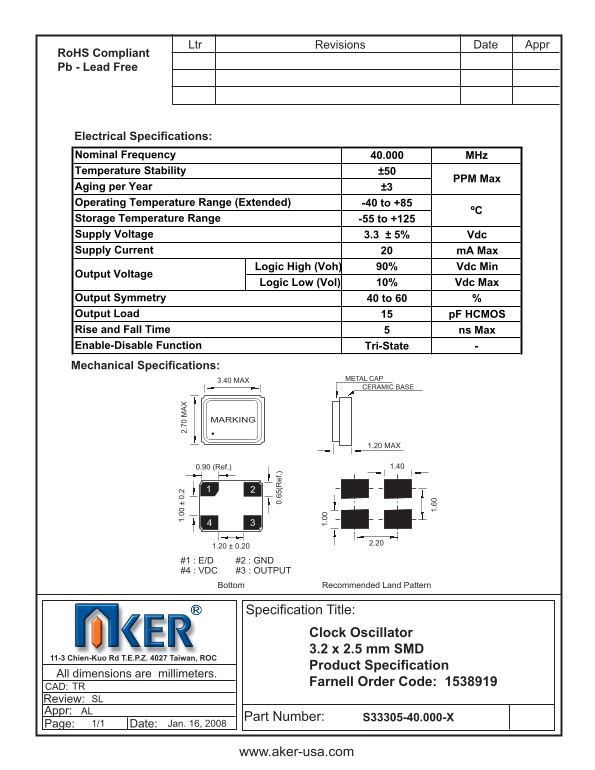

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 40.000 MHz Temperature Stability ±50
PPM Max
Aging per Year ±3 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Supply Voltage 3.3 ± 5% Vdc Supply Current m A Max
Logic High (Voh) 90% Vdc Min
Output Voltage
Logic Low (Vol) 10% Vdc Max
Output Symmetry 40 to 60 Output Load p F HCMOS Rise and Fall Time ns Max Enable-Disable Function Tri-State Mechanical Specifi cations:
Specifi cation Title:
Clock Oscillator 3.2 x 2.5 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538919TR
Review: SL
Appr: AL
Part Number: S33305-40.000-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
