Aker Quartz Crystal Unit 7 x 5 mm SMD Product Specification TR Farnell Order Code 1538811 Manual
Summary
This specialized Quartz Crystal Unit provides high-precision oscillation for electronic circuits. The product excels with a defined 11.0592 MHz frequency, stable performance across an extended -40 to +85°C operational temperature range, and robust compliance regarding lead-free soldering. This specification guide is essential reading for electronics engineers and professional designers requiring reliable component integration into advanced timing or signal processing systems.

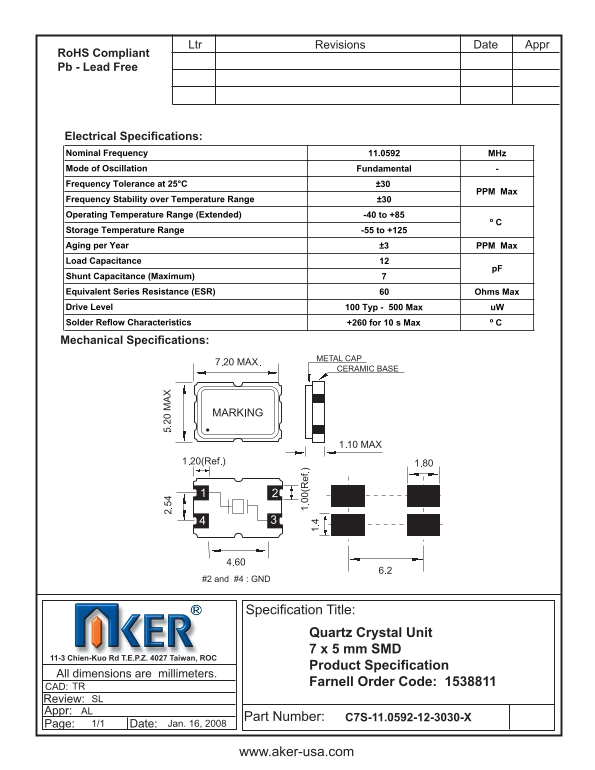

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 11.0592 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±30 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 7 x 5 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538811TR
Review: SL
Appr: AL
Part Number: C7S-11.0592-12-3030-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For Aker Quartz Crystal Unit 7 x 5 mm SMD Product Specification TR Farnell Order Code 1538811 Manual
Manual Details
| Brand | Crystal |
|---|---|
| Pages | 1 |
| File Size | 56.74 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What are the maximum capacitance specifications?
The device supports a max load capacitance of 12 pF and a shunt capacitance maximum of 7 pF.
