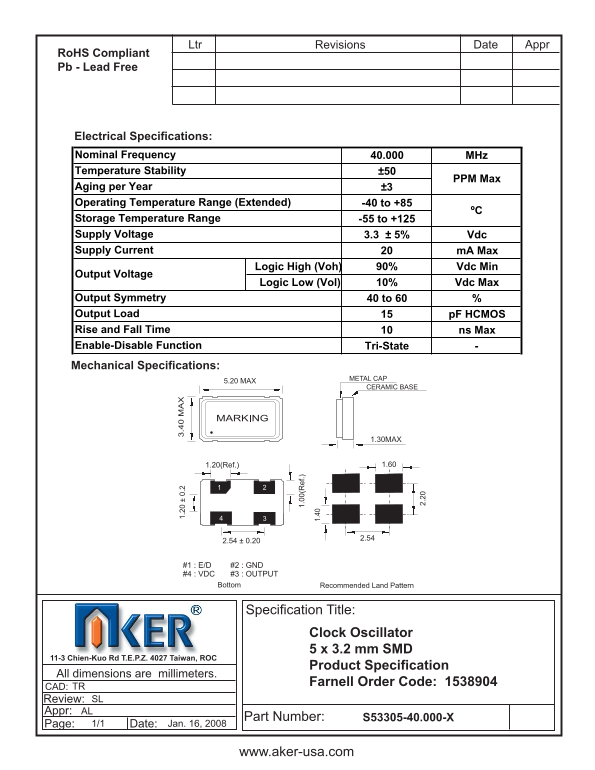

AKER - Clock Oscillator 5 x 3.2 mm SMD Product Specification TR Farnell Order Code 1538904 Owner's Manual
Summary
Explore comprehensive technical details for this high-precision clock oscillator. This manual is an essential resource for electrical engineers and hardware designers integrating reliable timing components into complex electronic systems. It provides detailed specifications covering nominal frequency (40 MHz), voltage requirements (3.3V ± 5%), operational temperature ranges (-40 to +85°C), and precise mechanical dimensions. Ideal for projects requiring dependable, RoHS-compliant clock generation, ensuring optimal system performance from prototyping through mass production.
Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 40.000 MHz Temperature Stability ±50
PPM Max
Aging per Year ±3 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Supply Voltage 3.3 ± 5% Vdc Supply Current m A Max
Logic High (Voh) 90% Vdc Min
Output Voltage
Logic Low (Vol) 10% Vdc Max
Output Symmetry 40 to 60 Output Load p F HCMOS Rise and Fall Time ns Max Enable-Disable Function Tri-State Mechanical Specifi cations:
Specifi cation Title:
Clock Oscillator 5 x 3.2 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538904TR
Review: SL
Appr: AL
Part Number: S53305-40.000-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
