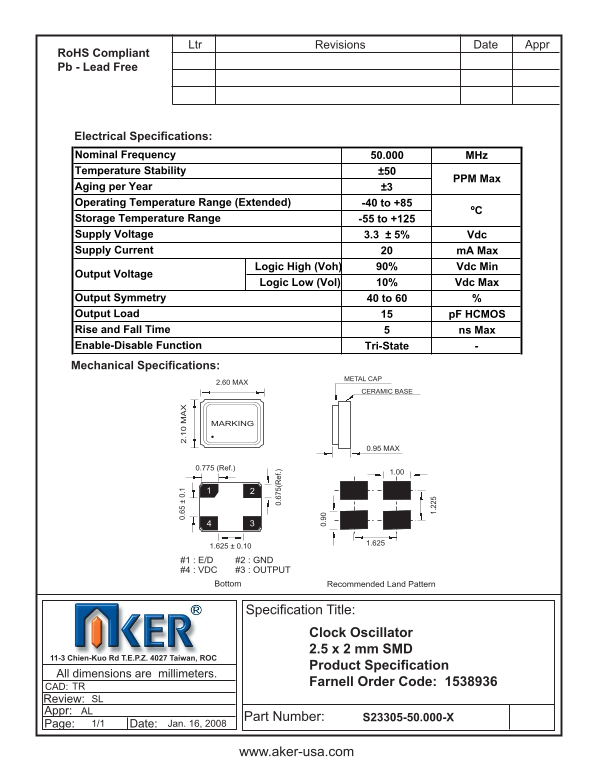

AKER Clock Oscillator 2.5 x 2 mm SMD Product Specification Technical Reference Farnell Order Code 1538936
Summary
This technical specification sheet details a high-precision, compact SMD Clock Oscillator, designed for reliable timing in advanced electronic systems. Featuring a 50 MHz nominal frequency and robust performance over an extended temperature range (-40°C to +85°C), this lead-free component is ideal for industrial and embedded applications. The manual provides crucial electrical and mechanical guidelines, including detailed parameters for voltage tolerance, signal timing (HCMOS compatibility), and power stability, ensuring engineers can integrate a perfectly reliable clock source into their cutting-edge hardware designs.
Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 50.000 MHz Temperature Stability ±50
PPM Max
Aging per Year ±3 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Supply Voltage 3.3 ± 5% Vdc Supply Current m A Max
Logic High (Voh) 90% Vdc Min
Output Voltage
Logic Low (Vol) 10% Vdc Max
Output Symmetry 40 to 60 Output Load p F HCMOS Rise and Fall Time ns Max Enable-Disable Function Tri-State Mechanical Specifi cations:
Specifi cation Title:
Clock Oscillator 2.5 x 2 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538936TR
Review: SL
Appr: AL
Part Number: S23305-50.000-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
