AKER 5 x 3.2 mm SMD Quartz Crystal Unit Data Sheet
Summary
This precise, RoHS-compliant SMD Quartz Crystal Unit is a fundamental component for high-frequency, timing applications critical to electronic design. The datasheet provides comprehensive coverage of its performance specifications, including operational frequency stability (14.7456 MHz), extended temperature range ratings, maximum load capacitance, and solder reflow guidelines. It is designed for electronics engineers building reliable embedded systems that require accurate, stable clock signals in demanding environments.

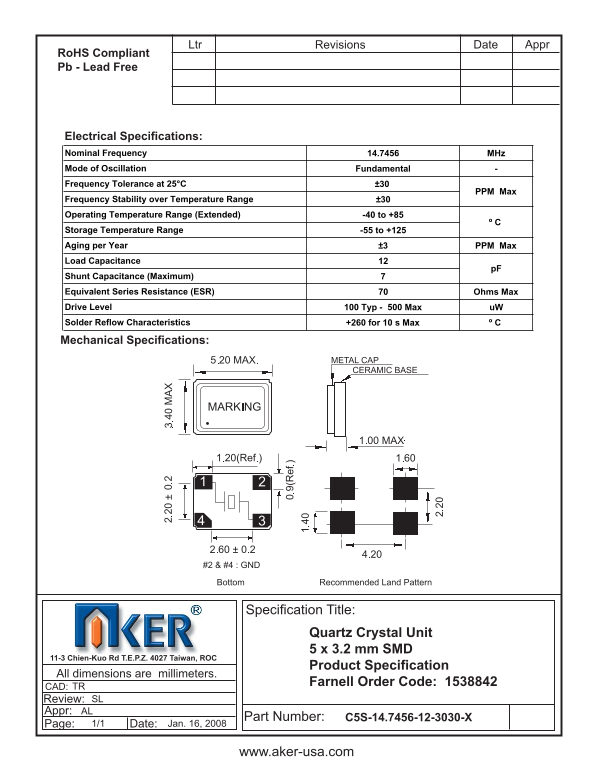

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 14.7456 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±30 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 5 x 3.2 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538842TR
Review: SL
Appr: AL
Part Number: C5S-14.7456-12-3030-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
