A vital component for precision electronics, this high-frequency SMD Quartz Crystal Unit provides stable timing accuracy for demanding applications. The detailed manual covers every critical specification—including electrical parameters, frequency tolerance (14.318 MHz), robust operating temperature ranges (-40 to +85°C), and mechanical dimensions. It is essential reading for electronic engineers and circuit design professionals who require reliable, consistently accurate performance in stable timing circuits, ensuring your product meets stringent industry standards.

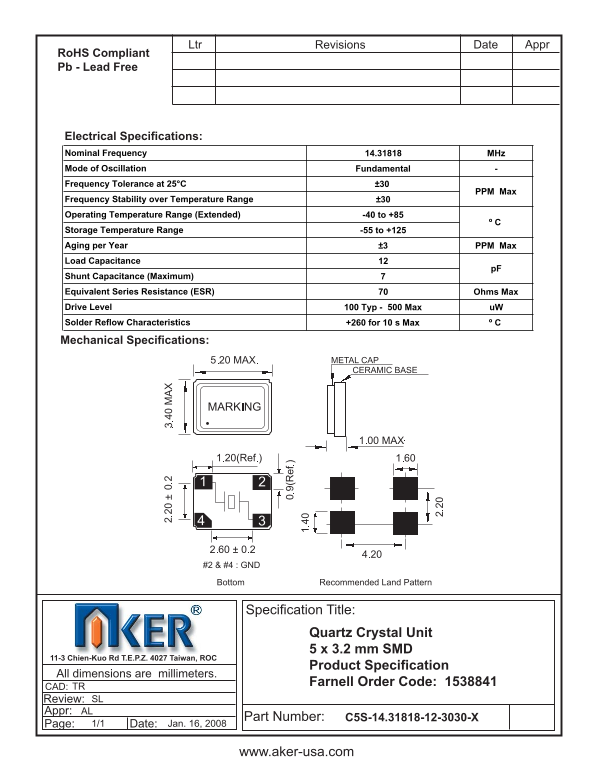

Page 1 Text Content
Revisions Ltr Date Appr
Ro HS Compliant Pb - Lead Free
Electrical Specifi cations: Nominal Frequency 14.31818 MHz Mode of Oscillation Fundamental Frequency Tolerance at 25°C ±30
PPM Max
Frequency Stability over Temperature Range ±30 Operating Temperature Range (Extended) -40 to +85
Storage Temperature Range -55 to +125 Aging per Year ±3 PPM Max Load Capacitance
Shunt Capacitance (Maximum) Equivalent Series Resistance (ESR) Ohms Max Drive Level 100 Typ - 500 Max u W Solder Reflow Characteristics +260 for 10 s Max º C
Mechanical Specifi cations:
Specifi cation Title:
Quartz Crystal Unit 5 x 3.2 mm SMD
11-3 Chien-Kuo Rd T.E.P.Z. 4027 Taiwan, ROC
Product Specifi cation
All dimensions are millimeters.
Farnell Order Code: 1538841TR
Review: SL
Appr: AL
Part Number: C5S-14.31818-12-3030-X
Page: 1/1 Date: Jan. 16, 2008
www.aker-usa.com
Page Summary Contents For AKER 5 x 3.2 mm SMD Quartz Crystal Unit handbook
Manual Details
| Brand | Crystal |
|---|---|
| Pages | 1 |
| File Size | 66.93 KB |
| Published | May 18, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the operating temperature range for this crystal unit?
The extended operating temperature range is from -40 to +85 degrees C.
Does this component comply with environmental standards regarding lead?
Yes, it is RoHS Compliant and Lead-Free.
What are the electrical specifications (frequency and capacitance)?
It has a nominal frequency of 14.31818 MHz and a max load capacitance of 12 pF.
How does the unit perform regarding reliability over time?
The aging rate is specified at ±3 PPM per year.
