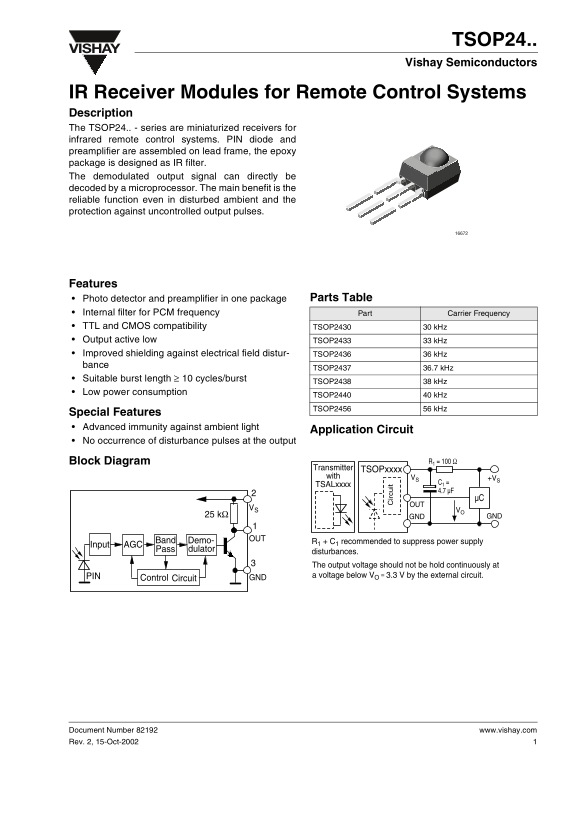

TSOP24..

VISHAY

Vishay Semiconductors

IR Receiver Modules for Remote Control Systems Description The TSOP24.. - series are miniaturized receivers for infrared remote control systems. PIN diode and preamplifier are assembled on lead frame, the epoxy package is designed as IR filter. The demodulated output signal can directly be decoded by a microprocessor. The main benefit is the reliable function even in disturbed ambient and the protection against uncontrolled output pulses.

Features

Photo detector and preamplifier in one package Parts Table

Internal filter for PCM frequency Part Carrier Frequency TTL and CMOS compatibility TSOP2430 30 k Hz Output active low TSOP2433 33 k Hz Improved shielding against electrical field distur- TSOP2436 36 k Hz bance

TSOP2437 36.7 k Hz

Suitable burst length ≥ 10 cycles/burst

TSOP2438 38 k Hz Low power consumption ir cu it TSOP2440 40 k Hz TSOP2456 56 k Hz

Special Features Advanced immunity against ambient light

Application Circuit

No occurrence of disturbance pulses at the output

Block Diagram R1

Transmitter TSOPxxxx with VS +VS

TSALxxxx

kΩ GND GND

Band OUTDemo-

R1 C1 recommended to suppress power supply

Pass AGCInput dulator

disturbances. The output voltage should not be hold continuously at PIN voltage below VO 3.3 by the external circuit.

Control Circuit GND

Document Number 82192 www.vishay.com Rev. 2, 15-Oct-2002
