User's Manual for Denon ASD-3N
Summary
The Control Dock for iPod is a specialized media accessory designed to integrate your portable audio player into complex home entertainment systems. This manual serves as a comprehensive guide covering everything from essential safety instructions and connectivity setup (including analog, S-Video, and Ethernet) to detailed operational tips and troubleshooting solutions. It is essential reading for users looking to reliably connect the iPod's digital output and manage seamless multi-room audio integration within their living space or venue.

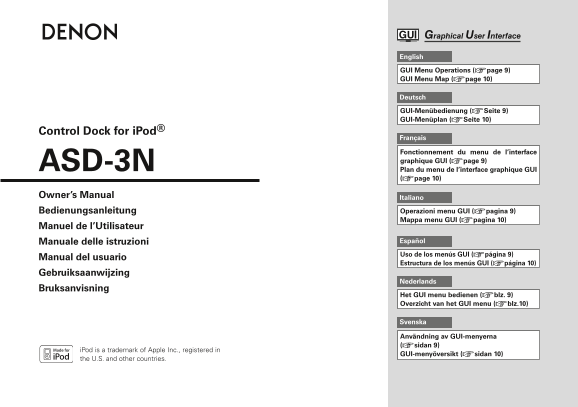

Page 1 Text Content
ENGLISH
ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin
Graphical User Interface English GUI Menu Operations (vpage 9) GUI Menu Map (vpage 10)
Deutsch GUI-Menübedienung (v Seite 9) GUI-Menüplan (v Seite 10)
Control Dock for i Pod®
Français
Fonctionnement du menu de l’interface graphique GUI (vpage 9)
ASD-3N Plan du menu de l’interface graphique GUI
(vpage 10)
Owner’s Manual Italiano
Bedienungsanleitung Operazioni menu GUI (vpagina 9) Mappa menu GUI (vpagina 10)
Manuel de l’Utilisateur
Manuale delle istruzioni Español Uso de los menús GUI (vpágina 9)
Manual del usuario
Estructura de los menús GUI (vpágina 10)
Gebruiksaanwijzing
Nederlands
Bruksanvisning
Het GUI menu bedienen (vblz. 9) Overzicht van het GUI menu (vblz.10)
Svenska
Användning av GUI-menyerna (vsidan 9)
i Pod is a trademark of Apple Inc., registered in
GUI-menyöversikt (vsidan 10)
the U.S. and other countries.
Page Summary Contents For User's Manual for Denon ASD-3N
Page 1
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Graphical User Interface English GUI Menu Operations (vpage 9) GUI Menu Map (vpage 10) Deutsch GUI-Menübedienung (v Seite 9) GUI-Menü...
Page 2
ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA SAFETY INSTRUCTIONS 1. Read Instructions – All the safety and operating instructions should be read 12. Grounding or Polarization – This pr...
Page 3
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH 18. Overloading – Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire o...
Page 4
ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA • DECLARATION OF CONFORMITY • DECLARACIÓN DE CONFORMIDAD We declare under our sole responsibility that this product, to which this Declaram...
Page 5
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH CAUTION: PRECAUCIÓN: To completely disconnect this product from the Para desconectar completamente este producto de mains, disconnect the p...
Page 6
ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA CAUTION: ATTENZIONE: OBSERVERA: • The ventilation should not be impeded by covering the • Le aperture di ventilazione non devono essere ost...
Page 7
SVENSKA NEDERLANDS ESPAÑOL ITALIANO FRANCAIS DEUTSCH ENGLISH NOTE ON USE OBSERVERA ANGÅENDE NOTE SULL’USO • Avoid high temperatures. • Evitate di esporre l’unità a temperature elevate. ANVÄNDNINGEN Al...
Page 8
ENGLISH DEUTSCH FRANCAIS ITALIANO ESPAÑOL NEDERLANDS SVENSKA A NOTE ABOUT RECYCLING: ACERCA DEL RECICLAJE: This product’s packaging materials are recyclable and can be Los materiales de embalaje de es...
Page 9
ENGLISH Contents Getting Started GUI ···················································································································12 a Screensaver ·······························...
Page 10
ENGLISH About the Remote Control • Do not use any AC adapter other than the specified one. Doing so could result in fires or electric shock. Getting Started • The included AC adapter is exclusively fo...
Page 11
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin CAUTION Inserting the Battery Operating Range of the Remote RISK OF EXPLOSION IF BATTERY IS REPLACED Control Unit q Remove the rear l...
Page 12
ENGLISH Part Names and Functions Remote Control Unit For buttons not explained here, see the page indicated in parentheses ( ). u RANDOM button i MEMORY button Q1 Top Panel / Front Panel o Muting butt...
Page 13
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Connections Mount the included universal adapter suited for your i Pod® to the control dock’s universal adapter slot. Mounting the un...
Page 14
ENGLISH b2 ASD-3N can be operated from an amplifier or system device equipped with a Connection to devices equipped with Dock DOCK CONTROL terminal connected to the ASD-3N. Control or LAN Features may...
Page 15
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Required system Network Audio n Broadband Internet connection [Wired LAN] A broadband line connection to the Internet is required in ...
Page 16
ENGLISH n Ethernet cable Bit Per Per n Others Format rate minute hour (CAT-5 or greater recommended) • If you have an Internet provider contract for a line on Approx. Approx. Use for wired LAN. which ...
Page 17
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Examples of GUI Screen Displays Some typical examples are described below. GUI Menu Operations Example: Browse Menu (Top Menu) With t...
Page 18
ENGLISH Cursor Position Display GUI menu map n Icon i Pod (vpage 14) Switch the selected item n Music n Video Switch to the next item Switch the selected item Selected item Network (vpage 15) n List n...
Page 19
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Wired LAN Make settings for wired LAN. Turn on the ASD-3N’s power. Setup Make detail settings for various parameters. To enter the IP...
Page 20
ENGLISH s Format d GUI time out Select the video output signal format to Set the GUI display time when not Make GUI related settings. match the monitor. operating. [Selectable items] [Selectable items...
Page 21
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin d Interval h Firmware Update Set the playback time per image.Other Update the fi rmware. Make various other settings. Normally there ...
Page 22
ENGLISH BROWSE/REMOTE • Depending on the type of i Pod and the software Playback version, some functions may not operate. • DENON will accept no responsibility whatsoever for 8, 1/3, any loss of i Pod...
Page 23
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Playing repeatedly n Remote mode Playing Network Audio Press REPEAT to switch the repeat mode. This mode is for operating the i Pod d...
Page 24
ENGLISH n Music server Installing Windows Media Player ver. 11 This function lets you play music files and playlists If Windows XP Service Pack 2 has not yet been installed, either download it free of...
Page 25
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Stopping playback temporarily Basic Operation During playback, press ENTER or 1/3. Press again to resume playback. Make the necessary...
Page 26
ENGLISH Recently Played Internet Radio Stations Listening to Internet Radio Recently played internet radio stations can be selected Use ui to select “Internet Radio”, from “Recently Played” in menu. t...
Page 27
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Listening to Internet Radio Stations Playing Files Stored on a Computer Registered in Your Favorites Use this procedure to play music...
Page 28
ENGLISH Playing repeatedly Press REPEAT to switch the repeat mode. OFF Single track repeat • DLNA and DLNA CERTIFIED are trademarks and/or Other Information All track repeat service marks of Digital L...
Page 29
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as...
Page 30
ENGLISH GNETH Symptom Cause Countermeasure Page Internet radio cannot be • Ethernet cable is not properly connected or network is • Check the connection status. played. disconnected. • Program is bein...
Page 31
ENGLISH ettin tarted ectio etu layb ack In fo rm atio Tro lesh tin Specifications n Control Dock for i Pod Power supply: DC IN 6V Maximum external dimensions: 120 (W) x 43.8 (H) x 120 (D) mm Weight: 2...
Page 32
www.denon.com Denon·Brand·Company,·D&M·Holdings·Inc. Printed·in·China···00D·511·4728·105
