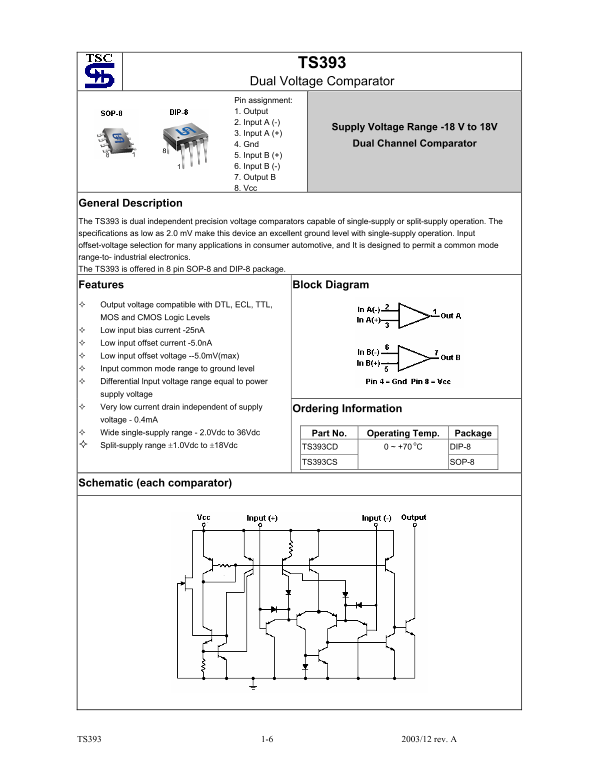

TSC TS393 Dual Voltage Comparator Data Handbook

TS393 Dual Voltage Comparator

Pin assignment: 1. Output 2. Input A (-)

Supply Voltage Range -18 V to 18V

3. Input A (+)

4. Gnd Dual Channel Comparator

5. Input B (+) 6. Input B (-) 7. Output B 8. Vcc

General Description The TS393 is dual independent precision voltage comparators capable of single-supply or split-supply operation. The specifications as low as 2.0 m V make this device an excellent ground level with single-supply operation. Input offset-voltage selection for many applications in consumer automotive, and It is designed to permit a common mode range-to- industrial electronics. The TS393 is offered in 8 pin SOP-8 and DIP-8 package.

Features Block Diagram Output voltage compatible with DTL, ECL, TTL, MOS and CMOS Logic Levels Low input bias current -25n A Low input offset current -5.0n A Low input offset voltage --5.0m V(max) Input common mode range to ground level Differential lnput voltage range equal to power supply voltage Very low current drain independent of supply Ordering Information voltage - 0.4m A Wide single-supply range - 2.0Vdc to 36Vdc Part No. Operating Temp. Package Split-supply range ±1.0Vdc to ±18Vdc TS393CD DIP-8 0 ~ +70 o C

TS393CS SOP-8

Schematic (each comparator)

TS393 1-6 2003/12 rev. A
