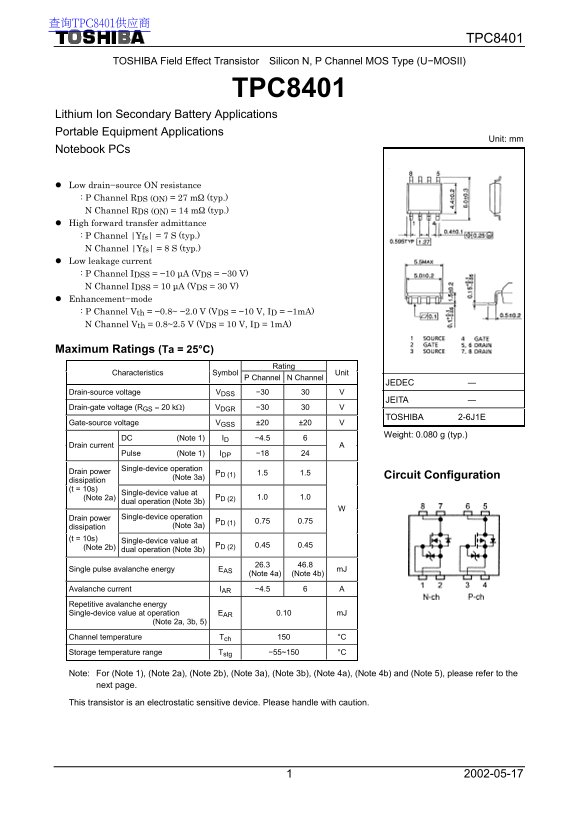

TPC8401
TOSHIBA Field Effect Transistor Silicon N, P Channel MOS Type (U−MOSII)
TPC8401
Lithium Ion Secondary Battery Applications Portable Equipment Applications
Unit: mm
Notebook PCs
Low drain−source ON resistance : P Channel RDS (ON) = 27 mΩ (typ.) N Channel RDS (ON) = 14 mΩ (typ.) High forward transfer admittance : P Channel |Yfs| = 7 S (typ.) N Channel |Yfs| = 8 S (typ.) Low leakage current : P Channel IDSS = −10 µA (VDS = −30 V) N Channel IDSS = 10 µA (VDS = 30 V) Enhancement−mode : P Channel Vth = −0.8~ −2.0 V (VDS = −10 V, ID = −1m A) N Channel Vth = 0.8~2.5 V (VDS = 10 V, ID = 1m A)
Maximum Ratings (Ta = 25°C)
Rating
Characteristics Symbol P Channel N Channel Unit
JEDEC ―
Drain-source voltage VDSS −30 30 V
JEITA ―
Drain-gate voltage (RGS = 20 kΩ) VDGR −30 30 V
TOSHIBA 2-6J1E
Gate-source voltage VGSS ±20 ±20 V
Weight: 0.080 g (typ.)
DC (Note 1) ID −4.5 6
Drain current
Pulse (Note 1) IDP −18 24 Single-device operation
(Note 3a) PD (1) 1.5 1.5 Drain power Circuit Configuration
dissipation (t = 10s) (Note 2a) Single-device value at
dual operation (Note 3b) PD (2) 1.0 1.0 Single-device operation dissipation (Note 3a) PD (1) 0.75 0.75 Drain power
Single-device value at
(Note 2b)
dual operation (Note 3b) PD (2) 0.45 0.45
Single pulse avalanche energy EAS 26.3
(Note 4a) (Note 4b) m J
Avalanche current IAR −4.5 6 A Repetitive avalanche energy Single-device value at operation EAR 0.10 m J (Note 2a, 3b, 5) Channel temperature Tch 150 °C Storage temperature range Tstg −55~150 °C
Note: For (Note 1), (Note 2a), (Note 2b), (Note 3a), (Note 3b), (Note 4a), (Note 4b) and (Note 5), please refer to the next page.
This transistor is an electrostatic sensitive device. Please handle with caution.
