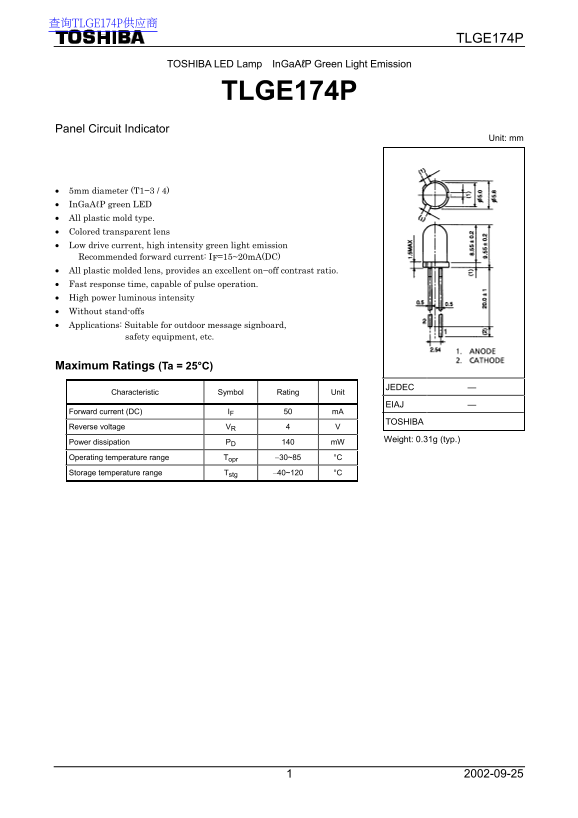

TLGE174P
TOSHIBA LED Lamp In Ga AℓP Green Light Emission
TLGE174P
Panel Circuit Indicator
Unit: mm
5mm diameter (T1−3 / 4) In Ga AℓP green LED All plastic mold type. Colored transparent lens Low drive current, high intensity green light emission Recommended forward current: IF=15~20m A(DC) All plastic molded lens, provides an excellent on−off contrast ratio. Fast response time, capable of pulse operation. High power luminous intensity Without stand-offs Applications: Suitable for outdoor message signboard, safety equipment, etc.
Maximum Ratings (Ta = 25°C)
JEDEC ―
Characteristic Symbol Rating Unit
EIAJ ―
Forward current (DC) IF 50 m A
TOSHIBA
Reverse voltage VR 4 V
Weight: 0.31g (typ.)
Power dissipation PD 140 m W Operating temperature range Topr 30~85 °C Storage temperature range Tstg 40~120 °C
