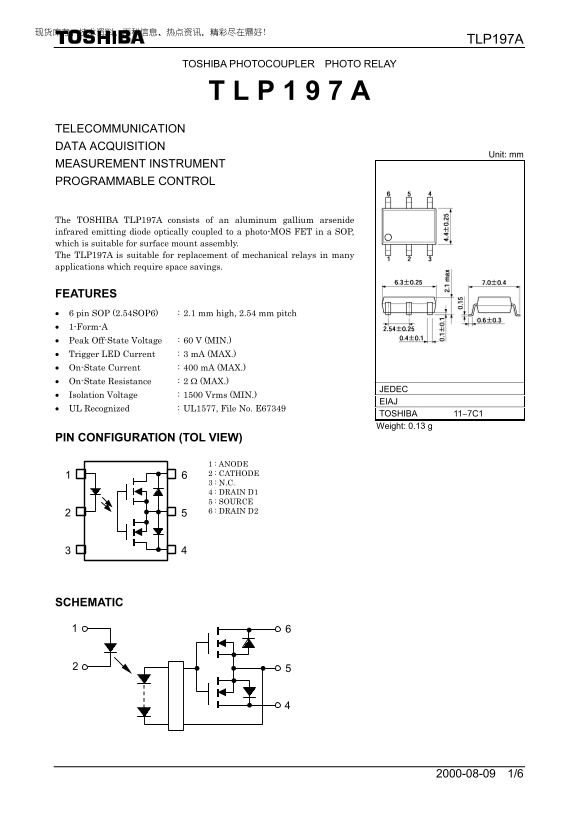

TLP197A
TOSHIBA PHOTOCOUPLER PHOTO RELAY
TELECOMMUNICATION DATA ACQUISITION
Unit: mm
MEASUREMENT INSTRUMENT PROGRAMMABLE CONTROL
The TOSHIBA TLP197A consists of an aluminum gallium arsenide infrared emitting diode optically coupled to a photo-MOS FET in a SOP, which is suitable for surface mount assembly. The TLP197A is suitable for replacement of mechanical relays in many applications which require space savings.
FEATURES 6 pin SOP (2.54SOP6) : 2.1 mm high, 2.54 mm pitch 1-Form-A Peak Off-State Voltage : 60 V (MIN.) Trigger LED Current : 3 m A (MAX.) On-State Current : 400 m A (MAX.) On-State Resistance : 2 (MAX.)
JEDEC
Isolation Voltage : 1500 Vrms (MIN.)
UL Recognized : UL1577, File No. E67349
TOSHIBA 117C1 Weight: 0.13 g
PIN CONFIGURATION (TOL VIEW)
1 : ANODE 2 : CATHODE 3 : N.C. 4 : DRAIN D1 5 : SOURCE 6 : DRAIN D2
SCHEMATIC
