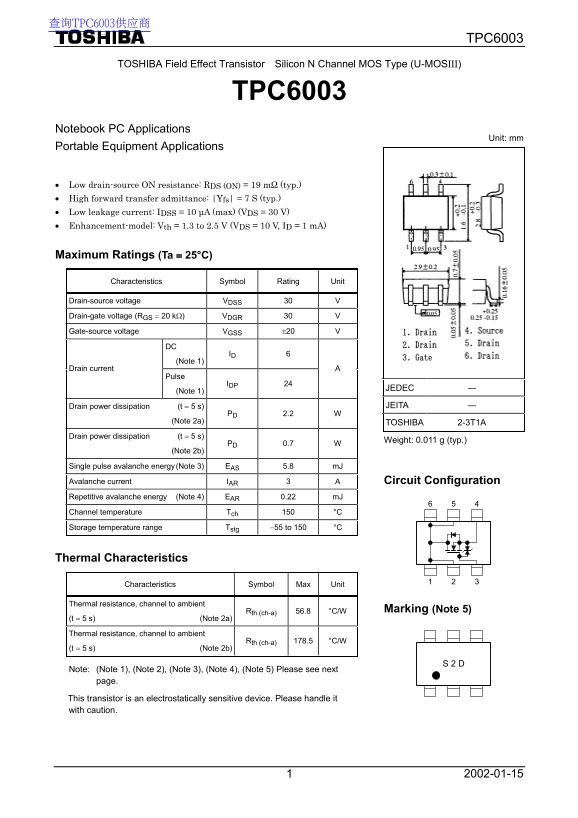

Page 1 Text Content
查询TPC6003供应商
TPC6003
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (U-MOSIII)
TPC6003
Notebook PC Applications
Unit: mm
Portable Equipment Applications
Low drain-source ON resistance: RDS (ON) = 19 mΩ (typ.) High forward transfer admittance: |Yfs| = 7 S (typ.) Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) Enhancement-model: Vth = 1.3 to 2.5 V (VDS = 10 V, ID = 1 m A)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS 30 V Drain-gate voltage (RGS 20 k) VDGR 30 V Gate-source voltage VGSS 20 V
(Note 1)
Drain current
Pulse
IDP 24
JEDEC ―
(Note 1)
Drain power dissipation (t 5 s) JEITA ―
PD 2.2 W
(Note 2a) TOSHIBA 2-3T1A
Drain power dissipation (t 5 s)
Weight: 0.011 g (typ.)
PD 0.7 W
(Note 2b)
Single pulse avalanche energy (Note 3) EAS 5.8 m J Avalanche current IAR 3 A Circuit Configuration Repetitive avalanche energy (Note 4) EAR 0.22 m J
Channel temperature Tch 150 °C Storage temperature range Tstg 55 to 150 °C
Thermal Characteristics
Characteristics Symbol Max Unit
Thermal resistance, channel to ambient
Rth (ch-a) 56.8 °C/W Marking (Note 5)
(t 5 s) (Note 2a) Thermal resistance, channel to ambient
Rth (ch-a) 178.5 °C/W
(t 5 s) (Note 2b)
Note: (Note 1), (Note 2), (Note 3), (Note 4), (Note 5) Please see next page.
This transistor is an electrostatically sensitive device. Please handle it with caution.
