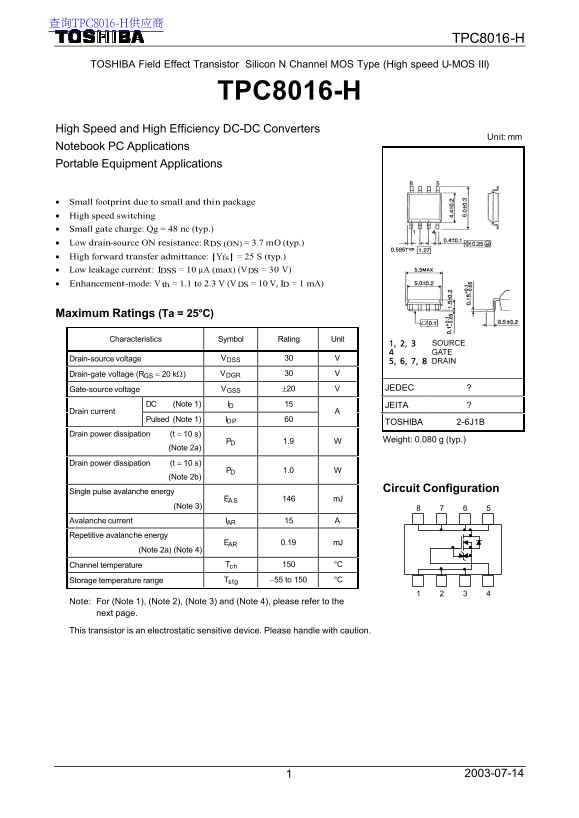

TPC8016-H
TOSHIBA Field Effect Transistor Silicon N Channel MOS Type (High speed U-MOS III)
TPC8016-H
High Speed and High Efficiency DC-DC Converters
Unit: mm
Notebook PC Applications Portable Equipment Applications
• Small footprint due to small and thin package • High speed switching • Small gate charge: Qg = 48 nc (typ.) • Low drain-source ON resistance: RDS (ON) = 3.7 m O (typ.) • High forward transfer admittance: |Yfs| = 25 S (typ.) • Low leakage current: IDSS = 10 µA (max) (VDS = 30 V) • Enhancement-mode: V th = 1.1 to 2.3 V (V DS = 10 V, ID = 1 m A)
Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Drain-source voltage VDSS 30 V
Drain-gate voltage (RGS = 20 kΩ) VDGR 30 V
Gate-source voltage VGSS ±20 V JEDEC ?
DC (Note 1) ID 15 JEITA ?
Drain current
Pulsed (Note 1) IDP 60
TOSHIBA 2-6J1B
Drain power dissipation (t = 10 s)
PD 1.9 W Weight: 0.080 g (typ.)
(Note 2a) Drain power dissipation (t = 10 s)
PD 1.0 W
(Note 2b)
Circuit Configuration
Single pulse avalanche energy
EAS 146 m J
(Note 3)
Avalanche current IAR 15 A Repetitive avalanche energy
EAR 0.19 m J
(Note 2a) (Note 4)
Channel temperature Tch 150 °C Storage temperature range Tstg −55 to 150 °C
Note: For (Note 1), (Note 2), (Note 3) and (Note 4), please refer to the next page.
This transistor is an electrostatic sensitive device. Please handle with caution.
