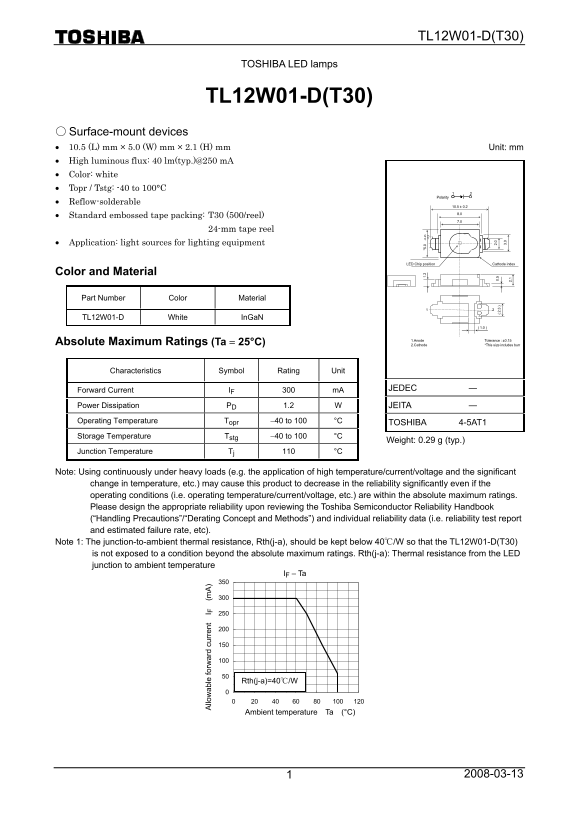

TL12W01-D(T30)
TOSHIBA LED lamps
TL12W01-D(T30)
○ Surface-mount devices • 10.5 (L) mm × 5.0 (W) mm × 2.1 (H) mm Unit: mm • High luminous flux: 40 lm(typ.)@250 m A • Color: white • Topr / Tstg: -40 to 100°C
Polarity
• Reflow-solderable
llo ab le fo rw ar cu rr en
• Standard embossed tape packing: T30 (500/reel)
24-mm tape reel
• Application: light sources for lighting equipment
LED Chip position Cathode index
Color and Material
Part Number Color Material
TL12W01-D White In Ga N
1.Anode Tolerance : ±0.15
Absolute Maximum Ratings (Ta = 25°C) 2.Cathode *This size includes burr
Characteristics Symbol Rating Unit
Forward Current IF 300 m A JEDEC ―
Power Dissipation PD 1.2 W JEITA ― Operating Temperature Topr −40 to 100 °C TOSHIBA 4-5AT1
Storage Temperature Tstg −40 to 100 °C
Weight: 0.29 g (typ.)
Junction Temperature Tj 110 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant
change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the
operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings. 0. 2.
Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook 2. 11.
(“Handling Precautions”/“Derating Concept and Methods”) and individual reliability data (i.e. reliability test report and estimated failure rate, etc).
Note 1: The junction-to-ambient thermal resistance, Rth(j-a), should be kept below 40℃/W so that the TL12W01-D(T30)
is not exposed to a condition beyond the absolute maximum ratings. Rth(j-a): Thermal resistance from the LED junction to ambient temperature
IF – Ta
Rth(j-a)=40℃/W
Ambient temperature Ta (°C)
