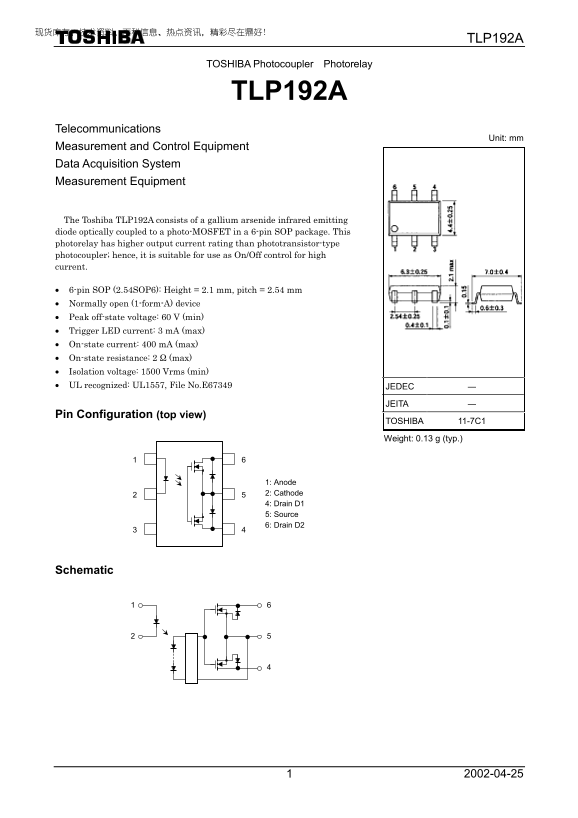

Page 1 Text Content
TLP192A
TOSHIBA Photocoupler Photorelay
TLP192A
Telecommunications
Unit: mm
Measurement and Control Equipment Data Acquisition System Measurement Equipment
The Toshiba TLP192A consists of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a 6-pin SOP package. This photorelay has higher output current rating than phototransistor-type photocoupler; hence, it is suitable for use as On/Off control for high current.
6-pin SOP (2.54SOP6): Height = 2.1 mm, pitch = 2.54 mm Normally open (1-form-A) device Peak off-state voltage: 60 V (min) Trigger LED current: 3 m A (max) On-state current: 400 m A (max) On-state resistance: 2 Ω (max) Isolation voltage: 1500 Vrms (min) UL recognized: UL1557, File No.E67349 JEDEC ―
JEITA ―
Pin Configuration (top view)
TOSHIBA 11-7C1 Weight: 0.13 g (typ.)
1: Anode 2: Cathode 4: Drain D1 5: Source 6: Drain D2
Schematic
