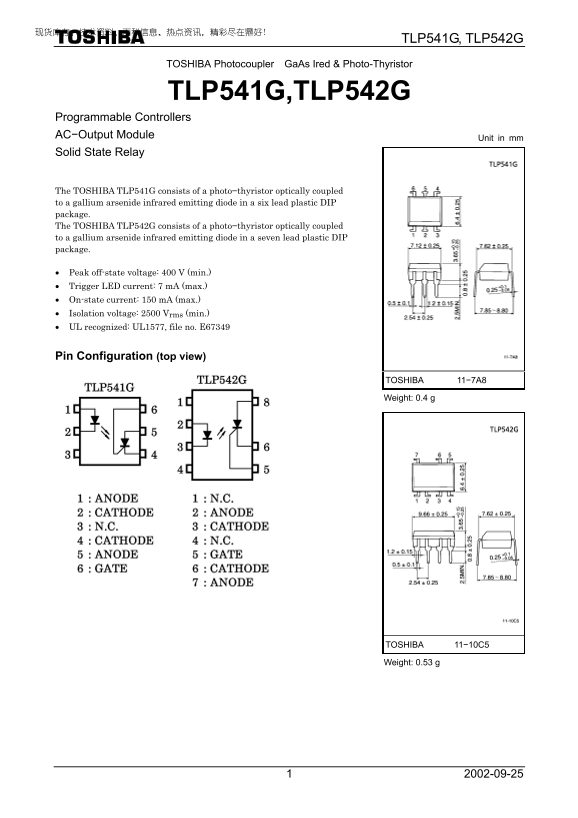

Page 1 Text Content
TLP541G, TLP542G
TOSHIBA Photocoupler Ga As Ired & Photo-Thyristor
TLP541G,TLP542G
Programmable Controllers AC−Output Module
Unit in mm
Solid State Relay
The TOSHIBA TLP541G consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a six lead plastic DIP package. The TOSHIBA TLP542G consists of a photo−thyristor optically coupled to a gallium arsenide infrared emitting diode in a seven lead plastic DIP package.
• Peak off-state voltage: 400 V (min.) • Trigger LED current: 7 m A (max.) • On-state current: 150 m A (max.) • Isolation voltage: 2500 Vrms (min.) • UL recognized: UL1577, file no. E67349
Pin Configuration (top view)
TOSHIBA 11−7A8
Weight: 0.4 g
TOSHIBA 11−10C5
Weight: 0.53 g
Page Summary Contents For Toshiba TLP541G TLP542G User manuals (1)(1)
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 765.80 KB |
| Published | May 31, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum AC isolation voltage rating?
The minimum AC isolation voltage is 2500 V rms at 1 minute.
Are these devices suitable for safety-critical systems?
No; they are not warranted for highly reliable or safety-critical uses (e.g., medical, aircraft).
What is the recommended operating supply voltage?
The typical supply voltage recommended for operation is 120 V AC ac.
