The Toshiba TLP192G is a specialized photorelay/photocoupler designed for critical signaling applications requiring high isolation. Built with Gallium Arsenide technology, it offers reliable performance up to 1500 Vrms isolation voltage in a compact 6-pin SOP package. This manual provides comprehensive technical specifications, detailed wiring diagrams, and operating guidelines necessary for engineers implementing the TLP192G into modem systems, PBX units, or PCMCIA card modems. It is ideal for general electronics professionals developing complex communication and measurement equipment.

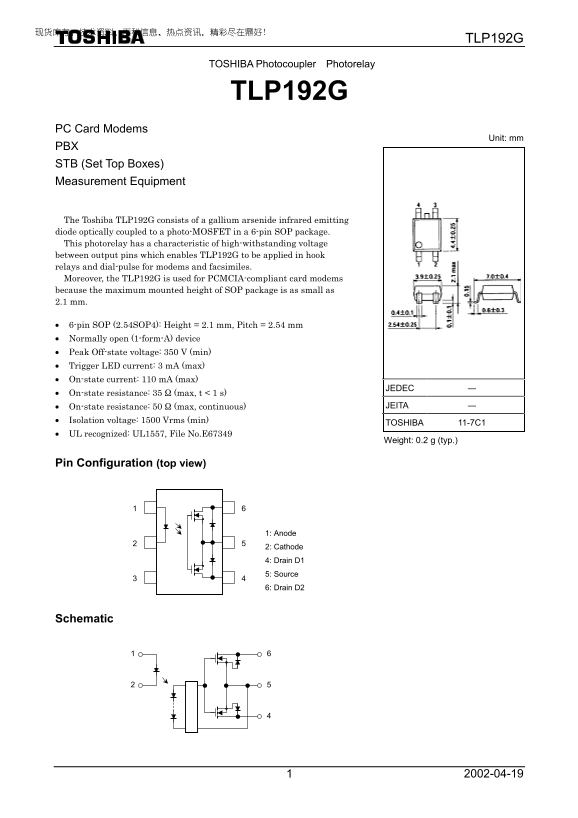

Page 1 Text Content
TLP192G
TOSHIBA Photocoupler Photorelay
TLP192G
PC Card Modems
Unit: mm
PBX STB (Set Top Boxes) Measurement Equipment
The Toshiba TLP192G consists of a gallium arsenide infrared emitting diode optically coupled to a photo-MOSFET in a 6-pin SOP package. This photorelay has a characteristic of high-withstanding voltage between output pins which enables TLP192G to be applied in hook relays and dial-pulse for modems and facsimiles. Moreover, the TLP192G is used for PCMCIA-compliant card modems because the maximum mounted height of SOP package is as small as 2.1 mm.
6-pin SOP (2.54SOP4): Height = 2.1 mm, Pitch = 2.54 mm Normally open (1-form-A) device Peak Off-state voltage: 350 V (min) Trigger LED current: 3 m A (max) On-state current: 110 m A (max)
JEDEC ―
On-state resistance: 35 Ω (max, t < 1 s)
On-state resistance: 50 Ω (max, continuous) JEITA ―
Isolation voltage: 1500 Vrms (min)
TOSHIBA 11-7C1
UL recognized: UL1557, File No.E67349
Weight: 0.2 g (typ.)
Pin Configuration (top view)
1: Anode 2: Cathode 4: Drain D1 5: Source
6: Drain D2
Schematic
Page Summary Contents For Toshiba TLP192G User Guide
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 6 |
| File Size | 147.24 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the minimum DC isolation voltage provided by the TLP192G?
The isolation voltage is a rated 1500 Vrms minimum, suitable for use in various relay applications.
What is the maximum allowable forward current derating when operating at elevated temperatures?
Below an ambient temperature of 25°C, the Forward current derating rate is specified as 0.5 mA/°C.
Does this photorelay support integration into standard PC cards?
Yes, it supports use with PCMCIA-compliant card modems due to its small SOP package height of only 2.1 mm.
What safety precautions must be followed when handling the components?
Because Gallium arsenide (GaAs) is used, treat dust and fumes as toxic. Do not cut or pulverize the products; follow appropriate disposal regulations.
