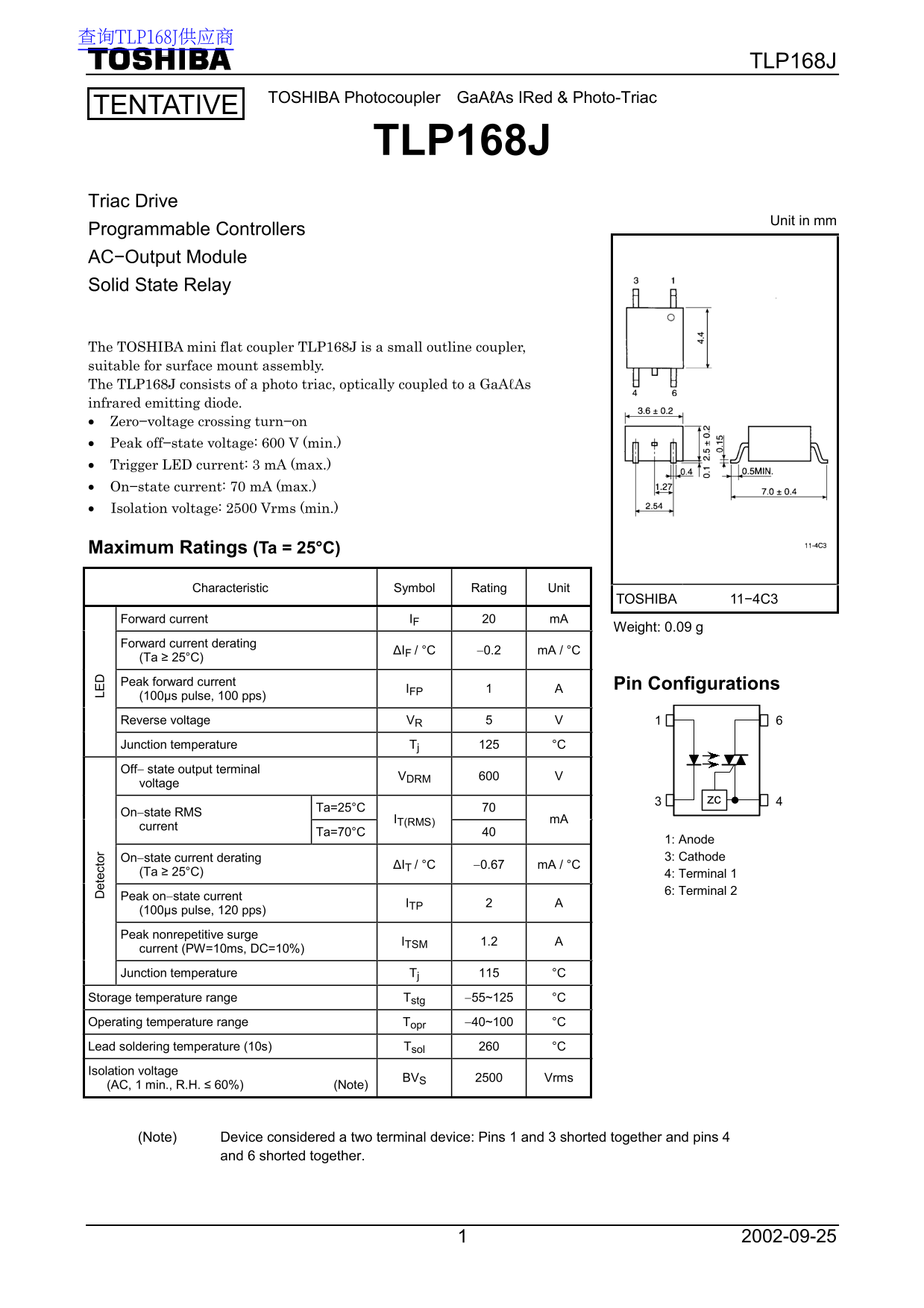

TLP168J
TOSHIBA Photocoupler Ga AℓAs IRed & Photo-Triac et ec to LE TENTATIVE
TLP168J
Triac Drive
Unit in mm
Programmable Controllers AC−Output Module Solid State Relay
The TOSHIBA mini flat coupler TLP168J is a small outline coupler, suitable for surface mount assembly. The TLP168J consists of a photo triac, optically coupled to a Ga AℓAs infrared emitting diode. Zero−voltage crossing turn−on Peak off−state voltage: 600 V (min.) Trigger LED current: 3 m A (max.) On−state current: 70 m A (max.) Isolation voltage: 2500 Vrms (min.)
Maximum Ratings (Ta = 25°C)
Characteristic Symbol Rating Unit
TOSHIBA 11−4C3
Forward current IF 20 m A
Weight: 0.09 g
Forward current derating (Ta ≥ 25°C) ∆IF / °C 0.2 m A / °C Peak forward current Pin Configurations (100µs pulse, 100 pps) IFP 1 A Reverse voltage VR 5 V Junction temperature Tj 125 °C Off state output terminal voltage VDRM 600 V
Ta=25°C 70 Onstate RMS
IT(RMS) m A
current Ta=70°C
1: Anode Onstate current derating 3: Cathode
(Ta ≥ 25°C) ∆IT / °C 0.67 m A / °C 4: Terminal 1
6: Terminal 2
Peak onstate current (100µs pulse, 120 pps) ITP 2 A Peak nonrepetitive surge current (PW=10ms, DC=10%) ITSM 1.2 A Junction temperature Tj 115 °C Storage temperature range Tstg 55~125 °C Operating temperature range Topr 40~100 °C Lead soldering temperature (10s) Tsol 260 °C Isolation voltage (AC, 1 min., R.H. ≤ 60%) (Note) BVS 2500 Vrms
(Note) Device considered a two terminal device: Pins 1 and 3 shorted together and pins 4 and 6 shorted together.
