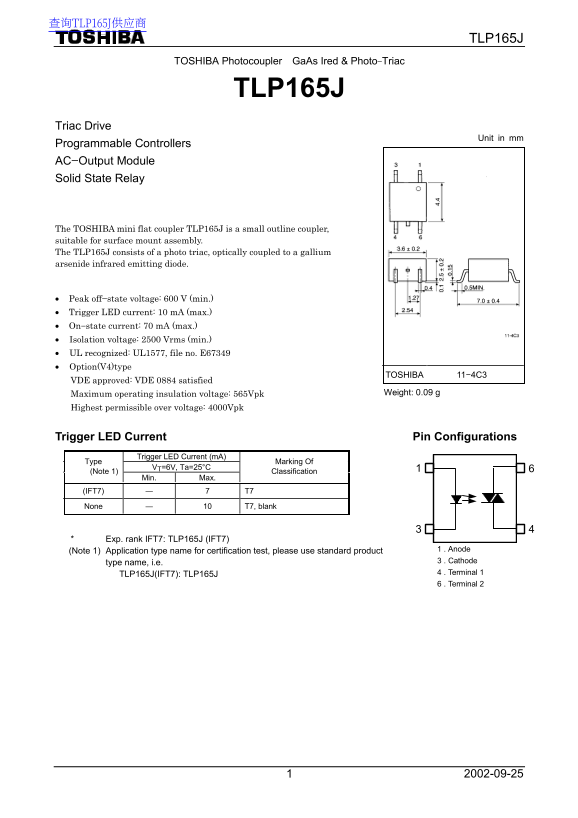

TLP165J
TOSHIBA Photocoupler Ga As Ired & Photo−Triac
TLP165J
Triac Drive
Unit in mm
Programmable Controllers AC−Output Module Solid State Relay
The TOSHIBA mini flat coupler TLP165J is a small outline coupler, suitable for surface mount assembly. The TLP165J consists of a photo triac, optically coupled to a gallium arsenide infrared emitting diode.
Peak off−state voltage: 600 V (min.) Trigger LED current: 10 m A (max.) On−state current: 70 m A (max.) Isolation voltage: 2500 Vrms (min.) UL recognized: UL1577, file no. E67349 Option(V4)type
TOSHIBA 11−4C3
VDE approved: VDE 0884 satisfied
Maximum operating insulation voltage: 565Vpk Weight: 0.09 g
Highest permissible over voltage: 4000Vpk
Trigger LED Current Pin Configurations
Trigger LED Current (m A)
Type Marking Of
VT=6V, Ta=25°C
(Note 1) Classification
Min. Max.
(IFT7) ― 7 T7 None ― 10 T7, blank
* Exp. rank IFT7: TLP165J (IFT7)
(Note 1) Application type name for certification test, please use standard product 1 . Anode type name, i.e. 3 . Cathode TLP165J(IFT7): TLP165J 4 . Terminal 1 6 . Terminal 2
