The TLP1037A is a high-withstanding-voltage photo-interrupter combining an infrared LED and sensitive Photo IC with a digital output. Engineered for reliability and low power consumption (3.3V to 12V operating range), it features a deep-slot package direct-mount design, making it ideal for precise position detection. This manual provides detailed specifications, electrical characteristics, optimal operating conditions, guidelines for integration, and usage precautions for professional applications in industrial robotics, office equipment (printers, copiers), domestic appliances, ATMs, and other high-accuracy sensing systems.

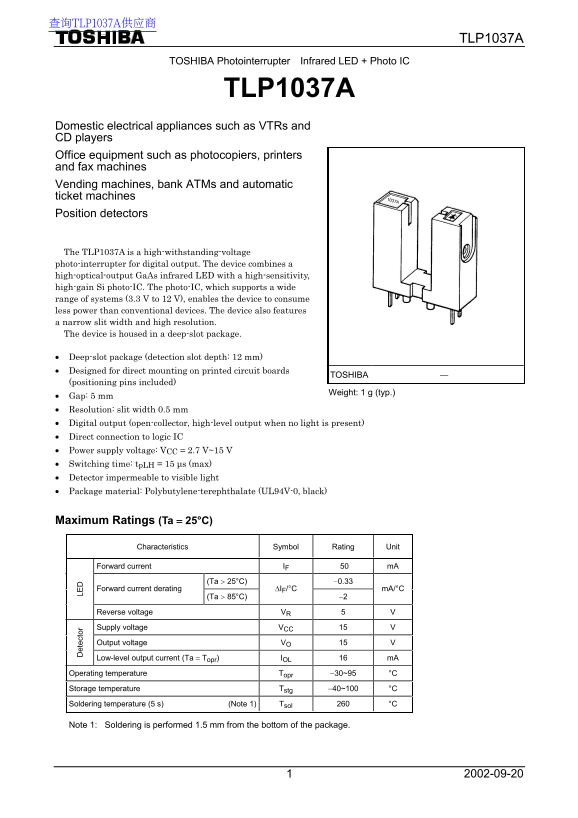

Page 1 Text Content
查询TLP1037A供应商
TLP1037A
TOSHIBA Photointerrupter Infrared LED + Photo IC
et ec to LE
TLP1037A
Domestic electrical appliances such as VTRs and CD players Office equipment such as photocopiers, printers and fax machines Vending machines, bank ATMs and automatic ticket machines Position detectors
The TLP1037A is a high-withstanding-voltage photo-interrupter for digital output. The device combines a high-optical-output Ga As infrared LED with a high-sensitivity, high-gain Si photo-IC. The photo-IC, which supports a wide range of systems (3.3 V to 12 V), enables the device to consume less power than conventional devices. The device also features a narrow slit width and high resolution. The device is housed in a deep-slot package.
Deep-slot package (detection slot depth: 12 mm) Designed for direct mounting on printed circuit boards
TOSHIBA
(positioning pins included)
Weight: 1 g (typ.)
Gap: 5 mm Resolution: slit width 0.5 mm Digital output (open-collector, high-level output when no light is present) Direct connection to logic IC Power supply voltage: VCC = 2.7 V~15 V Switching time: tp LH = 15 µs (max) Detector impermeable to visible light Package material: Polybutylene-terephthalate (UL94V-0, black)
Maximum Ratings (Ta 25°C)
Characteristics Symbol Rating Unit
Forward current IF 50 m A
(Ta 25°C) 0.33
Forward current derating IF/°C m A/°C
(Ta 85°C)
Reverse voltage VR 5 Supply voltage VCC 15 V Output voltage VO 15 V Low-level output current (Ta Topr) IOL 16 m A Operating temperature Topr 30~95 °C Storage temperature Tstg 40~100 °C Soldering temperature (5 s) (Note 1) Tsol 260 °C
Note 1: Soldering is performed 1.5 mm from the bottom of the package.
Page Summary Contents For Toshiba TLP1037A User Guide
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 7 |
| File Size | 150.36 KB |
| Published | June 05, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What power supply voltage range does the sensor support?
The device supports a wide operating voltage range between 2.7 V to 15 V CC.
Can this detector be used in low-power systems?
Yes, its design allows it to consume less power than conventional devices and the photo-IC supports 3.3 V to 12 V systems.
What precautions should I take when soldering or cleaning the package?
Only clean the soldered lead parts; do not immerse the entire package in the cleaning solvent, as residue can damage optical performance.
Is there a delay before the output signal stabilizes after power-on?
Yes, the output fluctuates for 100 µs after power-on while the internal circuit is stabilizing.
