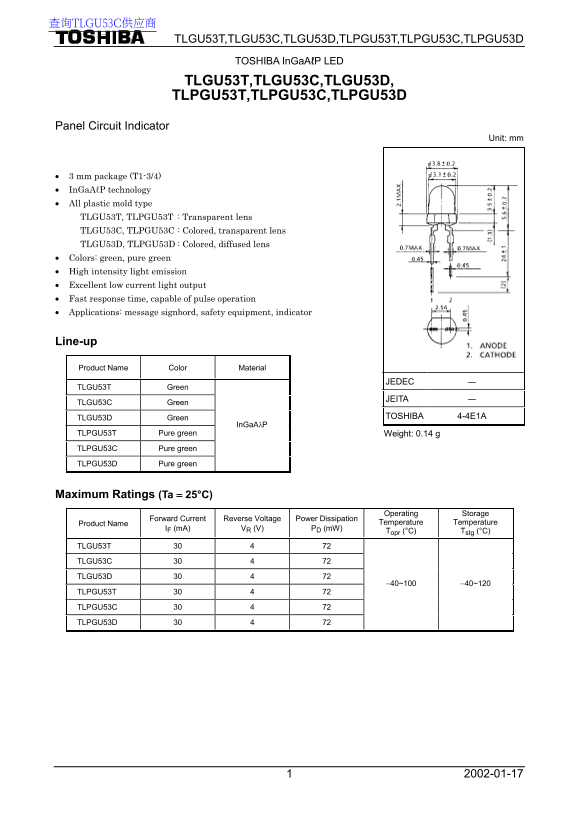

TLGU53T,TLGU53C,TLGU53D,TLPGU53T,TLPGU53C,TLPGU53D
TOSHIBA In Ga AℓP LED
TLGU53T,TLGU53C,TLGU53D, TLPGU53T,TLPGU53C,TLPGU53D
Panel Circuit Indicator
Unit: mm
3 mm package (T1-3/4) In Ga AℓP technology All plastic mold type TLGU53T, TLPGU53T : Transparent lens TLGU53C, TLPGU53C : Colored, transparent lens TLGU53D, TLPGU53D : Colored, diffused lens Colors: green, pure green High intensity light emission Excellent low current light output Fast response time, capable of pulse operation Applications: message signbord, safety equipment, indicator
Line-up
Product Name Color Material
JEDEC ―
TLGU53T Green
JEITA ―
TLGU53C Green
TLGU53D Green TOSHIBA 4-4E1A
PIn Ga A
TLPGU53T Pure green Weight: 0.14 g TLPGU53C Pure green TLPGU53D Pure green
Maximum Ratings (Ta 25°C)
Operating Storage
Reverse Voltage Power Dissipation
Product Name Forward Current Temperature Temperature
IF (m A) VR (V) PD (m W)
Topr (°C) Tstg (°C)
TLGU53T 30 4 72 TLGU53C 30 4 72 TLGU53D 30 4 72
TLPGU53T 30 4 72 TLPGU53C 30 4 72 TLPGU53D 30 4 72
