This is a detailed component manual for the Toshiba TC7WZ74FU/FK digital integrated circuit, a high-speed D-Type Flip Flop designed for reliable data storage in logic circuits. Engineered with exceptional performance, it features wide operating voltage compliance (1.65V to 5.5V) and robust output capabilities necessary for modern embedded systems. The accompanying manual provides comprehensive technical specifications, including complete electrical characteristics, AC timing parameters, absolute maximum ratings, and operational guidelines essential for engineers designing complex digital subsystems into their hardware applications.

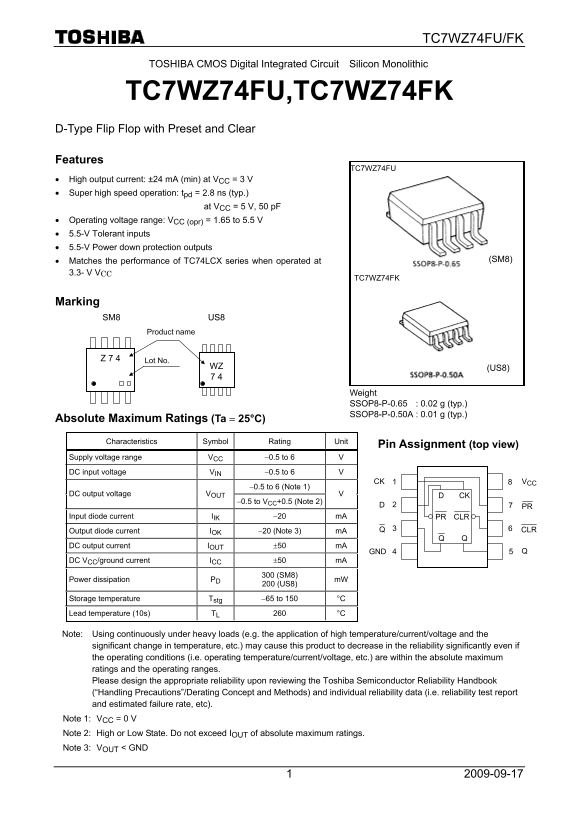

Page 1 Text Content
TC7WZ74FU/FK
TOSHIBA CMOS Digital Integrated Circuit Silicon Monolithic
TC7WZ74FU,TC7WZ74FK D-Type Flip Flop with Preset and Clear Features
TC7WZ74FU
• High output current: ±24 m A (min) at VCC = 3 V • Super high speed operation: tpd = 2.8 ns (typ.)
at VCC = 5 V, 50 p F
• Operating voltage range: VCC (opr) = 1.65 to 5.5 V • 5.5-V Tolerant inputs • 5.5-V Power down protection outputs
• Matches the performance of TC74LCX series when operated at (SM8)
3.3- V VCC
TC7WZ74FK
Marking
SM8 US8
Product name
Z 7 4 Lot No.
WZ (US8) 7 4
Weight SSOP8-P-0.65 : 0.02 g (typ.) SSOP8-P-0.50A : 0.01 g (typ.)
Absolute Maximum Ratings (Ta = 25°C)
Characteristics Symbol Rating Unit
Pin Assignment (top view)
Supply voltage range VCC −0.5 to 6 V
DC input voltage VIN −0.5 to 6 V
CK VCC
−0.5 to 6 (Note 1)
DC output voltage VOUT CK
−0.5 to VCC+0.5 (Note 2)
Input diode current IIK −20 m A CLRPR
Output diode current IOK −20 (Note 3) m A CLR
DC output current IOUT ±50 m A
DC VCC/ground current ICC ±50 m A
Power dissipation PD 300 (SM8)
200 (US8) m W
Storage temperature Tstg −65 to 150 °C
Lead temperature (10s) TL 260 °C
Note: Using continuously under heavy loads (e.g. the application of high temperature/current/voltage and the significant change in temperature, etc.) may cause this product to decrease in the reliability significantly even if the operating conditions (i.e. operating temperature/current/voltage, etc.) are within the absolute maximum ratings and the operating ranges. Please design the appropriate reliability upon reviewing the Toshiba Semiconductor Reliability Handbook (“Handling Precautions”/Derating Concept and Methods) and individual reliability data (i.e. reliability test report and estimated failure rate, etc). Note 1: VCC = 0 V Note 2: High or Low State. Do not exceed IOUT of absolute maximum ratings. Note 3: VOUT < GND
Page Summary Contents For Toshiba TC7WZ74FU, TC7WZ74FK User's Manual
Manual Details
| Brand | Toshiba |
|---|---|
| Pages | 7 |
| File Size | 182.71 KB |
| Published | June 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the specified operating voltage range?
The supply voltage (VCC) operates between 1.65 V and 5.5 V.
How fast can this flip flop operate?
It supports super high speed operation, with a typical propagation delay time t to be as low as 2.8 ns.
What are the maximum current limits for the output?
The DC output current (I_OUT) is rated up to ±50 mA when operating at Ta = 25°C.
Is this device only compatible with 3.3V or 5V systems?
No, it supports low-voltage operation and has Super high speed traits, matching TC74LCX performance when operated at 3.3 V.
