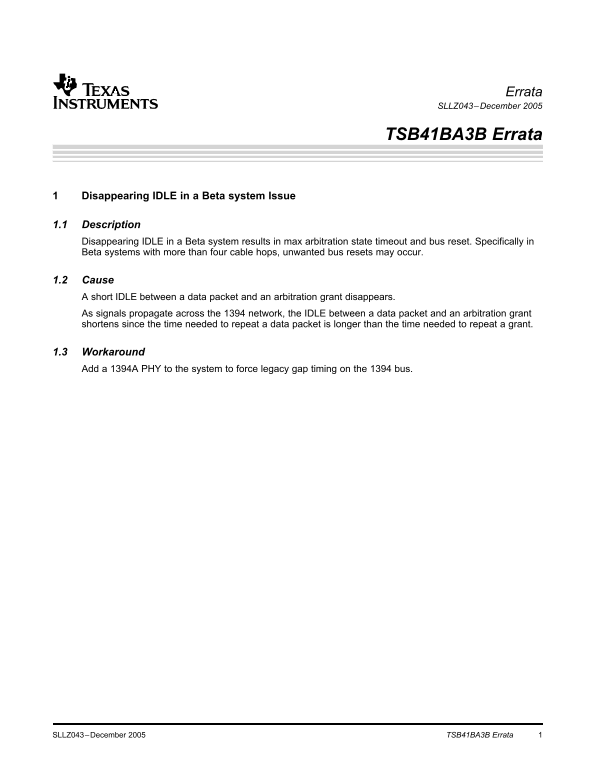

Errata
SLLZ043–December
TSB41BA3B Errata
Disappearing IDLE in Beta system Issue
1.1 Description
Disappearing IDLE in Beta system results in max arbitration state timeout and bus reset. Specifically in
Beta systems with more than four cable hops, unwanted bus resets may occur.
1.2 Cause
short IDLE between data packet and an arbitration grant disappears.
As signals propagate across the network, the IDLE between data packet and an arbitration grant
shortens since the time needed to repeat data packet is longer than the time needed to repeat grant.
1.3 Workaround
Add 1394A PHY to the system to force legacy gap timing on the bus.
SLLZ043–December TSB41BA3B Errata
