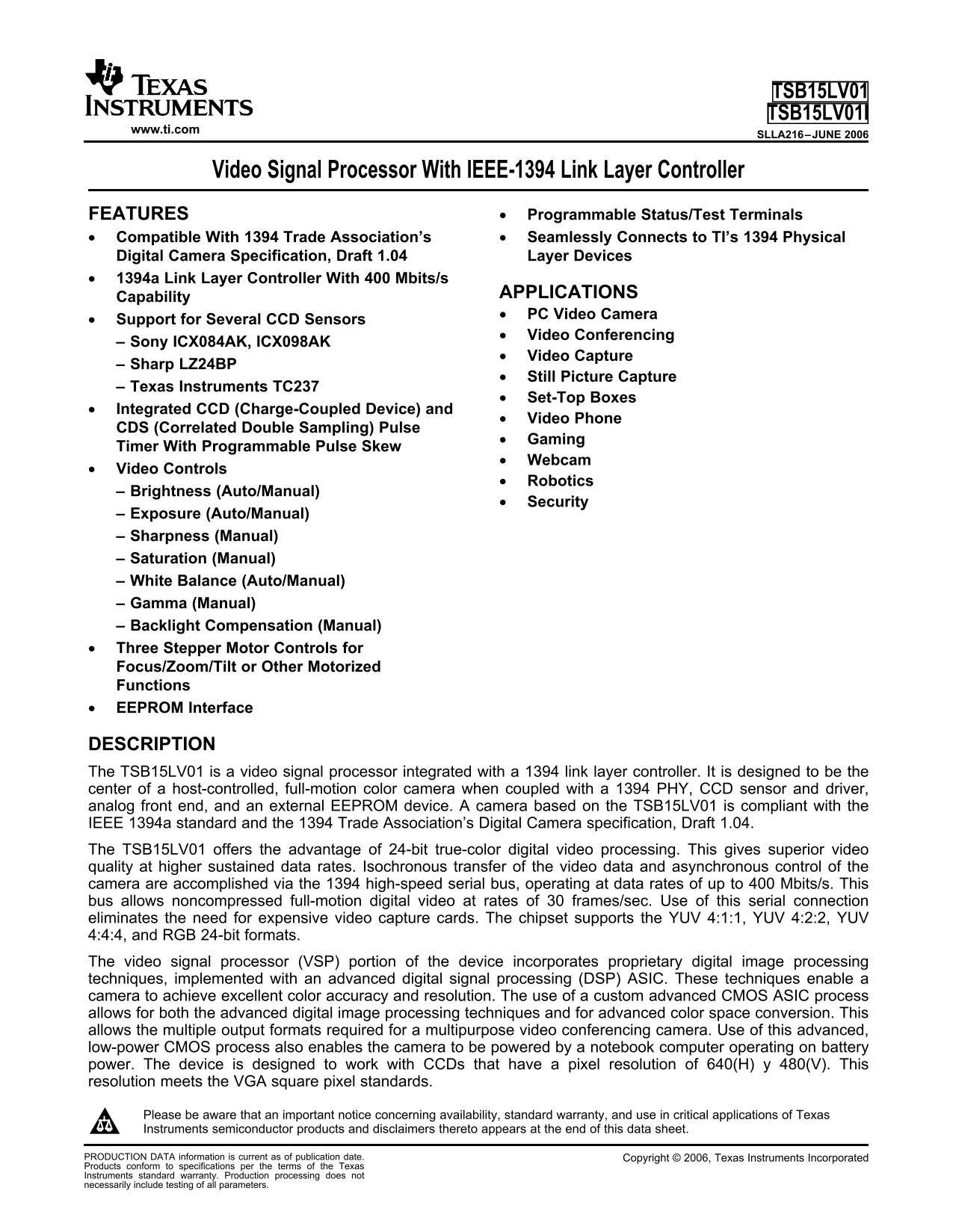

Texas Instruments TSB15LV01 TSB15LV01I Data Sheet Manual
Summary
The TSB15LV01 is a sophisticated video signal processor designed as the core component for high-performance, full-motion color cameras. Integrated with an IEEE 1394 link layer controller, it delivers superior, uncompressed digital video processing up to 400 Mbits/s, supporting multiple formats including YUV and RGB 24-bit. The manual covers its compliance standards, advanced DSP techniques, and detailed specifications for implementation in various applications. It is ideally suited for professionals developing webcams, video conferencing units, set-top boxes, or security systems requiring reliable, true-color digital capture at high data rates.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 5 |
| File Size | 74.09 KB |
| Published | July 15, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What standards does the TSB15LV01 comply with?
It complies with IEEE 1394a and the 1394 Trade Association’s Digital Camera specification, Draft 1.04.
How fast is noncompressed video data transfer?
The bus operates at up to 400 Mbits/s, allowing noncompressed full-motion digital video at rates of 30 frames/sec.
What color formats does the chipset support?
It supports YUV 4:1:1, YUV 4:2:2, YUV 4:4:4, and RGB 24-bit formats for full customization.
Is there limited bandwidth available after using this device?
The device has a maximum consumed bandwidth of 200 Mbits/s, leaving at least 200 Mbits/s available to other functions.
