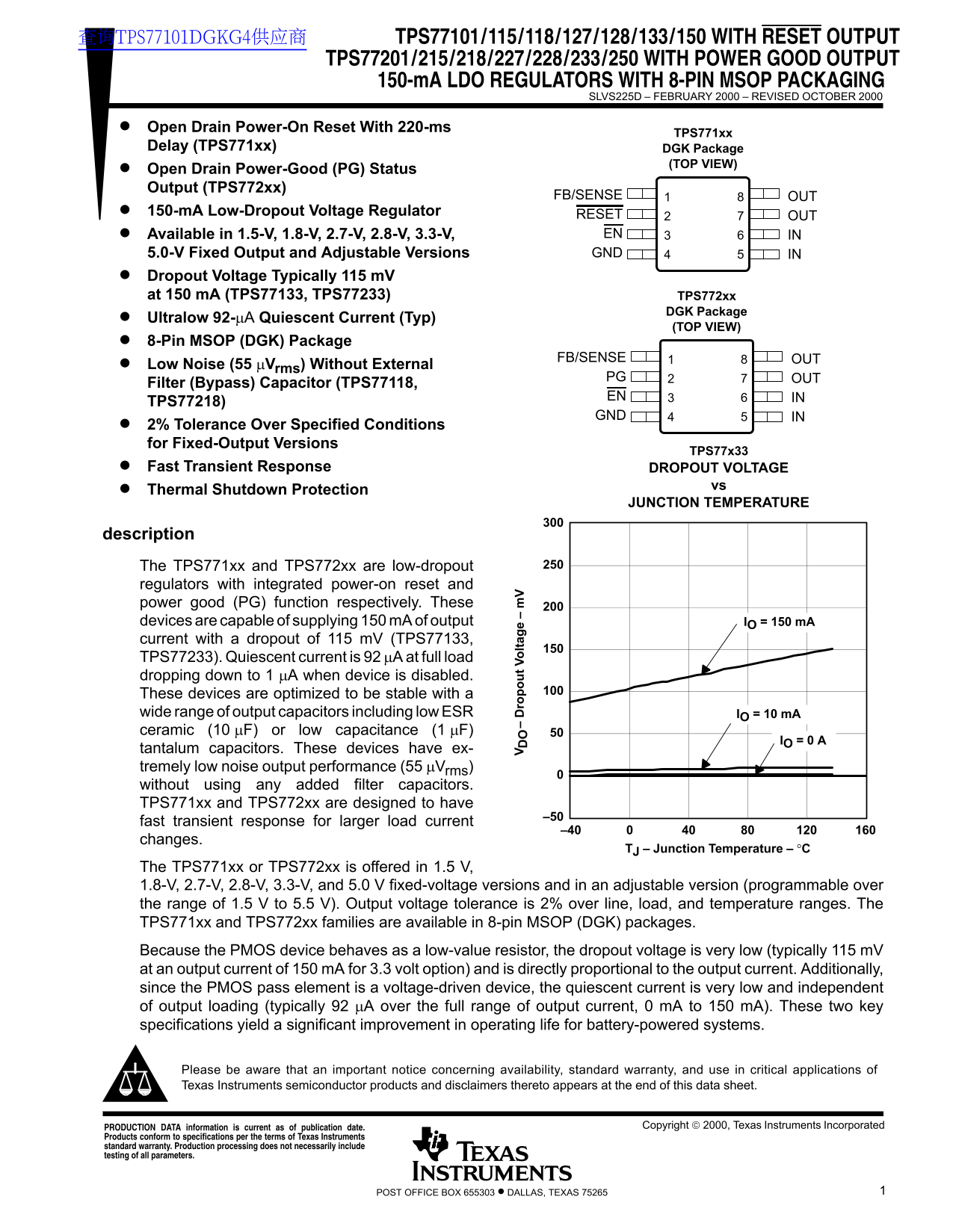

Texas Instruments TPS77101 115 118 127 128 133 150 WITH RESET OUTPUT TPS77201 215 218 227 228 233 250 WITH POWER GOOD OUTPUT

查询TPS77101DGKG4供应商 TPS77101/115/118/127/128/133/150 WITH RESET OUTPUT

TPS77201/215/218/227/228/233/250 WITH POWER GOOD OUTPUT 150-m A LDO REGULATORS WITH 8-PIN MSOP PACKAGING

SLVS225D – FEBRUARY 2000 – REVISED OCTOBER 2000

Open Drain Power-On Reset With 220-ms

TPS771xx

Delay (TPS771xx) DGK Package

(TOP VIEW)

Open Drain Power-Good (PG) Status Output (TPS772xx)

FB/SENSE OUT

150-m A Low-Dropout Voltage Regulator RESET

Available in 1.5-V, 1.8-V, 2.7-V, 2.8-V, 3.3-V, EN IN 5.0-V Fixed Output and Adjustable Versions GND IN

Dropout Voltage Typically 115 m V at 150 m A (TPS77133, TPS77233) TPS772xx

DGK Package

Ultralow 92-µA Quiescent Current (Typ)

(TOP VIEW)

8-Pin MSOP (DGK) Package

FB/SENSE OUT

Low Noise (55 µVrms) Without External

PG OUT

Filter (Bypass) Capacitor (TPS77118,

EN IN

TPS77218)

GND IN

2% Tolerance Over Specified Conditions for Fixed-Output Versions

TPS77x33

Fast Transient Response DROPOUT VOLTAGE

Thermal Shutdown Protection

JUNCTION TEMPERATURE

ro lt ag

description The TPS771xx and TPS772xx are low-dropout regulators with integrated power-on reset and power good (PG) function respectively. These devices are capable of supplying 150 m A of output IO = 150 m A current with a dropout of 115 m V (TPS77133, TPS77233). Quiescent current is 92 µA at full load dropping down to 1 µA when device is disabled. These devices are optimized to be stable with a wide range of output capacitors including low ESR IO = 10 m A ceramic (10 µF) or low capacitance (1 µF)

IO = 0 A

tantalum capacitors. These devices have ex- tremely low noise output performance (55 µVrms) without using any added filter capacitors. TPS771xx and TPS772xx are designed to have

fast transient response for larger load current

changes.

TJ – Junction Temperature – °C

The TPS771xx or TPS772xx is offered in 1.5 V, 1.8-V, 2.7-V, 2.8-V, 3.3-V, and 5.0 V fixed-voltage versions and in an adjustable version (programmable over the range of 1.5 V to 5.5 V). Output voltage tolerance is 2% over line, load, and temperature ranges. The TPS771xx and TPS772xx families are available in 8-pin MSOP (DGK) packages. Because the PMOS device behaves as a low-value resistor, the dropout voltage is very low (typically 115 m V at an output current of 150 m A for 3.3 volt option) and is directly proportional to the output current. Additionally, since the PMOS pass element is a voltage-driven device, the quiescent current is very low and independent of output loading (typically 92 µA over the full range of output current, 0 m A to 150 m A). These two key specifications yield a significant improvement in operating life for battery-powered systems.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright  2000, Texas Instruments Incorporated

Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
