Texas Instruments TPS2220A, TPS2223A TPS2224A, TPS2226A Data Sheet
Summary
Achieve sophisticated power management for PC Card interfaces using these advanced power-interface switches. Designed for system builders of notebooks, bar code scanners, digital cameras, and set-top boxes, the devices provide controlled distribution of 3.3V, 5V, and 12V across multiple card slots. The manual details features like independent VCC/VPP switching, fast current limiting, and built-in thermal protection, eliminating the need for external fuses and ensuring system reliability in diverse applications.

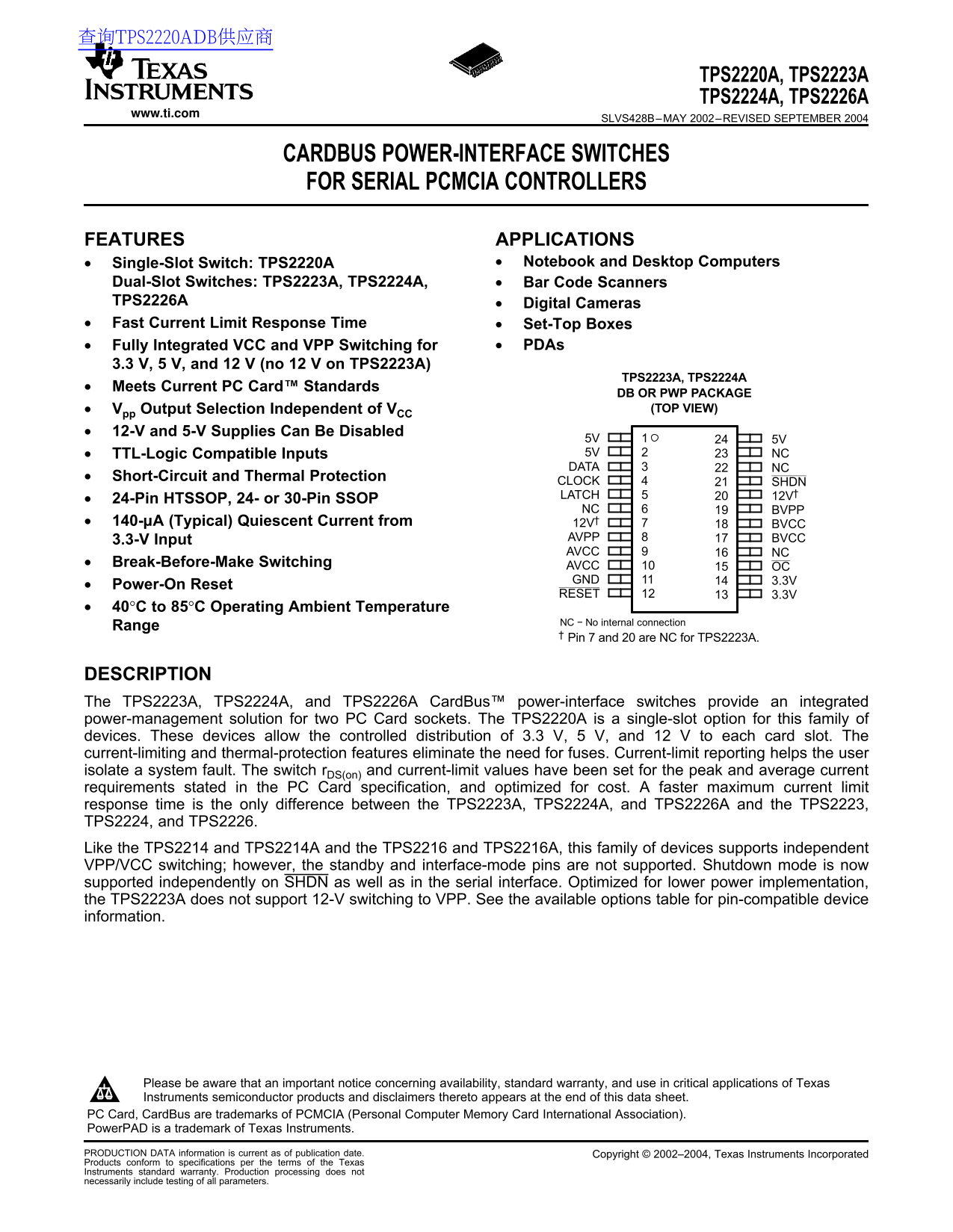

Page 1 Text Content
查询TPS2220ADB供应商
TPS2220A, TPS2223A
TPS2224A, TPS2226A
www.ti.com
SLVS428B–MAY 2002–REVISED SEPTEMBER
CARDBUS POWER-INTERFACE SWITCHES
FOR SERIAL PCMCIA CONTROLLERS
FEATURES APPLICATIONS
Single-Slot Switch: TPS2220A Notebook and Desktop Computers•
Dual-Slot Switches: TPS2223A, TPS2224A, Bar Code Scanners
TPS2226A Digital Cameras
Fast Current Limit Response Time Set-Top Boxes
Fully Integrated VCC and VPP Switching for PDAs•
3.3 V, V, and (no on TPS2223A)
TPS2223A, TPS2224A
Meets Current PC Card™ Standards
DB OR PWP PACKAGE Vpp Output Selection Independent of VCC (TOP VIEW)
12-V and 5-V Supplies Can Be Disabled
5V 5V TTL-Logic Compatible Inputs 5V NC
DATA NC
Short-Circuit and Thermal Protection
CLOCK SHDN LATCH 12V†
24-Pin HTSSOP, 24- or 30-Pin SSOP
NC BVPP
140-µA (Typical) Quiescent Current from 12V† BVCC
AVPP BVCC
3.3-V Input
AVCC NC
Break-Before-Make Switching AVCC
GND 3.3V
Power-On Reset
RESET 3.3V
40°C to 85°C Operating Ambient Temperature
NC − No internal connection
Range
Pin 7 and 20 are NC for TPS2223A.
DESCRIPTION
The TPS2223A, TPS2224A, and TPS2226A Card Bus™ power-interface switches provide an integrated
power-management solution for two PC Card sockets. The TPS2220A is single-slot option for this family of
devices. These devices allow the controlled distribution of 3.3 V, V, and to each card slot. The
current-limiting and thermal-protection features eliminate the need for fuses. Current-limit reporting helps the user
isolate system fault. The switch r DS(on) and current-limit values have been set for the peak and average current
requirements stated in the PC Card specification, and optimized for cost. faster maximum current limit
response time is the only difference between the TPS2223A, TPS2224A, and TPS2226A and the TPS2223,
TPS2224, and TPS2226.
Like the TPS2214 and TPS2214A and the TPS2216 and TPS2216A, this family of devices supports independent
VPP/VCC switching; however, the standby and interface-mode pins are not supported. Shutdown mode is now
supported independently on SHDN as well as in the serial interface. Optimized for lower power implementation,
the TPS2223A does not support 12-V switching to VPP. See the available options table for pin-compatible device
information.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas
Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PC Card, Card Bus are trademarks of PCMCIA (Personal Computer Memory Card International Association).
Power PAD is trademark of Texas Instruments.
PRODUCTION DATA information is current as of publication date. Copyright 2002–2004, Texas Instruments Incorporated
Products conform to specifications per the terms of the Texas
Instruments standard warranty. Production processing does not
necessarily include testing of all parameters.
