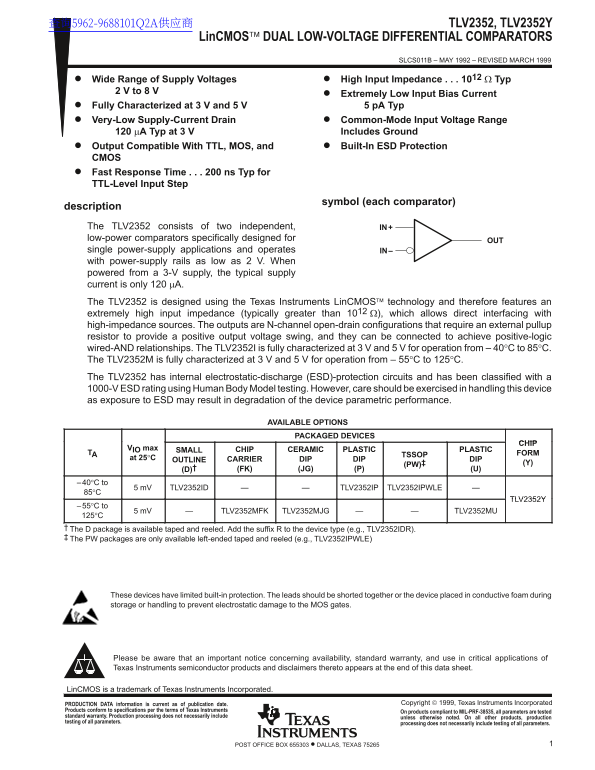

Lin CMOS DUAL LOW-VOLTAGE DIFFERENTIAL COMPARATORS

SLCS011B – MAY 1992 – REVISED MARCH 1999

Wide Range of Supply Voltages High Input Impedance 1012 Ω Typ 2 V to 8 V

Extremely Low Input Bias Current

Fully Characterized at 3 V and 5 V 5 p A Typ Very-Low Supply-Current Drain Common-Mode Input Voltage Range 120 µA Typ at 3 V Includes Ground Output Compatible With TTL, MOS, and Built-In ESD Protection CMOS Fast Response Time 200 ns Typ for TTL-Level Input Step

symbol (each comparator)

description The TLV2352 consists of two independent, IN+ low-power comparators specifically designed for

single power-supply applications and operates IN– with power-supply rails as low as 2 V. When powered from a 3-V supply, the typical supply current is only 120 µA. The TLV2352 is designed using the Texas Instruments Lin CMOS technology and therefore features an extremely high input impedance (typically greater than 1012 Ω), which allows direct interfacing with high-impedance sources. The outputs are N-channel open-drain configurations that require an external pullup resistor to provide a positive output voltage swing, and they can be connected to achieve positive-logic wired-AND relationships. The TLV2352I is fully characterized at 3 V and 5 V for operation from – 40°C to 85°C. The TLV2352M is fully characterized at 3 V and 5 V for operation from – 55°C to 125°C. The TLV2352 has internal electrostatic-discharge (ESD)-protection circuits and has been classified with a 1000-V ESD rating using Human Body Model testing. However, care should be exercised in handling this device as exposure to ESD may result in degradation of the device parametric performance.

AVAILABLE OPTIONS PACKAGED DEVICES

VIO max CHIP CERAMIC PLASTIC PLASTIC

SMALL

TA FORM

TSSOP

at 25°C CARRIER DIP DIP DIP

OUTLINE

(PW)‡ (Y)

(D)† (FK) (JG) (P) (U)

–40°C to

5 m V TLV2352ID TLV2352IP TLV2352IPWLE

TLV2352Y

–55°C to

5 m V TLV2352MFK TLV2352MJG TLV2352MU

125°C The D package is available taped and reeled. Add the suffix R to the device type (e.g., TLV2352IDR). The PW packages are only available left-ended taped and reeled (e.g., TLV2352IPWLE)

These devices have limited built-in protection. The leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

Lin CMOS is a trademark of Texas Instruments Incorporated.
