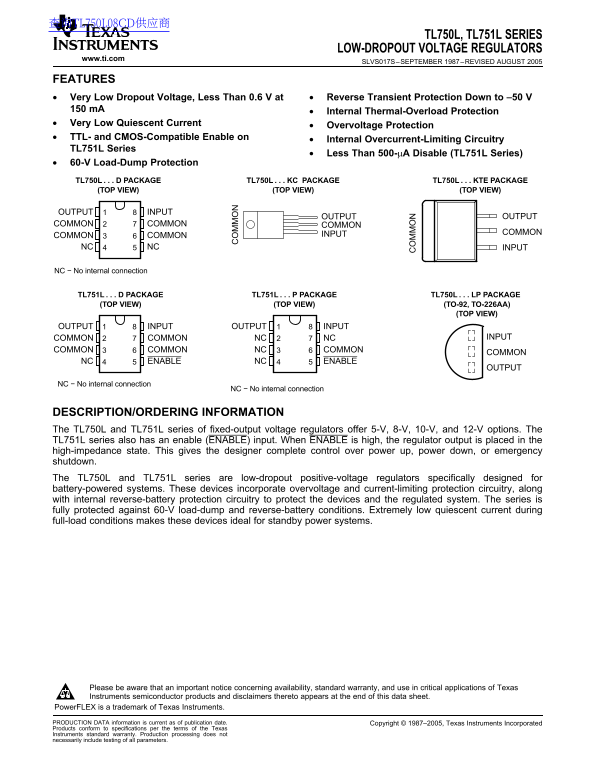

TL750L, TL751L SERIES

LOW-DROPOUT VOLTAGE REGULATORS

www.ti.com

SLVS017S–SEPTEMBER 1987–REVISED AUGUST

FEATURES

Very Low Dropout Voltage, Less Than 0.6 at Reverse Transient Protection Down to –50

Internal Thermal-Overload Protection

Very Low Quiescent Current

Overvoltage Protection

TTL- and CMOS-Compatible Enable on

Internal Overcurrent-Limiting Circuitry

TL751L Series

Less Than 500-µA Disable (TL751L Series)

60-V Load-Dump Protection

TL750L D PACKAGE TL750L KC PACKAGE TL750L KTE PACKAGE (TOP VIEW) (TOP VIEW) (TOP VIEW)

OUTPUT INPUT

OUTPUT OUTPUT

COMMON COMMON COMMON

INPUT COMMON

COMMON COMMON NC NC INPUTC

NC − No internal connection

TL751L D PACKAGE TL751L P PACKAGE TL750L LP PACKAGE (TOP VIEW) (TOP VIEW) (TO-92, TO-226AA)

(TOP VIEW)

OUTPUT INPUT OUTPUT INPUT

COMMON COMMON NC NC INPUT

COMMON COMMON NC COMMON

COMMON

NC ENABLE NC ENABLE

OUTPUT

NC − No internal connection

NC − No internal connection

DESCRIPTION/ORDERING INFORMATION

The TL750L and TL751L series of fixed-output voltage regulators offer 5-V, 8-V, 10-V, and 12-V options. The

TL751L series also has an enable (ENABLE) input. When ENABLE is high, the regulator output is placed in the

high-impedance state. This gives the designer complete control over power up, power down, or emergency

shutdown.

The TL750L and TL751L series are low-dropout positive-voltage regulators specifically designed for

battery-powered systems. These devices incorporate overvoltage and current-limiting protection circuitry, along

with internal reverse-battery protection circuitry to protect the devices and the regulated system. The series is

fully protected against 60-V load-dump and reverse-battery conditions. Extremely low quiescent current during

full-load conditions makes these devices ideal for standby power systems.
