Texas Instruments THS1230 Data Sheet / Manual
Summary
This document details the specifications for the THS1230, a 3.3-V, 12-bit, 30 MSPS CMOS analog-to-digital converter. It covers features like configurable input functions, internal and external voltage references, and power-down modes, designed for applications such as set-top boxes, digital cameras, and communications systems.

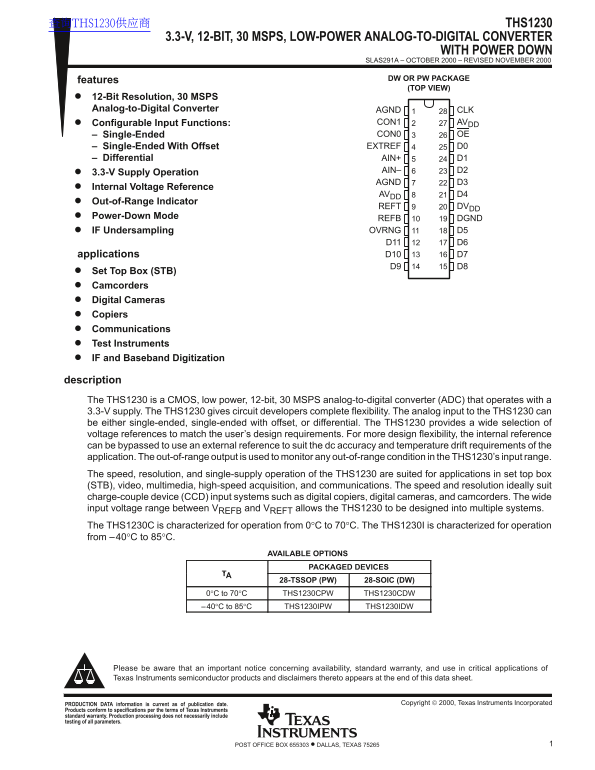

Page 1 Text Content
查询THS1230供应商 THS1230
3.3-V, 12-BIT, 30 MSPS, LOW-POWER ANALOG-TO-DIGITAL CONVERTER
WITH POWER DOWN
SLAS291A – OCTOBER 2000 – REVISED NOVEMBER 2000
features DW OR PW PACKAGE (TOP VIEW)
12-Bit Resolution, 30 MSPS Analog-to-Digital Converter AGND CLK
Configurable Input Functions: CON1 AVDD – Single-Ended CON0 OE
– Single-Ended With Offset EXTREF D0
– Differential AIN+ D1
3.3-V Supply Operation AIN– D2 AGND D3
Internal Voltage Reference
AVDD D4
Out-of-Range Indicator
REFT DVDD
Power-Down Mode
REFB DGND IF Undersampling OVRNG D5 D11 D6 applications D10 D7 D9 D8
Set Top Box (STB) Camcorders Digital Cameras Copiers Communications Test Instruments IF and Baseband Digitization
description The THS1230 is a CMOS, low power, 12-bit, 30 MSPS analog-to-digital converter (ADC) that operates with a 3.3-V supply. The THS1230 gives circuit developers complete flexibility. The analog input to the THS1230 can be either single-ended, single-ended with offset, or differential. The THS1230 provides a wide selection of voltage references to match the user’s design requirements. For more design flexibility, the internal reference can be bypassed to use an external reference to suit the dc accuracy and temperature drift requirements of the application. The out-of-range output is used to monitor any out-of-range condition in the THS1230’s input range. The speed, resolution, and single-supply operation of the THS1230 are suited for applications in set top box (STB), video, multimedia, high-speed acquisition, and communications. The speed and resolution ideally suit charge-couple device (CCD) input systems such as digital copiers, digital cameras, and camcorders. The wide input voltage range between VREFB and VREFT allows the THS1230 to be designed into multiple systems. The THS1230C is characterized for operation from 0°C to 70°C. The THS1230I is characterized for operation from –40°C to 85°C.
AVAILABLE OPTIONS
PACKAGED DEVICES
28-TSSOP (PW) 28-SOIC (DW)
0°C to 70°C THS1230CPW THS1230CDW –40°C to 85°C THS1230IPW THS1230IDW
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
Copyright 2000, Texas Instruments Incorporated PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
1POST OFFICE BOX 655303 • DALLAS, TEXAS 75265
