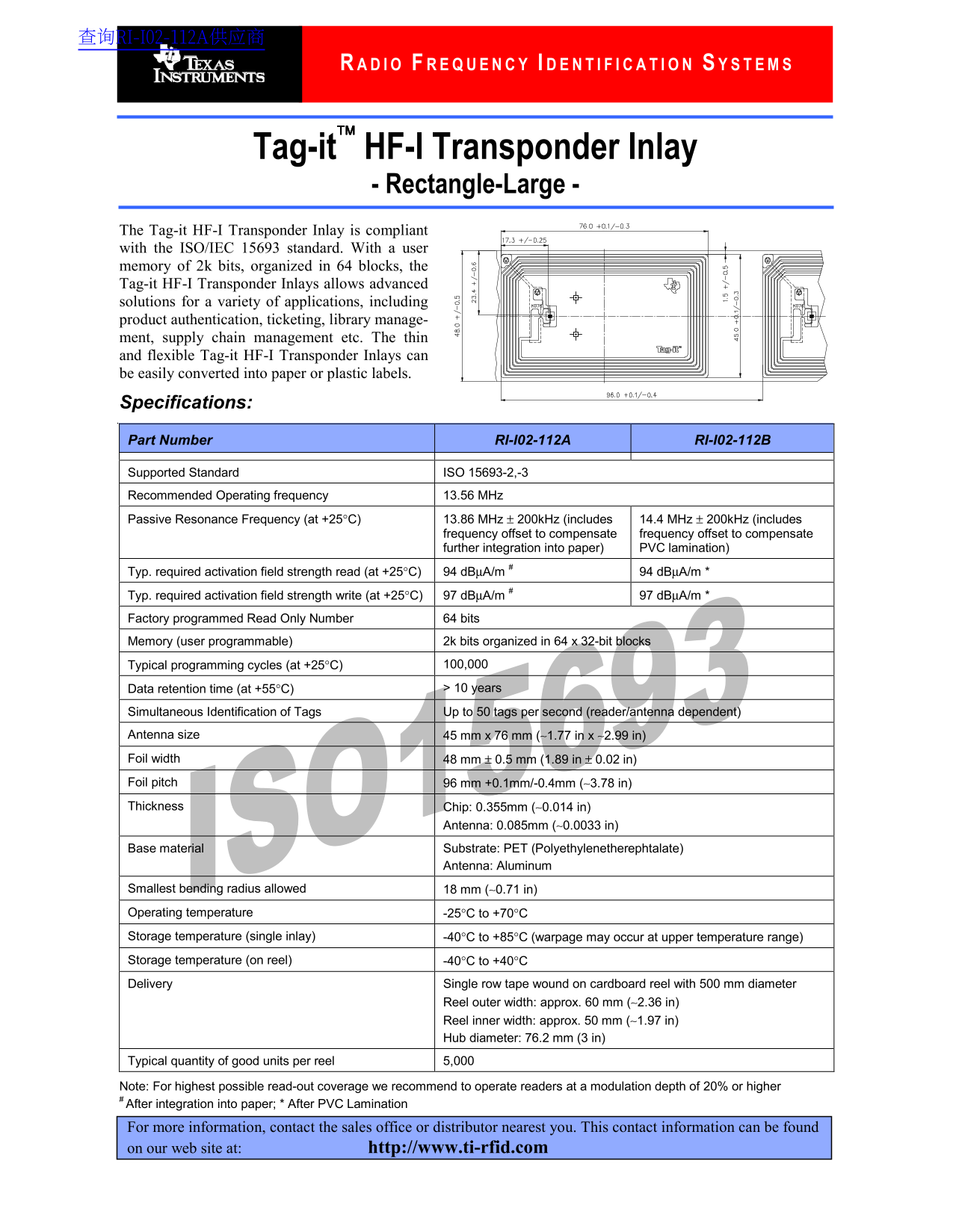

Tag-it
HF-I Transponder Inlay - Rectangle-Large -

The Tag-it HF-I Transponder Inlay is compliant with the ISO/IEC 15693 standard. With a user memory of 2k bits, organized in 64 blocks, the Tag-it HF-I Transponder Inlays allows advanced solutions for a variety of applications, including product authentication, ticketing, library manage- ment, supply chain management etc. The thin and flexible Tag-it HF-I Transponder Inlays can be easily converted into paper or plastic labels.

Specifications: Part Number RI-I02-112A RI-I02-112B Supported Standard ISO 15693-2,-3 Recommended Operating frequency 13.56 MHz Passive Resonance Frequency (at +25°C) 13.86 MHz ± 200k Hz (includes 14.4 MHz ± 200k Hz (includes

frequency offset to compensate frequency offset to compensate further integration into paper) PVC lamination)

Typ. required activation field strength read (at +25°C) 94 d BµA/m # 94 d BµA/m * Typ. required activation field strength write (at +25°C) 97 d BµA/m # 97 d BµA/m * Factory programmed Read Only Number 64 bits Memory (user programmable) 2k bits organized in 64 x 32-bit blocks Typical programming cycles (at +25°C) 100,000 Data retention time (at +55°C) > 10 years Simultaneous Identification of Tags Up to 50 tags per second (reader/antenna dependent) Antenna size 45 mm x 76 mm (∼1.77 in x ∼2.99 in) Foil width 48 mm ± 0.5 mm (1.89 in ± 0.02 in) Foil pitch 96 mm +0.1mm/-0.4mm (∼3.78 in) Thickness Chip: 0.355mm (∼0.014 in)

Antenna: 0.085mm (∼0.0033 in)

Base material Substrate: PET (Polyethylenetherephtalate)

Antenna: Aluminum

Smallest bending radius allowed 18 mm (∼0.71 in) Operating temperature -25°C to +70°C Storage temperature (single inlay) -40°C to +85°C (warpage may occur at upper temperature range) Storage temperature (on reel) -40°C to +40°C Delivery Single row tape wound on cardboard reel with 500 mm diameter

Reel outer width: approx. 60 mm (∼2.36 in) Reel inner width: approx. 50 mm (∼1.97 in) Hub diameter: 76.2 mm (3 in)

Typical quantity of good units per reel 5,000

Note: For highest possible read-out coverage we recommend to operate readers at a modulation depth of 20% or higher # After integration into paper; * After PVC Lamination

For more information, contact the sales office or distributor nearest you. This contact information can be found on our web site at: http://www.ti-rfid.com
