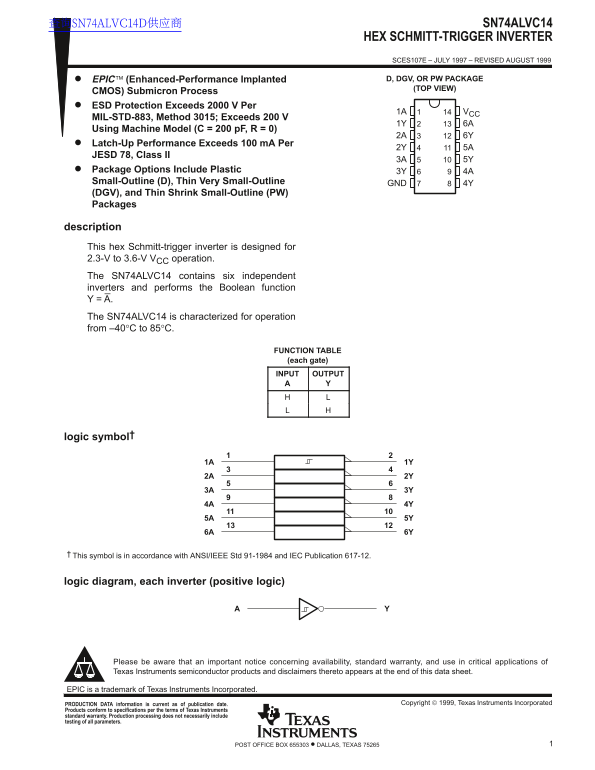

HEX SCHMITT-TRIGGER INVERTER SCES107E – JULY 1997 – REVISED AUGUST 1999 EPIC (Enhanced-Performance Implanted D, DGV, OR PW PACKAGE

(TOP VIEW)

CMOS) Submicron Process ESD Protection Exceeds 2000 V Per

1A VCC

MIL-STD-883, Method 3015; Exceeds 200 V

Using Machine Model (C = 200 p F, R = 0)

Latch-Up Performance Exceeds 100 m A Per

JESD 78, Class II

Package Options Include Plastic 3Y 4A Small-Outline (D), Thin Very Small-Outline GND 4Y (DGV), and Thin Shrink Small-Outline (PW) Packages

description This hex Schmitt-trigger inverter is designed for 2.3-V to 3.6-V VCC operation. The SN74ALVC14 contains six independent inverters and performs the Boolean function Y = A. The SN74ALVC14 is characterized for operation from –40°C to 85°C.

FUNCTION TABLE (each gate) INPUT OUTPUT

logic symbol†

This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.

logic diagram, each inverter (positive logic)
