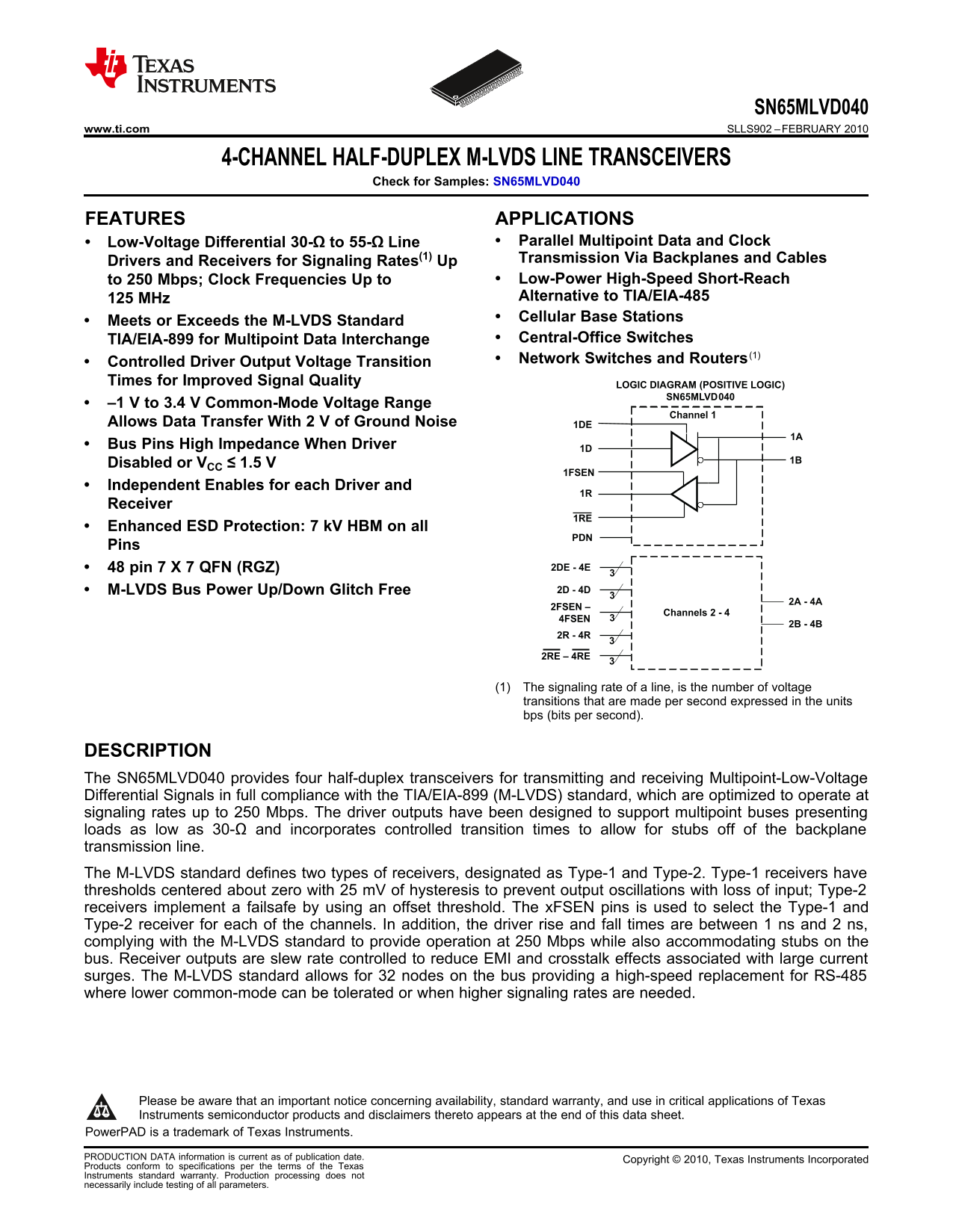

Texas Instruments SN65MLVD040 Data Sheet manual specifications guide
Summary
The SN65MLVD040 is a four-channel, half-duplex transceiver designed for transmitting and receiving high-speed Multipoint Low-Voltage Differential Signals (M-LVDS). These devices provide robust, low-power connections up to 250 Mbps, offering a superior replacement for older data standards like RS-485. This resource details the device's compliance with the TIA/EIA-899 standard, advanced signal integrity features, and independent channel control. It is ideal for engineers working on network switches, central office switches, cellular base stations, and any digital infrastructure requiring reliable, high-speed bus connectivity.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 29 |
| File Size | 828.37 KB |
| Published | July 12, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the maximum signaling rate supported by this transceiver?
It is optimized to operate at signaling rates up to 250 Mbps.
What precautions should be taken when storing or handling the device?
The leads must be shorted together or placed in conductive foam during storage to prevent electrostatic damage.
How can I configure the receiver type (Type-1 or Type-2) for each channel?
Use the FSEN pin: L selects a Type-1 receiver, and H selects a Type-2 receiver.
What standards does this device comply with regarding signaling?
It provides full compliance with the TIA/EIA-899 (M-LVDS) standard.
