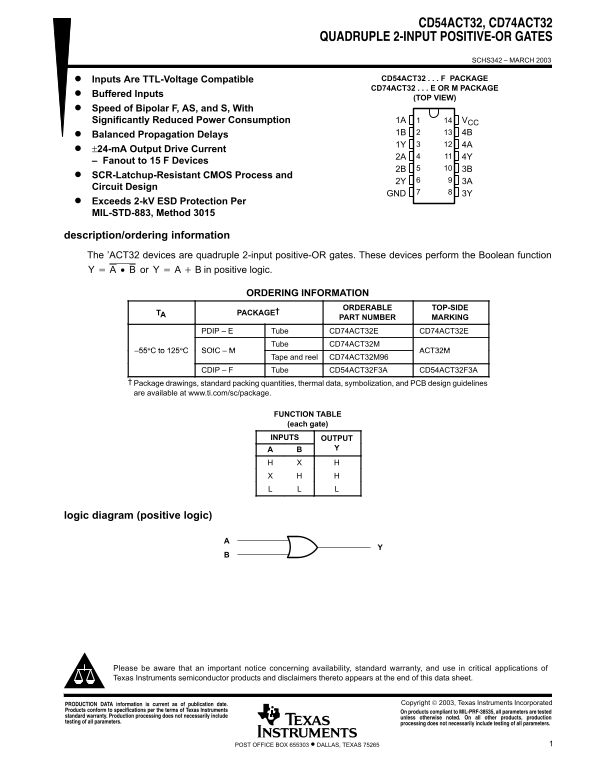

Texas Instruments CD54ACT32, CD74ACT32 Data Handbook/Specifications Sheet

CD54ACT32, CD74ACT32

QUADRUPLE 2-INPUT POSITIVE-OR GATES

SCHS342 – MARCH 2003

Inputs Are TTL-Voltage Compatible CD54ACT32 F PACKAGE CD74ACT32 E OR M PACKAGE

Buffered Inputs

(TOP VIEW)

Speed of Bipolar F, AS, and S, With

Significantly Reduced Power Consumption 1A VCC

Balanced Propagation Delays 1B 4B 1Y 4A

±24-m A Output Drive Current

– Fanout to 15 F Devices

SCR-Latchup-Resistant CMOS Process and

Circuit Design

GND 3Y

Exceeds 2-k V ESD Protection Per MIL-STD-883, Method 3015

description/ordering information The ’ACT32 devices are quadruple 2-input positive-OR gates. These devices perform the Boolean function

or B in positive logic.

ORDERING INFORMATION

ORDERABLE TOP-SIDE

TA PACKAGE†

PART NUMBER MARKING

PDIP – E Tube CD74ACT32E CD74ACT32E

Tube CD74ACT32M

55°C to 125°C SOIC ACT32M–

Tape and reel CD74ACT32M96

CDIP – F Tube CD54ACT32F3A CD54ACT32F3A

Package drawings, standard packing quantities, thermal data, symbolization, and PCB design guidelines are available at www.ti.com/sc/package.

FUNCTION TABLE (each gate) INPUTS OUTPUT

logic diagram (positive logic)
